GE Color Effects 73017 Manual

IMPORTANT SAFETY INSTRUCTIONS

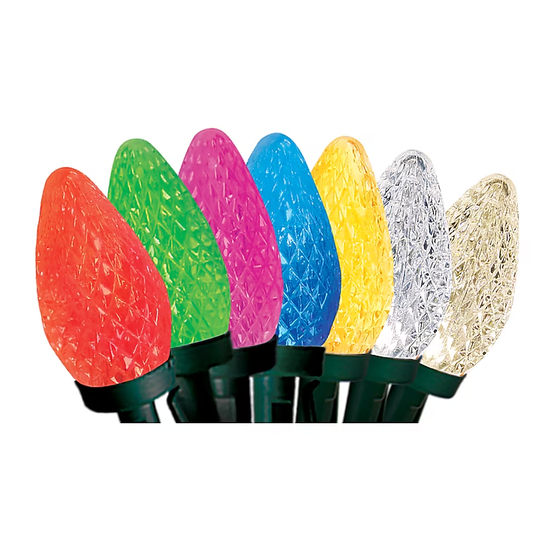

LED 50L C9 lights color changing light show
NHL Model No. 73017LO UL MODEL NO. LEDE9-C9-50(0.3)
When using electrical products, basic precautions should always
be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION:
• To reduce the risk of fire and electric shock:
a) Do not install on trees having needles, leaves or branch coverings
of metal or materials which look like metal, and
b) Do not mount or support strings in a manner that can cut or
damage wire insulation.
USE AND CARE INSTRUCTIONS
• When the product is placed on a live tree, the tree should be well maintained and
fresh. Do not place on live trees in which the needles are brown or break off easily.
Keep the tree holder filled with water.
• If the product is placed on a tree, the tree should be well secured and stable.
• Before using, or reusing, inspect product carefully. Discard any products
that have cut, damaged or frayed wire insulation or cords, cracks in the
lampholders or enclosures, loose connections, or exposed copper wire.
When storing the product, carefully remove the product from wherever
•
it is placed, including trees, branches, or bushes, to avoid any undue
strain or stress on the product conductors, connections and wires.
• When not in use, store neatly in a cool, dry location protected from sunlight.
USER SERVICING INSTRUCTIONS:
SAFETY PLUG WITH REPLACEABLE FUSE:
Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that
should not be removed. Discard product if the attachment plug is damaged.
1. Always unplug product from the receptacle or other outlet device before installing or
replacing fuse.
2. Firmly grasp plug to unplug. Do not unplug by pulling on cord.
3. Open fuse cover. Side open fuse access cover on top of
attachment plug. towards the blades.
4. Remove fuses carefully by turning plug over.
5. Risk of fire. Replace fuse only with 3 Amp, 125 Volt fuse (provided with product).
6. Side closed the fuse access cover on top of plug.
To replace lamp:
The LED cover is designed to fit tightly on the
lampholder. To remove, turn the cover counterclockwise.
After replacing the LED, clockwise the cover to ensure
a secure fit.
1.Grasp plug and remove from the receptacle or other
outlet device. Do not unplug by pulling on cord.
FIG.1
2.Pull lamp and plastic base straight out of lampholder.
3.Replace lamp with only 3.3 Volt, 0.066 Watt, LED
type lamp(provided with product).
Operate the Remote:
1. Pull out the plastic film from the battery cover to energize the remote. {Fig. 1}
2. The remote has 10 buttons {Fig. 2}
a. Power Switch – Turn set ON/OFF
b. FUNCTION – Press to change the light pattern.
• This is an electrical product - not a toy! To avoid the risk of fire, burns, personal injury and electric
shock it should not be played with or placed where small children can reach it.
• Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. When
products are used in outdoor applications, connect the product to a Ground Fault Circuit
Interrupting (GFCI) outlet. If one is not provided, contact a qualified electrician for proper
installation.
• Do not use this product for other than its intended use.
• This seasonal use product is not intended for permanent use or installation.
• Unplug when leaving the house, when retiring for the night, or if left unattended.
• Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of
heat.
• Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
• Do not hang ornaments or other objects from cord, wire, or light string.
• Do not place lighting string on carpeting, drapes, furniture, or allow it to contact vinyl siding while
the power is on.
• Do not perform any maintenance or troubleshoot for bad or broken lamps while the power is on.
NOTE: Choose function then color.
3. The effective operating distance of the remote is 33'(10m)
Battery system (Lithium) Nominal Voltage: 3.0V ×1 Battery included
• Replace only with lithium, type CR2032 battery.
WARNING:
*.INGESTION HAZARD: This product contains a button cell or coin battery.
*.DEATH or senous injury can occur if ingested.
*.A swallowed button cell or coin battery can cause Internal Chemical
Burns in as lile as 2 hours
*.KEEP new and used batteries OUT OF REACH of CHILDREN
*.Seek immediate medical attention if a battery is suspected to be
swallowed or inserted inside any part of the body.
*.This symbol marked on the product indicates"Warning:contains coin battery".
KEEP AWAY FROM CHILDREN
Battery Manufacturer Name: Shenzhen LIDEA Battery Co., Ltd.
Battery Manufacture Year / Month: 2024 / April
a) Remove and immediately recycle or dispose of used batteries according to local regulations and keep away
from children. Do NOT dispose of batteries in household trash or incinerate."
b) "Even used batteries may cause severe injury or death."
c) "Call a local poison control center for treatment information."
d) Use only CR2032
e) 3 voltage.
f) "Non-rechargeable batteries are not to be recharged."
g) "Do not force discharge, recharge, disassemble, heat above (manufacturer's specified temperature rating 60°C)
or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns."
*."Ensure the batteries are installed correctly according to polarity (+ and -)."
FIG.2 *."Do not mix old and new batteries, different brands or types of batteries, such as alkaline,
carbon-zinc, or rechargeable batteries."
*."Remove and immediately recycle or dispose of batteries from equipment not used for an extended
period of time according to local regulations."
*."Always completely secure the battery compartment. If the battery compartment does not close
securely, stop using the product, remove the batteries, and keep them away from children."
Fig.2
• Do not close doors or windows on the product or extension cords as this may
damage the wire insulation.
• Do not cover the product with cloth, paper or any material not part of the product
when in use.
• This product is equipped with non- shunted type LED lamps. Do not twist or
attempt to remove lamps.
• This product employs overload protection (fuse). A blown fuse indicates an overload or short
–circuit situation. If the fuse blows, unplug the product from the outlet. Also unplug any
additional strings or products that may be attached to the product, Replace the fuse as per
the user servicing instructions (follow product marking for proper fuse rating) and check the
product. If the replacement fuse blows, a short-circuit may be present and the product
should be discarded.
• Do not let lamps rest on the supply cord or on any wire.
• Read and follow all instructions that are on the product or provided with the product.
SAVE THESE INSTRUCTIONS
CAUTION:
1. This lighting string is rated 36 Watts ( 0.3 Amps), do not overload.
Connect other lighting strings or decorative outfits end-to-end up to a maximum of 216 Watts (1.8 Amps) total. If
connecting to a Lighting String that does not have a Wattage (W) rating, on the cord tag within 6 inches of the plug,
calculate the wattage as follows: Multiply the current (A), which is also on that cord tag, by 120.
For example: The Lighting String is rated 120V, 60Hz, 0.2Amps. 0.2x 120 = 24Watts.
Add the wattage of each light string together for a total of 216 Watts or less. (Do not exceed 216 Watts.)
2. To reduce the risk of overheating, a) replace burned out lamps promptly. Use 3.3 Volt, 0.066 Watt
LED lamps provided with this product .b) Risk of fire .This product does not contain lamp shunts in
order to allow the product to operate if one lamp burns out. Do not replace lamps with other than
the spare lamps provided with this product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Warning:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
＊ Reorient or relocate the receiving antenna.
＊ Increase the separation between the equipment and the receiver.
＊ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
＊ Consult the dealer or an experienced radio/TV technician for help.
For questions and/or assistance, call customer service at 1-877-398-7337 or visit us on the web at
www.GEholidaylighting.com
FOR INDOOR AND OUTDOOR USE
PRINTED IN CHINA
Nicolas Holiday Ltd., 246 Spring Hill Road, Unit B, Trumbull CT 06611
©2024 Nicolas Holiday Ltd., Suite 2706 Skyline Tower,39 Wang Kwong Road,Kowloon Bay,Kowloon,Hong Kong
All rights reserved.
MADE IN CHINA
E246482 HC-24
