CLEARANCE AND DIMENSIONS
Clearance: All units require a minimum clearance of two 2" (51 mm) between all sides of the housing
and any surface or obstacle. If the unit is being placed near a grill or stove, a divider must exist be-
tween the unit and the open heat source, with a minimum of 6" (153 mm) between the unit and the
divider. If the unit is placed near a fryer, a divider must exist between the unit and fryer, with a
minimum of 12" (305 mm) between the unit and the divider. All drop-in units require a minimum
clearance of open space below the unit of 6" (152 mm). The space must have openings allowing for
the flow of cool air (ambient temperature not to exceed 50˚C/122˚F) to the cooktop housing intake
vents. If either the air intake or exhaust outlet is blocked, the internal temperature will rise, causing an
error code to occur.
NOTE: The 6" (152 mm) can be reduced if additional fans and ducting are added to provide forced
ventilation.

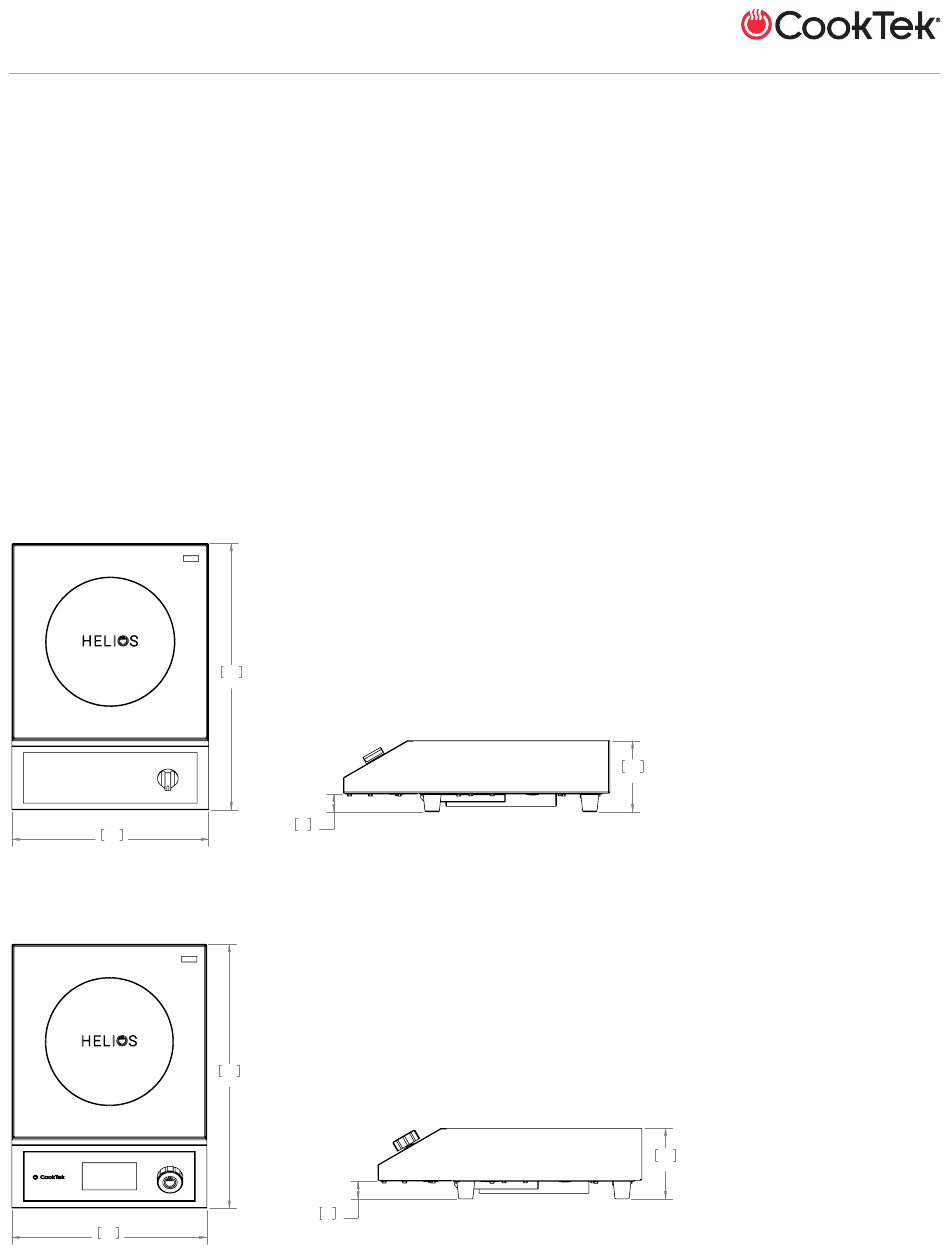

Freestanding Single Hob, Helios Standard: HRF-9500-SH18-1, HRF-9500-SH25-1, HRF-9500-SH35-1
470
18.5
125
4.9
31
347 1.2
13.7
Freestanding Single Hob, Helios Touch: HTF-9500-SH18-1, HTF-9500-SH25-1, HTF-9500-SH35-1
470
18.5
125
4.9
31
1.2
347
16
13.7
