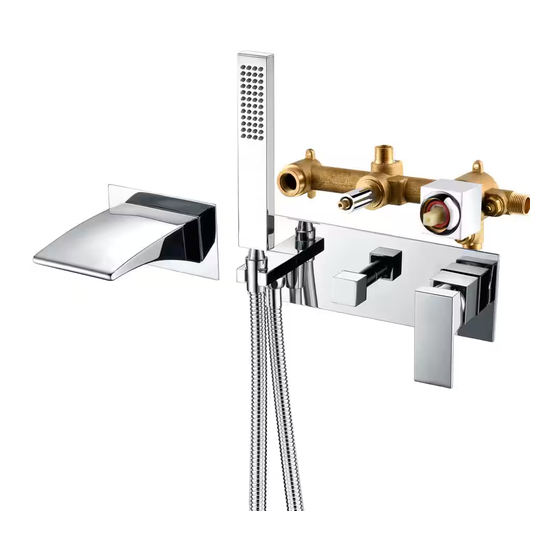

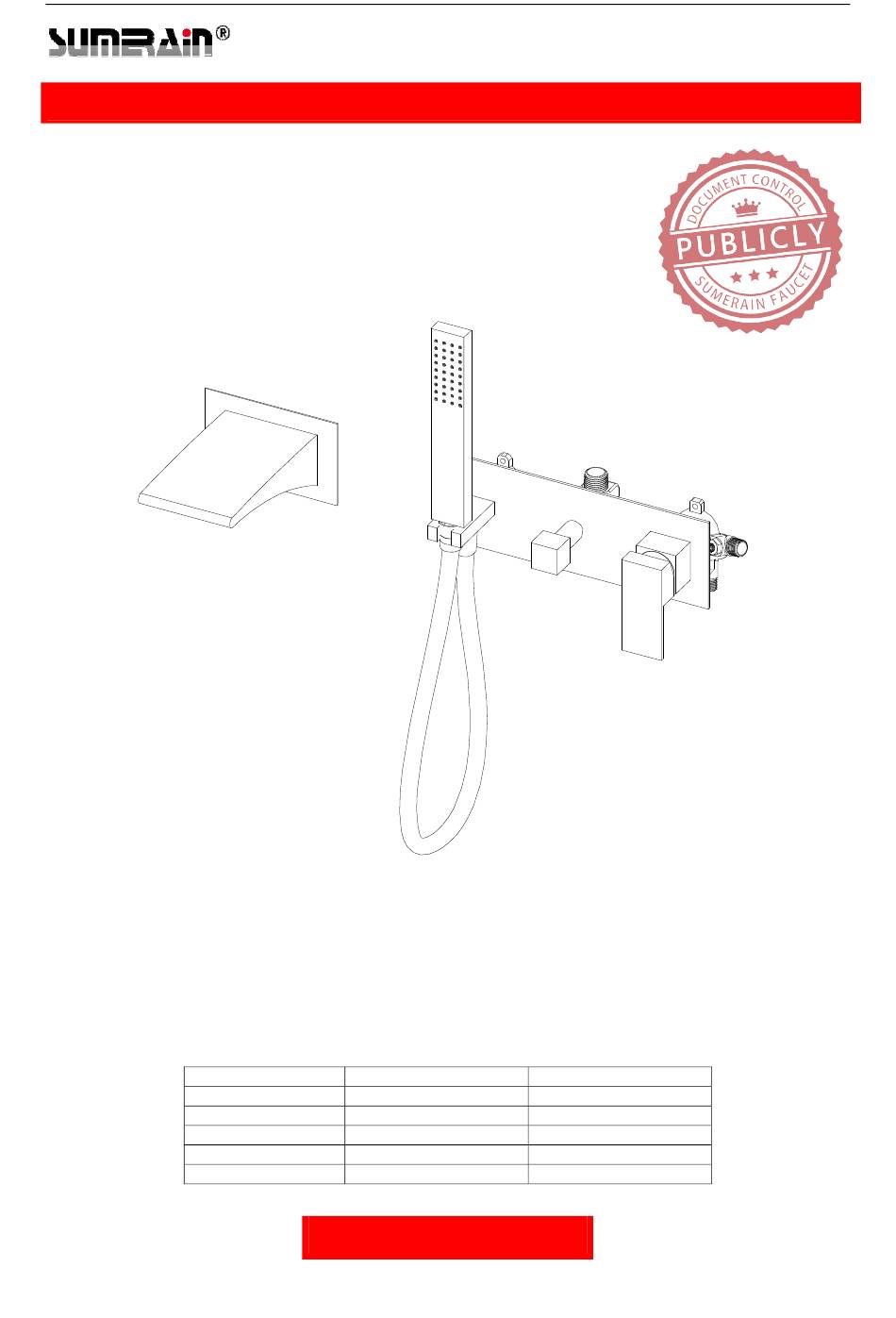

- Page 1 Version: 3.2 INSTALLATION GUIDE WALLMOUNT WATERFALL TUB FAUCET MODEL（OLD） MODEL（NEW） FINISH S2121CW-B S2121WB-CH CHROME S2121NW-B S2121WB-BN BRUSHED NICEKL S2121OW-B S2121WB-OB Oil Rubbed Bronze S2121DW-B S2121WB-MB Matte Black S2121BGW-B S2121WB-BG Brushed Gold HOT LINE: +1-866-203-0866...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
If a defect is found in normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate adjustment. - Page 4 FUNCTIONS AND SPECIFICATION Tub faucet Faucet type Feature Waterfall Theme Modern, Contemporary Wall mounted Mounting type Finish Chrome/Brushed nickel/Matte Black/Brushed Gold/Oil Rubbed Bronze Number of Handles Handles Material Metal Handle style Lever and knob Escutcheon included Escutcheon Width 105mm [ 4-1/8 Inch] Escutcheon Length 305mm [ 12 Inch] Pressure Balance...
- Page 5 DEMENSION FRONT VIEW OF FAUCET LEFT VIEW OF FAUCET...
- Page 6 TOP VIEW OF FAUCET...
-
Page 7: Installation Steps
PSC05050XX Set screw SUS304 Spout adapter HPB59-1 PCN13640PB PH32180XX Handle(lever) Zn Alloy No.3 Rubber washer PRW18020XX PSA00003XX Allen wrench(Φ2.5mm) Fe45# Spout shank HPB59-1 PNT12480PB If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... -
Page 8: Installation
4. PLANNING AND INSTALLATION INSTRUCTIONS Attentions: The faucet has to be installed, rinsed and checked in compliance with the applicable regulations in order to guarantee proper shower function! Operating pressure at the control valve: Max. 1Mpa. Recommended operating pressure: 3 bar pressure. Hot water temperature: Max 60 degree centigrade (140 Fahrenheit). - Page 9 5.3 Apply Teflon tape on the thread of nipple and then connect to mixer valve outlet.
- Page 10 5.4 Secure the rough-in valve assembly to the mounting rack with screws. horizontal 5.5 Apply Teflon tape on the thread of rough-in valve’s cold and hot water supply inlets and then connect to water supply system. North America Connector standard: NPT 1/2-14 Europe and Others Connector standard: BSPP 1/2 [ G1/2 ]...
- Page 11 Turn on hot and cold water supply and check all connection for leaks Please shut off your hot and cold water supply again if no leaking. 5.6 Install the feed pipe for spout with elbow. Rough-in Valve Connecting thread for mixer water outlet: North America Connector standard: NPT 1/2-14 Europe and Others Connector standard: G1/2 6.
- Page 12 6.2 Pressure testing & flushing the installation. Before testing, remove plaster guard cover. Plug outlets with proper fittings. Check for leaks. After testing, remove shower’s plug and flush system again. After flushing reinstall the cover. Set the pressure reducing valve to full open. Note: With a flat head screwdriver, adjust stem clockwise to close and anticlockwise to open.
- Page 13 Open 6.3 Apply Teflon tape on the thread of nipple and then connect to elbow.
- Page 14 6.4 Done the finish wall. 6.5 Remove the plastic guard.
- Page 15 6.6 Take off the escutcheon and the temperature limit ring from the valve assembly. Temperature limit ring Escutcheon 6.7 Turn on and adjust the cartridge to achieve desired shower water’s maximum temperature. Anti-scald protection. It is important that the mixer valve is tested regularly to prevent the risk of scalding and guarantee user safety.
- Page 16 6.9 Attach the escutcheon over the valve body and seal the wall around the plaster shield with waterproof sealant WARNING: Failure to seal the wall can lead to possible water damage. 6.10 Place handle onto the valve stem and tighten set screws by using the Allen wrench that is provided. (Please don’t over tighten), Then attach the screw cover onto handle.
- Page 17 6.11 Place Knob onto the diverter valve stem and tighten set screws by using the Allen wrench that is provided. 6.12 Attach shower holder onto the nipple and tighten set screws by the Allen wrench that is provided.
- Page 18 6.13 Attach the spout adapter onto the supply nipple by the Allen wrench. 6.14 Secure the spout to spout adapter with set screw by Allen key.
-
Page 19: Function Inspection
6.15 Connect the hand shower to shower holder with shower hose.. ASSEMBLE FINISHED 7. INSPECTION 7.1 Turn on hot and cold water supply and check all connection for ensuring no leaking anywhere. 8. FUNCTION INSPECTION 8.1 Turn on the handle, the water outflow from the spout and then turn off the handle, the water stop out flowing. - Page 20 8.2 Switch the diverter Knob, the water will rush from the hand shower. INSTALL FINISH...
- Page 21 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG Factory Address: Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,...
