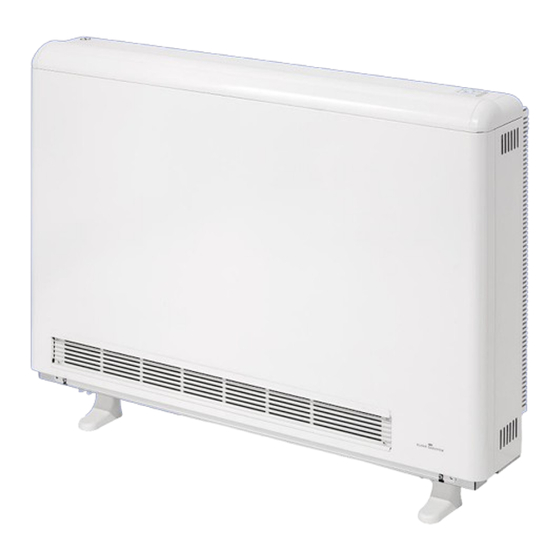

- Page 1 USER OPERATING INSTRUCTIONS HIGH HEAT RETENTION STORAGE HEATER VALID FOR PV INSTALLATIONS WITH PHOTOVOLTAIC SURPLUS PRODUCTION SOLAR HHR MODELS SOLARHHR10 SOLARHHR20 SOLARHHR30 SOLARHHR40 Please read these instructions carefully before installing or using this appliance for the first time.
- Page 2 1. –IMPORTANT INFORMATION When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least a foot (30cm) from the front, sides and rear of the heater.
-
Page 3: General Information
CONNECTION / DISCONNECTION Power switch. All models are equipped with a switch on the back side panel. It is used to connect and disconnect SOLAR HHR. KEYBOARD: Keep pressed the button to access the advanced configuration. Press this button to go back in the different menus. - Page 4 7 days a week. With the help of the start wizard, you will set your Solar HHR storage heater for an autonomous operation. It will charge and store the heat during the charging hours set in c.. Charging Periods and it will adjust the charge level and consumption according to the temperature programme of your choice.
- Page 5 Register the G Control Hub included in the Solar Box using your user account. Then link also the power meters included in the Solar Box if you still have not. e. Link the SOLAR HHR storage heaters to the G Control Hub using the app. (See point 4. Remote Operation using the G-Control Hub for more detail).
-
Page 6: Advanced Settings
Solar Alone. SOLAR HHR will only consume and store energy when there are photovoltaic surpluses. Solar and Off-peak. SOLAR HHR will charge and store energy whenever there is surplus. In addition, it will also charge during the Off-peak period. You can set the off-peak maximum charge (%) using the corresponding option. -
Page 7: Date And Time
The SOLAR HHR automatically changes the time from wintertime to summertime and vice-versa, even if it is not connected to the G Control hub, provided that the Automatic Time Change parameter is activated. (Activated by factory setting). -
Page 8: Programme Settings
3.3. Programme Settings This menu will only be accessible when the device is operating in the operating mode Weekly Programme. In this menu, you can change the comfort, eco and frost protection temperatures and select or change the existing weekly programming. To do this, access the advanced settings menu by pressing for 5 seconds and then go into the “Programme settings”... - Page 9 Programme 2. Work M-F Monday to Friday: • 00:00 - 07:00 Eco ( • 07:00 - 08:00 Comfort ( ) • 08:00 - 17:00 Eco ( • 17:00 - 22:00 Comfort ( ) • 22:00 - 00:00 Eco ( Saturdays and Sundays: •...
-
Page 10: Initial Charge
3.4.2 Charging days in the week It is possible to select the days of the week on which the SOLAR HHR heater will charge and those on which it will not. Access the “Charging Days” menu and select the days on which you want the storage heater to charge. -
Page 11: General Settings
3.5. Advanced settings With the advanced settings menu, you can change general settings in the device, as well as its advanced operating settings. To access the advanced settings menu, press for 5 seconds and then select the “Advanced” menu. The Advanced Settings menu comprises the following parts: •... -
Page 12: Default Values
CONTROL TYPE: Select the temperature control type. A PID device with default settings programmed is recommended. OPEN WINDOW DETECTION: Activates open windows detection function (On/Off). INTELLIGENT START-UP: Activates adaptable start-up function (On/Off). COMPENSATION: Correction of room sensor temperature (Values from -5ºC to 5ºC). 3.5.3 Reset and default factory settings You can reset the unit and restore factory setting configuration. -
Page 13: Troubleshooting
4.- REMOTE OPERATION USING THE G-CONTROL HUB It is possible to control the full operation of the unit remotely with the Elnur Gabarron Wifi Control app or the app-web (https://remotecontrol.elnur.es). The unit must be connected to a G-Control Hub connected to the internet to use this feature. -
Page 14: Cleaning Maintenance Instructions
Any other servicing should be performed by an authorized technician. SOLAR HHR has been manufactured under a fully assured quality system and using environmentally friendly processes. Once its useful life is finished please take the device to a recycling depot so that its components can be recycled in an appropriate way. - Page 15 User Operating Notes WARNING: In order to avoid overheating do not cover the heater. The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
- Page 16 ELNUR UK Ltd. Unit 1, Brown Street North Leigh, Lancashire. WN7 1BU Telephone: +44(0)1942 670119 www.elnur.co.uk info@elnur.co.uk 15190025 R4 As a part of the policy of continuous product improvement Elnur UK Ltd. reserves the right to alter specifications without notice.
