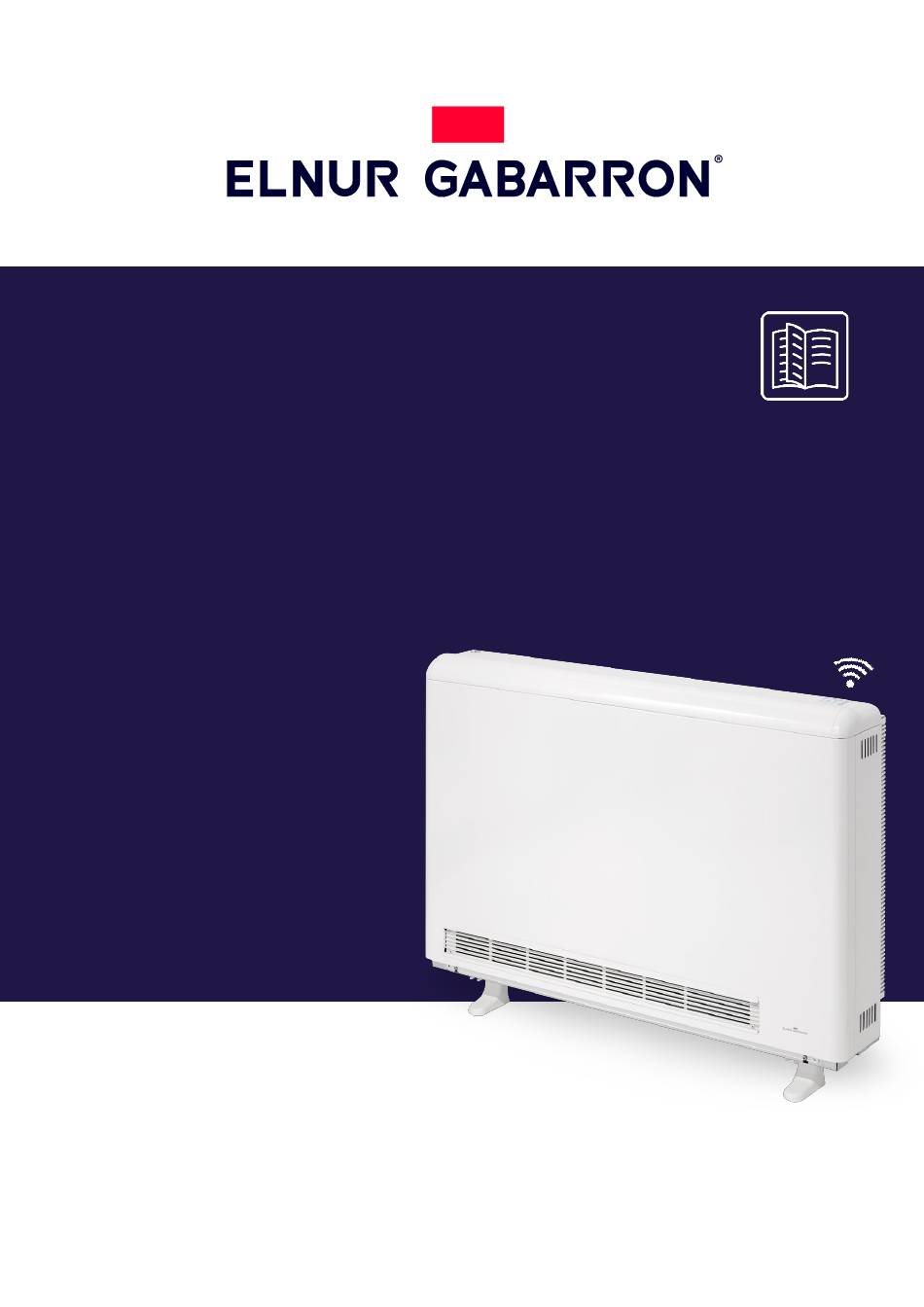

- Page 1 USER OPERATING INSTRUCTIONS HIGH HEAT RETENTION STORAGE HEATER VALID FOR PV INSTALLATIONS WITH PHOTOVOLTAIC SURPLUS PRODUCTION SOLAR HHR MODELS SOLARHHR20 SOLARHHR30 SOLARHHR40 Please read these instructions carefully before installing or using this appliance for the first time.
- Page 2 1. –IMPORTANT INFORMATION When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least a foot (30cm) from the front, sides and rear of the heater.
-
Page 3: General Information
2. - OPERATING INSTRUCTIONS 2.1. General information CAUTION: DO NOT USE THIS HEATER TO DRY CLOTHES. Do not cover this heater at any time. CONNECTION / DISCONNECTION Power switch. All models are equipped with a switch on the back side panel. It is used to connect and disconnect SOLAR HHR. KEYBOARD: Keep pressed the button to access the advanced configuration. - Page 4 2.2. Commissioning An easy installation wizard is programmed in Solar HHR electronic control. Follow the start wizard instructions when turning your SOLAR HHR on for the first time or after resetting it to the factory settings. START WIZARD - INITIAL SETTINGS. The Solar HHR electronic control will guide you through the commissioning of the unit.
-
Page 5: Activation And Setting
Installation and setting of the control hub and power meters included in the Solar Box. Please follow the instructions included within. b. Download from your market app the Elnur Gabarron Wifi Control app, available for IOS & Android. c. Create your user account in the app if you still do not have one. -
Page 6: Advanced Settings
Solar Energy settings. Surplus Utilization When switching on the Solar Energy function, the setting options will be automatically displayed. Set them according to your needs. These are the setting options available: Charge settings: Solar Alone. SOLAR HHR will only consume and store energy when there are photovoltaic surpluses. Solar and Off-peak. -
Page 7: Date And Time
ADJUST SETPOINT TEMPERATURE Weekly programme: The setpoint temperature varies in accordance with the weekly programme set in the unit. 3 temperature levels (Comfort, Eco and Frost Protection) can be selected for each time interval (1 hour) in order to adjust the temperature of the room to the habits and needs of the different users. -
Page 8: Programme Settings
3.3. Programme Settings This menu will only be accessible when the device is operating in the operating mode Weekly Programme. In this menu, you can change the comfort, eco and frost protection temperatures and select or change the existing weekly programming. To do this, access the advanced settings menu by pressing for 5 seconds and then go into the “Programme settings”... - Page 9 Programme 2. Work M-F Monday to Friday: • 00:00 - 07:00 Eco ( • 07:00 - 08:00 Comfort ( ) • 08:00 - 17:00 Eco ( • 17:00 - 22:00 Comfort ( ) • 22:00 - 00:00 Eco ( Saturdays and Sundays: •...
-
Page 10: Initial Charge
If you want this setting to be stored as a preset programme, select “Save” in the next screen. Press and a new preset programme will be generated with the name USER, which you can see and select at any time in the “Preset Programmes”... -
Page 11: General Settings
3.5. Advanced settings With the advanced settings menu, you can change general settings in the device, as well as its advanced operating settings. To access the advanced settings menu, press for 5 seconds and then select the “Advanced” menu. The Advanced Settings menu comprises the following parts: •... -
Page 12: Default Values
CONTROL TYPE: Select the temperature control type. A PID device with default settings programmed is recommended. OPEN WINDOW DETECTION: Activates open windows detection function (On/Off). INTELLIGENT START-UP: Activates adaptable start-up function (On/Off). COMPENSATION: Correction of room sensor temperature (Values from -5ºC to 5ºC). 3.5.3 Reset and default factory settings You can reset the unit and restore factory setting configuration. -
Page 13: Troubleshooting
4.- REMOTE OPERATION USING THE G-CONTROL HUB It is possible to control the full operation of the unit remotely with the Elnur Gabarron Wifi Control app or the app-web (https://remotecontrol.elnur.es). The unit must be connected to a G-Control Hub connected to the internet to use this feature. -
Page 14: Cleaning Maintenance Instructions
7.- MAIN COMPONENTS LIST Storage Heating Element Ref. 10190410 Power PCB & Fixing Bracket Ref. 15192670 250W Balancing Heating Element (SOLARHHR20) Ref. 15192000 Keyboard PCB SOLARHHR Ref. 15192665 375W Balancing Heating Element (SOLARHHR30) Ref. 15192002 Room Sensor Ref. - Page 15 User Operating Notes WARNING: In order to avoid overheating do not cover the heater. The symbol on the product or in its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
- Page 16 ELNUR UK Ltd. Unit 1, Brown Street North Leigh, Lancashire. WN7 1BU Telephone: +44(0)1942 670119 www.elnur.co.uk info@elnur.co.uk 15190025 R1 As a part of the policy of continuous product improvement Elnur UK Ltd. reserves the right to alter specifications without notice.
