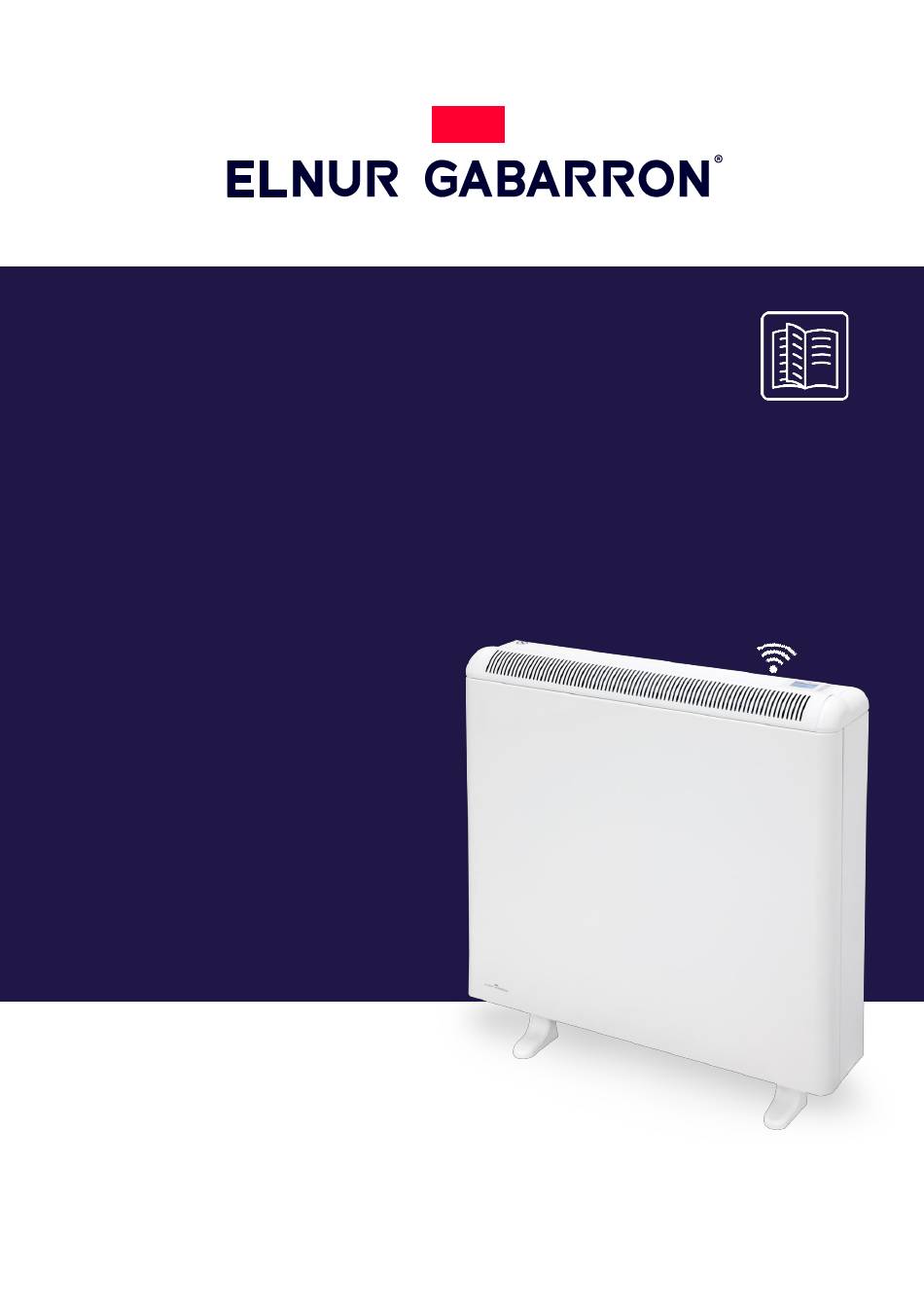

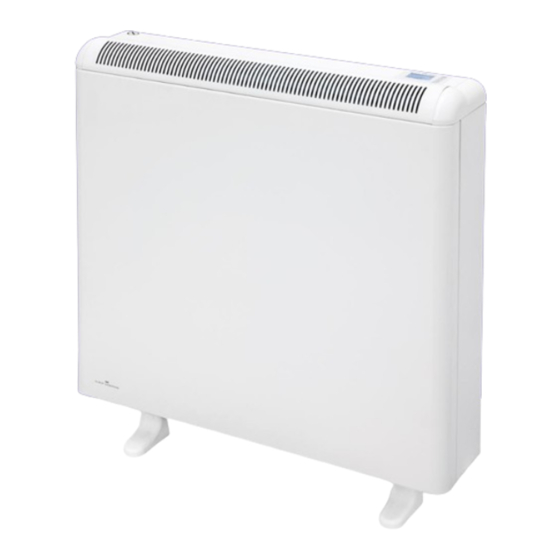

- Page 1 USER OPERATING INSTRUCTIONS SMART STORAGE HEATER ECOMBI PROSSH MODELS PROSSH158 PROSSH208 PROSSH308 PROSSH408 Please read these instructions carefully before installing or using this appliance for the first time.
-
Page 2: Table Of Contents
INDEX 1. –IMPORTANT INFORMATION ........................... 2 2. - OPERATING INSTRUCTIONS ..........................3 2.1. General information ..............................3 2.2. Commissioning ................................4 3.- ADVANCED SETTINGS ............................... 5 3.1. Operating mode ................................. 5 3.2. Date and time ................................6 3.3. Programme Settings ..............................6 3.4. -
Page 3: Important Information
1. –IMPORTANT INFORMATION When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least a foot (30cm) from the front, sides and rear of the heater. -
Page 4: Operating Instructions
CONNECTION / DISCONNECTION Power switch. All models are equipped with a switch on the back side panel. It is used to connect and disconnect ECOMBI PROSSH. KEYBOARD: Keep pressed the button to access the advanced configuration. Press this button to go back in the different menus. -
Page 5: Commissioning
By default, ECOMBI PROSSH is set to an 7 hours charging period, from 00:00 to 07:00 hours. If this charging time matches your electricity low tariff hours, you do not need to make any changes in the unit configuration. Otherwise, you can change charging Periods 1 and 2 to match your electricity tariff. -
Page 6: Advanced Settings
3.- ADVANCED SETTINGS With the general settings menu, you can make additional changes and adjustments in device start-up and operation. To access the settings menu of the device, press and hold the button for 5 seconds in the home screen of any operating mode of the device with the screen lit. -
Page 7: Date And Time
The ECOMBI PROSSH automatically changes the time from wintertime to summertime and vice-versa, even if it is not connected to the G Control hub, provided that the Automatic Time Change parameter is activated. (Activated by factory setting). - Page 8 3.3.2. Weekly Programme. Programme Settings. In the “Weekly Programme” menu you can select from one of the 3 predefined programmes or you can edit the existing programme from the “Weekly Programme” menu in order to set a customised programme. 3.3.2.1. PREDEFINED PROGRAMMES In this section you have the option of selecting one of the 3 operating programmes preset in the device.
- Page 9 USER, which you can see and select at any time in the “Preset Programmes” menu. ECOMBI PROSSH will not charge at intervals set to Frost Protection . It is recommended to reserve this temperature level solely...
-
Page 10: Charge Setting
3.4.2 Charging days in the week It is possible to select the days of the week on which the ECOMBI PROSSH heater will charge and those on which it will not. Access the “Charging Days” menu and select the days on which you want the storage heater to charge. -
Page 11: Advanced Settings
3.5. Advanced settings With the advanced settings menu, you can change general settings in the device, as well as its advanced operating settings. To access the advanced settings menu, press for 5 seconds and then select the “Advanced” menu. The Advanced Settings menu comprises the following parts: •... -
Page 12: Emitter Mode
CONTROL TYPE: Select the temperature control type. A PID device with default settings programmed is recommended. OPEN WINDOW DETECTION: Activates when open windows detected (On/Off). INTELLIGENT START-UP: Adaptable start-up activation (On/Off). COMPENSATION: Correction of room temperature (Values from -5ºC to 5ºC). 3.5.3 Reset and default factory settings You can reset the unit and restore factory setting configuration. -
Page 13: Remote Operation Using The G-Control Hub
4.- REMOTE OPERATION USING THE G-CONTROL HUB It is possible to control the full operation of the unit remotely with the Elnur Gabarron Wifi Control app or the app-web (https://remotecontrol.elnur.es). The unit must be connected to a G-Control Hub connected to the internet to use this feature. -
Page 14: Cleaning Maintenance Instructions
Any other servicing should be performed by an authorized technician. ECOMBI PROSSH has been manufactured under a fully assured quality system and using environmentally friendly processes. Once its useful life is finished please take the device to a recycling depot so that its components can be recycled in an appropriate way. - Page 15 NOTES ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… ………………………………………………………………………………………………… …………………………………………………………………………………………………...
- Page 16 ELNUR UK Ltd. Unit 1, Brown Street North Leigh, Lancashire. WN7 1BU Telephone: +44(0)1942 670119 www.elnur.co.uk info@elnur.co.uk As a part of the policy of continuous product improvement Elnur UK Ltd. reserves the right to alter specifications without notice. 15190045 R1.1...
Need help?
Do you have a question about the ECOMBI PROSSH and is the answer not in the manual?
Questions and answers
My heater brand new does not retain heat in the daytime
My heater brand new does not retain the heat in the daytime
The Elnur Gabarron ECOMBI PROSSH heater may not retain heat during the daytime if the LR safety limit is activated, requiring a manual reset. Additionally, the device may not be properly connected or switched on, the lower air inlets may be obstructed, or the unit may not be sized correctly for heat loss.
This answer is automatically generated

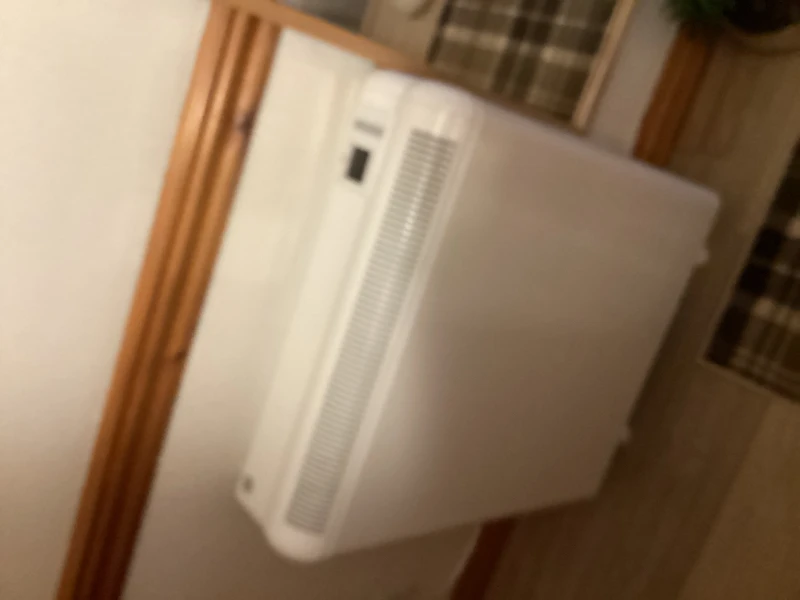

My storage heater does not retain the heat in the day time
The Elnur Gabarron ECOMBI PROSSH storage heater may not retain heat during the daytime if the LR safety limit heat is activated, which requires a manual reset. Additionally, if the heater is covered or the lower air inlets are obstructed, it may not function properly. It is also important to ensure that the storage heater is correctly sized for heat loss and that an adequate temperature is selected. If issues persist, checking whether the unit is correctly associated and displaying the required symbol may help. If error messages appear on the display, contacting a technician is recommended.
This answer is automatically generated
