PESA Jaguar 3 Quick Start Manual

Quick Start Guide
Step
1

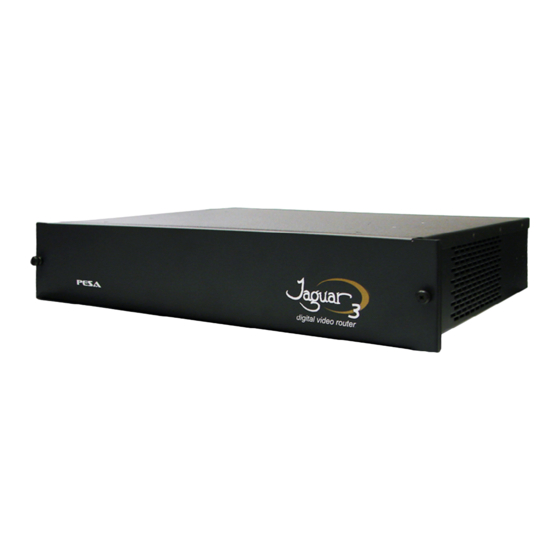

I J 3
NSPECT AGUAR
C
OMPONENTS
Carefully unpack shipping container and verify that all components
identified below are included with your shipment.
Visually inspect each component for any signs of damage in shipment
or transit.
If any components are missing or damaged, contact PESA Customer
Service.
V I S A I W S
ERIFY TEMS HOWN BELOW RE NCLUDED ITH HIPMENT
V R F
IDEO OUTER RAME
Power Cord for Each Quick
PRC Interface
Included Power Supply
Start
Adapter Cable
Module Guide
*If any components are missing or damaged, contact PESA Customer
Service by phone or e-mail.
Customer Service: (256) 726-9222
Toll Free: (800) 323-7372
Fax: (256) 726-9268
Email: service@PESA.com
2
Step
G A
ET CQUAINTED
Whether installed as a single router, as a component of a multi-frame
router system, or added to an existing PESA router system, Jaguar3
communicates with and receives control commands from either a
PESA 3500PRO or PERC2000 System Controller that is common to
all router components over the proprietary PESA Router Control
(PRC) bus.
All router configuration and monitoring functions are performed
through the controller's graphical user interface software application
running on a host PC.
Operator interface with Jaguar3 is unified with other system
components through various available remote control panels.
An interface cable is provided to adapt the 9-pin RS-422 PRC bus
connector to the PRC connector on Jaguar3 rear panel.
A front view illustration of a typical Jaguar3 video frame showing
location of key components is shown at top of next column.
Removing front cover provides access to video router boards; plus
primary and, if equipped, secondary power supply or system controller
modules.
A minimum of one power supply module is required – installed in
primary power supply module slot.
A second power supply module may be installed in secondary slot for
power redundancy.
Each Jaguar3 power supply module also contains cooling fans for the
chassis and a fan controller circuit that monitors and controls
operation of fans.
Video switching and interface circuitry is contained on Video Router
Circuit Boards. In addition, each board is equipped with front edge
status lights that provide visual indication of active system controller
and system errors.
Step
2
G A
ET CQUAINTED
Primary Power Supply Module
ERROR
Video Router Circuit Boards
* ERROR
T J 3 R P C
YPICAL AGUAR EAR ANEL ONNECTIONS
Secondary Power Supply* - Power Input
Not Used with
PRC Configurations
U G
SER UIDE
Video Signal I/O Connectors – 128 BNC
Strobe Level Select Switch
For further information, refer to Jaguar3 Router User Guide
Step 3
E
QUIPMENT
Jaguar3 router frames are designed for installation in a standard 19-inch equipment rack.
Front cover/local control panel must be detached to gain access to mounting brackets.
You must install the supplied rack rail kit when mounting router frame in a rack.
Refer to Jaguar3 User Guide for complete information on proper rack mounting of router components.
Be sure there is sufficient space behind Jaguar3 to allow for signal, interconnect and power cables; and
around all sides for cooling.
Use all chassis mounting holes, and tighten mounting hardware securely using rack equipment
manufacturer's suggested torque settings.
Fans mounted inside of this equipment provide forced-air cooling. Do not block airflow around
these fans.
Detach front cover from video frame by loosening the two captive thumb screws located on either edge
of the front cover.
Carefully remove front cover from frame and set aside.
Insert frame assembly into equipment rack and support bottom of frame until all mounting hardware has
been installed and properly tightened.
Install bottom panel-mounting screws through holes in frame mounting bracket.
Tighten all panel-mounting screws until secure.
Replace front cover on frame by aligning captive screws with captive nuts on frame mounting brackets
and secure by tightening thumb screws.
For further information, refer to Jaguar3 Router User Guide
D V R S
IGITAL IDEO OUTING
(C .)
ONT
Secondary Power Supply Module (Optional)
ACTIVE
CTL A CTL B
ACTIVE CTL A CTL B
PESA PRC Bus Interface Port
Primary Power Supply - Power Input
Not Used with
PRC
Configurations
Sync Reference
Inputs 1 and 2
*Optional Equipment – See Jaguar3 User
Guide
R I
ACK NSTALLATION
WITCHER
Step
4
Q S
UICK YSTEM
E C S C
XTERNAL ONTROL YSTEM ONNECTION
Control functions are communicated between Jaguar3 and an external PESA 3500PRO or PERC2000
System Controller through the PESA Router Control (PRC) interface bus.
An adapter cable is provided with the router to connect PRC Interface Port of router to female 9-pin "D"
PRC cable.
Install adapter as shown below, and connect one end of PRC hook-up cable to male end of adapter.
System controller cards may be mounted in a stand-alone chassis frame, or may be installed in a Cheetah
Series video matrix switcher.
Regardless of where controller is located, connect remaining end of PRC cable to "COM3/PRC" port on
chassis.
A single controller stand-alone chassis is shown in Figure 3-2 as an example.
Regardless of which controller installation method is used in your system, rear panel port labeled "COM3/
PRC" is used to complete connection with Jaguar3 router.
Jaguar3 Chassis Frame
Not Used with
PRC Configurations
Supplied PRC Interface
Adapter Cable
Connect PRC
Cable to Adapter
Single System Controller Chassis Frame (3500 PRO Chassis Shown)
PRINTER COM4 CPU ALARM 1 2
1 2 3 4
COM3/PRC
COM2 COM1 SYSTEM V CONTROL
6600 POLLING PORTS
3300/3500 SYNC
Connect PRC Cable to
COM3/PRC Port PRC Hook-Up Cable
Connector (Female 9-Pin "D" Both Ends)
V C
IDEO ONNECTIONS
There are 128 BNC I/O connectors on Jaguar3 rear panel, 64 each for video input and output signals, as
shown below.
Using figure as a reference, connect video input and output cables to router.
32x32 systems use 64 BNC connectors located on lower rear panel board for I/O signal connection.
Video Inputs 33 - 64
36 48 54 60 34
33 39 42 45 51 57 63 37
49 55 61 35
34 37 40 43 46 52 58 64 38
35 38 41 44 47 50 53 56 59 62 33 36 39
1 4 7 10 13 16 19 22 25 28 31 2 5
5 17 23 29 3
2 8 11 14 20 26 32
18 24 30 1 4
3 6 9 12 15 21 27 7
Video Inputs 1 - 32
For further information, refer to Jaguar3 Router User Guide
Part No. 81-9059-0691-0 Rev. B
H -U
OOK P
PESA PRC Bus Interface Port
Not Used
with PRC
Configurations
Connect Adapter to
PRC Interface Port
Connector
POWER
485
PANEL PORTS
+V +V
3 4
AUXILIARY STROBE GND GND
-V -V
Video Outputs 33 - 64
40 46 52 58 64
43 49 55 61
59
41 44 47 50 53 56 62
42 45 48 51 54 57 60 63
8 11 14 17 20 23 26 29 32
9 15 21 27
6 12 18 24 30
28
10 13 16 19 22 25 31
Video Outputs 1 - 32
