Milli Mood Edit Heated Towel Rail Floor to Ceiling 550mm
STEP 1 - Pre-drilling
a) Position flanges onto rail and place o
floor/ceiling in desired position. Square off from
wall and mark screw holes with pencil.
b) Repeat for top flanges on ceiling.
c) Remove rail and pre-drill screw holes with
drill.
STEP 2 - Positioning Rail
g) Slide flange cover plates over legs at top and bottom.
h) Relocate rail in desired position with flanges
connected (loose).
i) Using screwdriver/drill secure screws in
pre-drilled holes. Both top and bottom.
j)
Screw in grub screws with alen key provided.
k) Push Down on cover plates at either end to
secure into place.
l) Towel Rail is now ready to be connected by
licensed electrician.
Please note:
All Milli Floor to Ceiling Towel Rails are supplied pre-filled with water.
Dear Plumber
Could you please ensure a copy of the installation instructions
is left with the end user for future reference.

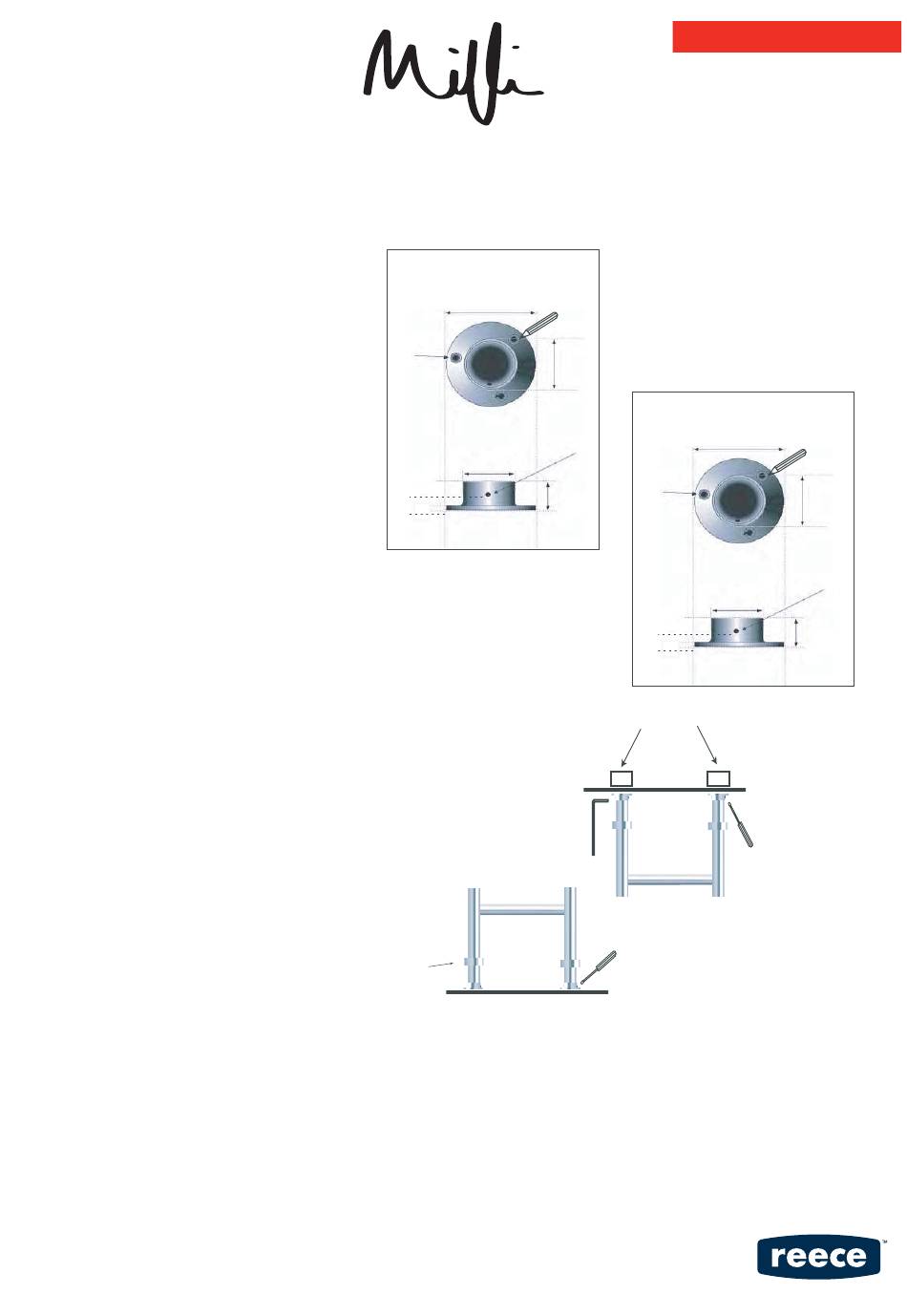

SWIVEL & LADDER FLANGE
75mm
n
Screw Holes
(taper in)
45mm
15mm
4mm
BOTTOM
h)
FLOOR
Installation instructions
45mm
POLE FLANGE
Screw Holes
(taper in)
23mm
15mm
4mm
Timber Noggin
CEILING
TOP
75mm
53mm
53mm
23mm
Page 1 of 4
