Reece Kado Lussi Series Installation Instructions

HYDROTHERM
Kado Lussi Heated Towel Rail Hardwired Wall Mount
MILAN HEATED WALL MOUNT TOWEL RAILS

WIRING OPTIONS

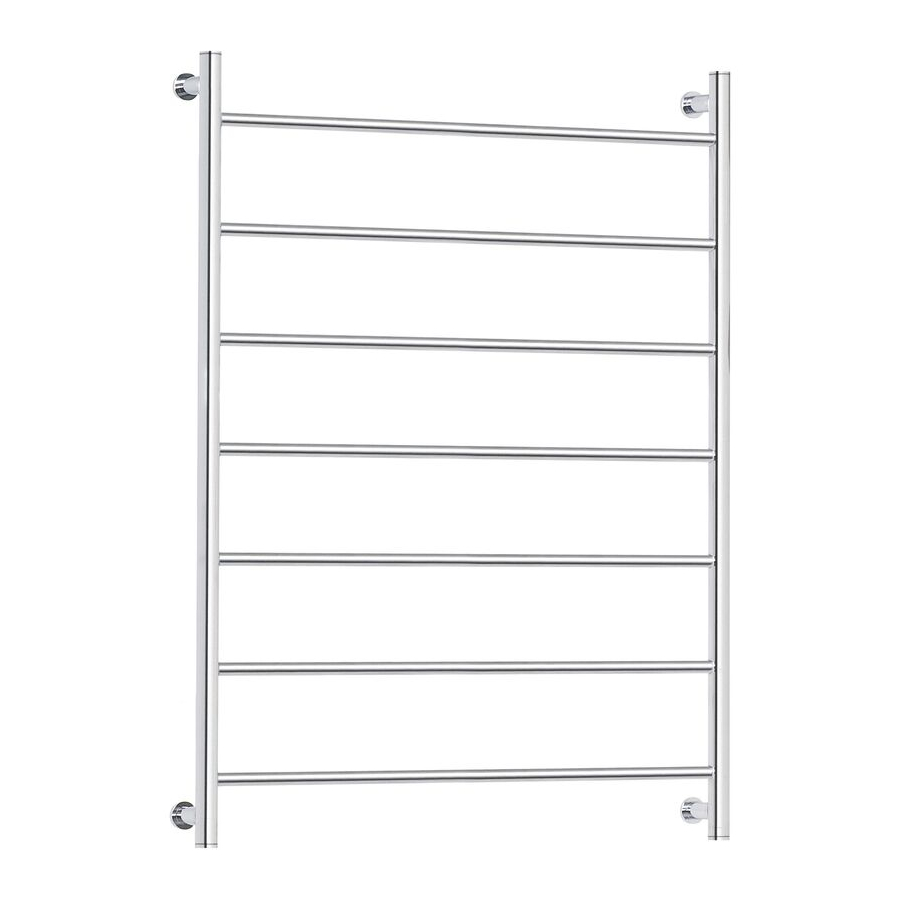

The Kado Lussi Wall Mount Series Electric Towel Rails
filled with water, and with electric elements already fitted
(standard on the left unless otherwise specified)

HARD WIRED - STANDARD OPTION

(See Fig.1 )
The cable may be hard-wired into the wall with an
element attachment. This attachement must be installed
by a qualified electrician.
Two attachments are provided for both the cable side, and non-cable side
so to allow for a symmetrical apperance (see Fig.1).
All hard-wired elements achieve an IPX Rating of IP55.
(IPX5) for use in wet areas. We recommend all electric towel rails be
connected to a timer for convenience, as well as to prolong the life
of the replaceable electric element.
HARD-WIRE ATTACHMENT

PLUG IN OPTION - REQUEST ONLY

(See Fig. 2)
Plug is supplied with element cable (1200mm long).
Cable may be cut and plug attached to required length.
(See Fig 2)
This option is only available by request.
All Hydrotherm Elements carry the following approvals.
®
Elements have a built in thermostat and internal cut out ensuring
safety and energy efficiency.
All Kado Lussi electric elements can be supplied as 240v or 110v
All electric elements are replaceable and can be easily
changed over.
1030 x 500mm Chrome
come pre
(FIG.2)
50mm
70mm
Cord
IP55
Hard wire
attachment
HARD-WIRED VERSION
DOUBLE HARD-WIRED VERSION
PLUG IN VERSION
Installation instructions
page 3 of 5
(FIG.1)
(FIG.2)
