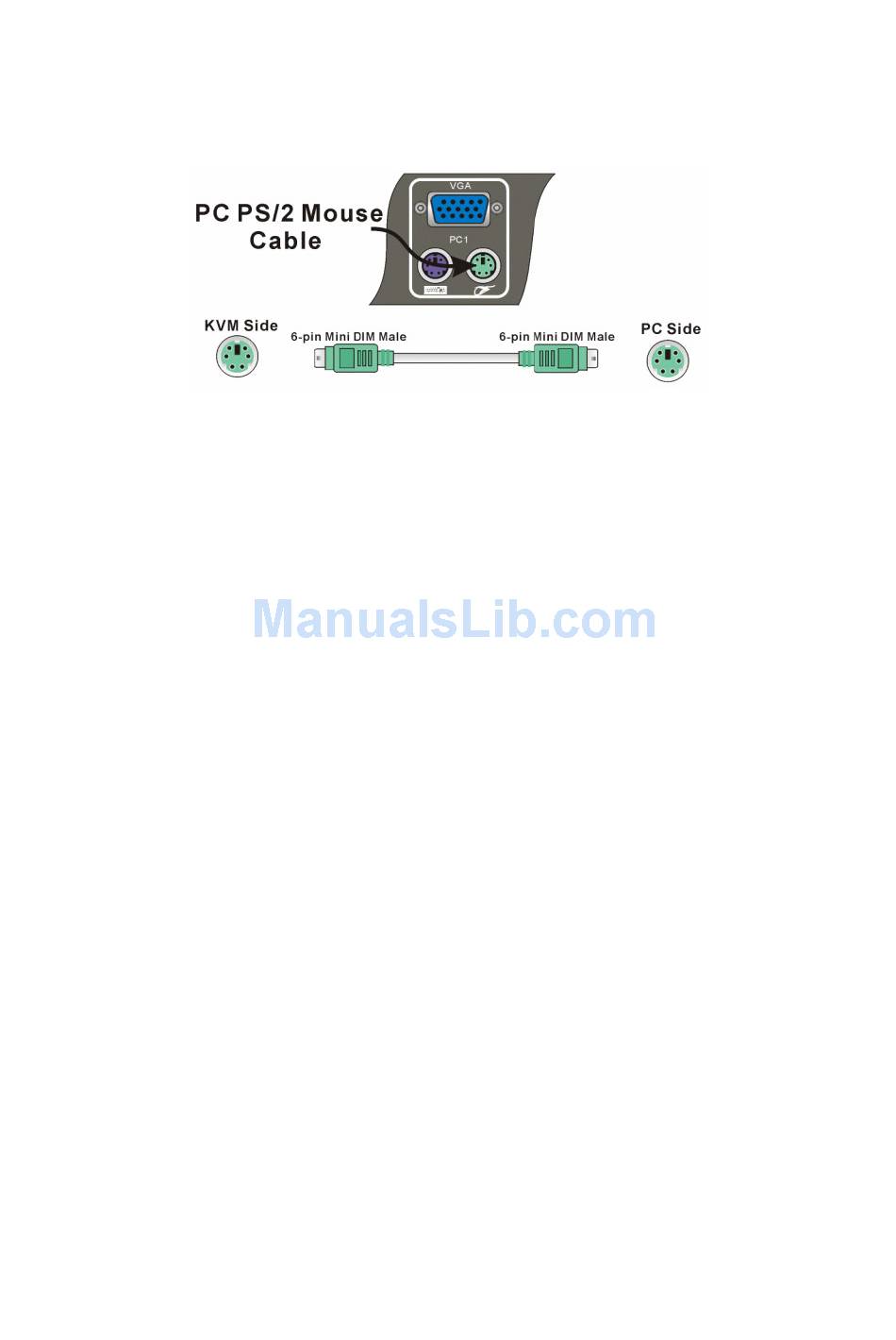

Step 5.
Now connect the PS/2 mouse cables from your
computers to the DKVM-2/4 unit. Connect a mouse
cable (6-pin Mini DIN Male / Male) to the PC and to
the connector with the mouse symbol on the rear
panel of the DKVM-2/4 unit. Repeat this for all
PCs.
Step 6.
To finish the hardware installation, connect the
PS/2 keyboard cables from your computers to the
DKVM-2/4 unit. Connect a keyboard cable (6-pin
Mini DIN Male / Male) to the PC and to the
connector with the keyboard symbol on the rear
panel of the DKVM-2/4 unit. Repeat this for all
PCs.
6
