Eldat RTS26 Quick Start Manual

Radio Window Handle Contact RTS26
GB
Model
magnetic disc
button/
LED-view
speaker
RTS26-5001E-01
Technical Details
Frequency: 868.3 MHz
Modulation: FSK
Coding: Easywave
Power supply: 1x 3-V-battery, CR2032
Degree of
protection: IP20
Operating
temperature: -20 °C to +60 °C
Range: free-field: approx. 150 m
Dimensions: 33x166x8 mm
Weight: 34 g (incl. battery)
Scope of Delivery
Window handle contact RTS26, magnetic disc,
battery holder, battery CR2032, operating
instruction
Intended Use
Only use the window handle contact RTS26 to
transmit radio signals to the Radio Alarm
Annunciator RTRP02.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Safety Advice
Before using the Radio Wall
Switch, carefully read through the
operating instructions!
Also note the operating instructions of the
receiver(s)!
Please check regularly the ready-to-transmit-
state of the device!
Have faulty devices checked by the manufac-
turer!
Do not make any unauthorized alterations or
modifications to the device-!
Keep the batteries out of the reach of
children!
Function
The window handle contact RTS26 is a magne-
tic contact that signals the open/closed status of
a window acoustically and transmits an alarm
telegram wireless to the radio alarm annuncia-
tor RTRP02.
If a window is opened while the window handle
contact is activated, a warning signal sounds for
approx. 1.5 minutes. You can deactivate this by
pressing the button for some time. Once the
window is closed, the window handle contact
activates itself automatically after 10 seconds.
The window handle contact is suited for
standard window handles with a rod dimension
of 7 mm, screw dimension of 10 mm and a hole
spacing of 43 mm.

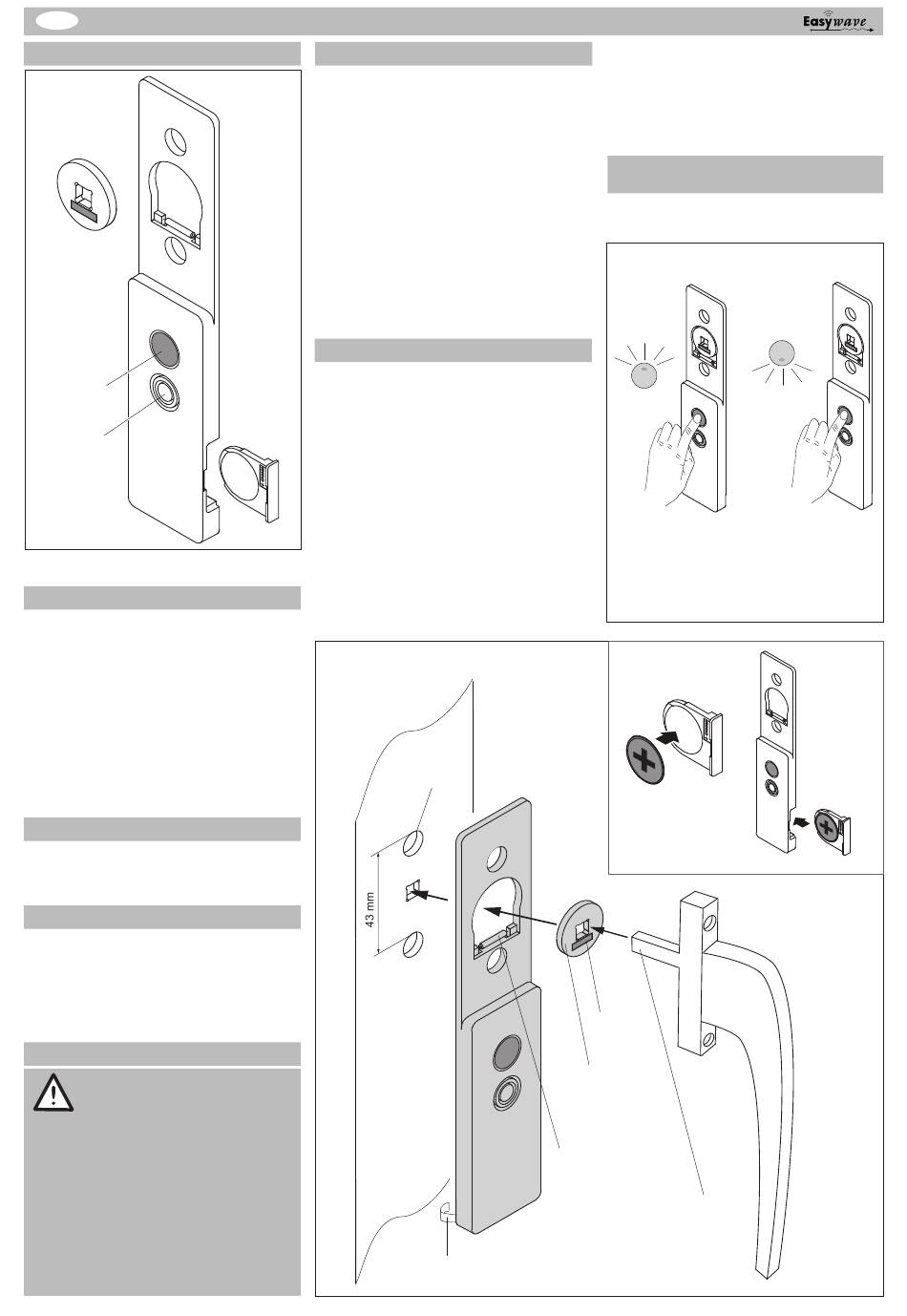

Start-Up
1. Insert the enclosed battery into the battery
holder (Fig. 1). Use only batteries of type
CR2032. Make sure the poling is correct.
The positive pole has to be visible!
battery
holder
2. Unscrew the window handle while the
window is closed. Remove the protective
foil from the rear adhesive pad of the
window handle contact and stick this onto
the window frame.
Observe the correct position (the drill holes
must be vertically aligned).
868.3 MHz
3. Insert the magnetic disk with the magnet
facing down into the window handle contact.
The reed contact and the magnet must lie
parallel to each other.
Remove protective plastic sheeting from the adhesive film.
Ø 10 mm
magnetic disc
reed contact
4. Slide the window handle through the magne-
tic disk back into the window and screw the
handle on again.
5. Press the button until the LED briefly blinks
red. Now the window handle contact is
activated.
Window Handle Contact
Activate / Deactivate
Press sequentially the button to activate or
deactivate the window handle contact.
Deactivated
Activated
GREEN
RED
Press the button, Press the button,
the LED light up the LED light up
red. green.
Fig. 1
CR2032
magnet
square bar
max. 7 mm
