Antenna Power Jumpers

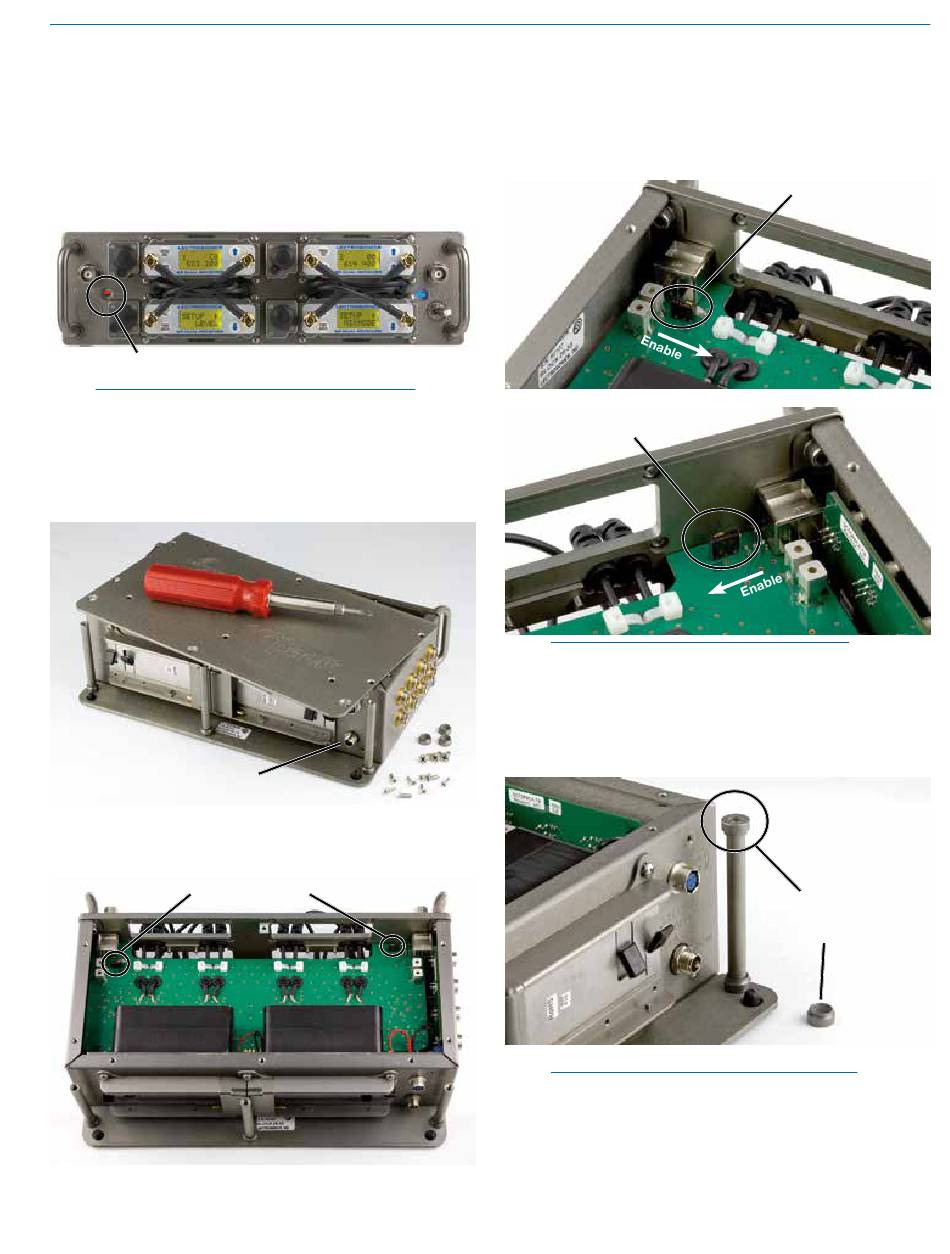

Power for Lectrosonics remote RF amplifiers is provided
by DC voltage from the power supply passed directly
to the BNC jacks on the control panel. An illuminated
switch on the left side of the control panel enables and
disables the power. A 300 mA polyfuse protects against
excessive current in each BNC output.
Antenna power switch glows red
when DC power is enabled.
NOTE: The control panel LED will continue to
indicate that antenna power is turned on even if
one or both jumpers is set to disable it.
Antenna power can be disabled at each of the BNC
connectors with jumpers on the internal circuit board.
Remove the cover panel to access the jumpers.
Threaded power connector
Remove the eight smaller screws from the housing and
the three larger screws from the support posts. Jumpers
are located near the corners of the board.
Antenna Power Jumpers
Rio Rancho, NM
Install the jumpers towards the center of the circuit
board to enable the antenna power, and towards the
outside of the circuit board to disable it.
Insert jumper toward center of
board to enable antenna power
NOTE: No damage will occur if a standard
antenna is connected while antenna power is
enabled.
Place the ferrules on top of the support posts before
attaching the cover. Be careful not to overtighten the
screws.
NOTE: When using any amplifier other than
Lectrosonics models, make certain that the DC
voltage and power consumption are within an
acceptable range.
Receiver Multicoupler
Insert jumper toward center of
board to enable antenna power
Place ferrules on top of
the support posts before
attaching cover.
