Receiver Removal - Lectronics Octopack Instruction Manual

OCTOPACK

Receiver Removal

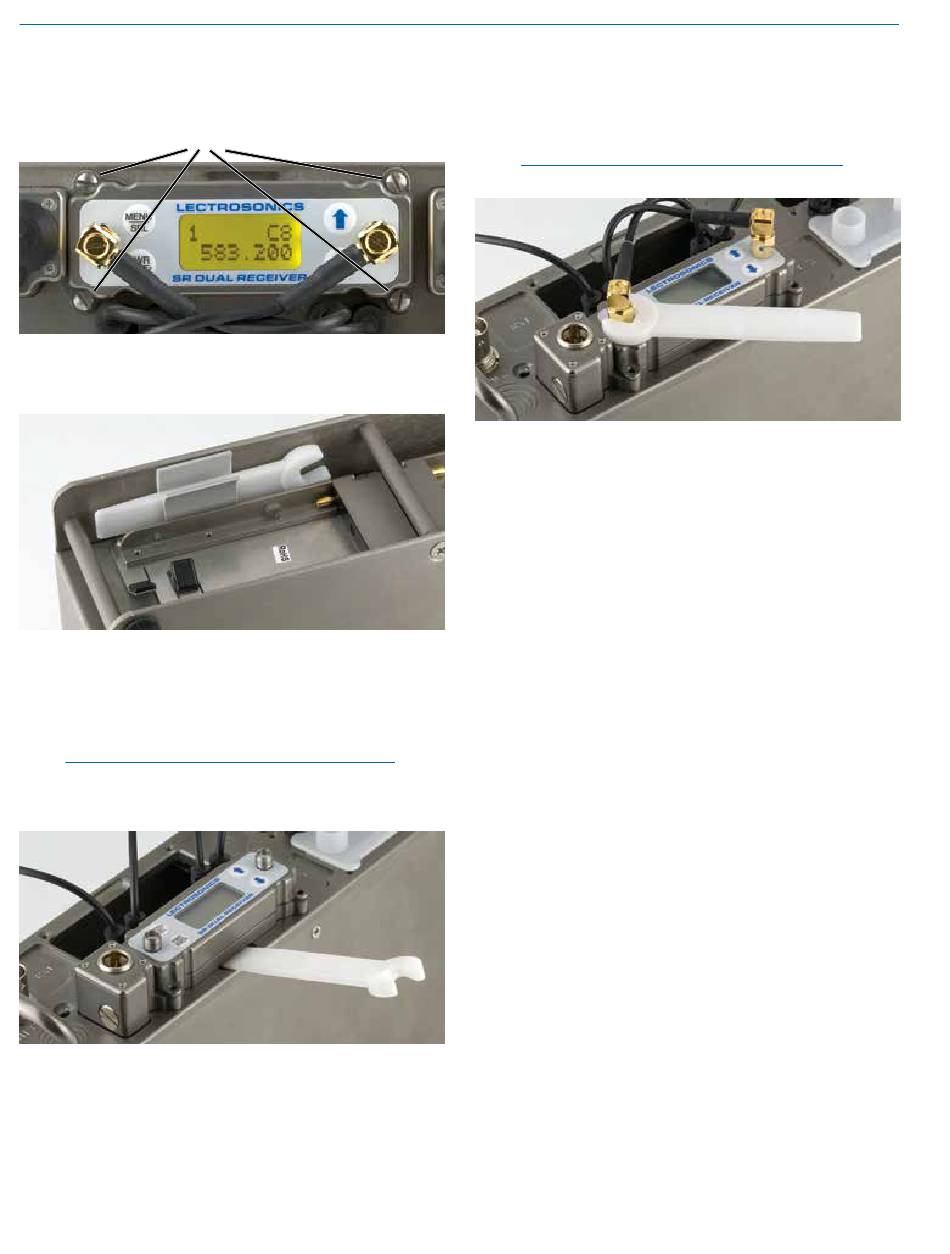

Disconnect all four mounting screws on
each receiver from the Octopack panel
A handy tool, constructed of Delrin, is provided to aid in
removing the receivers and to loosen overly tightened
coaxial connectors.
The supplied tool is stored in a clip on the battery
It is difficult to remove the receivers by hand due to the
friction in the 25-pin connector in the slot and the dif-
ficulty of gripping the receiver housing. The flat end of
the tool is used to remove the receivers by prying the
housing upward in the notch next to the slot.
DO NOT remove the receivers by pulling on the
antennas since the antennas and/or connectors
can be damaged.
Pry the receiver housing upward in the notch to
release the 25-pin connector
8
Normally the hex nuts on the coaxial RF leads are se-
cured and removed by hand. The tool is provided if the
nuts cannot be removed by hand.
DO NOT overtighten the nuts with the wrench.
The open end wrench is used to loosen co-
axial connector nuts that have been overtight-
LECTROSONICS, INC.
