Summary of Contents for Lectronics 100 Series

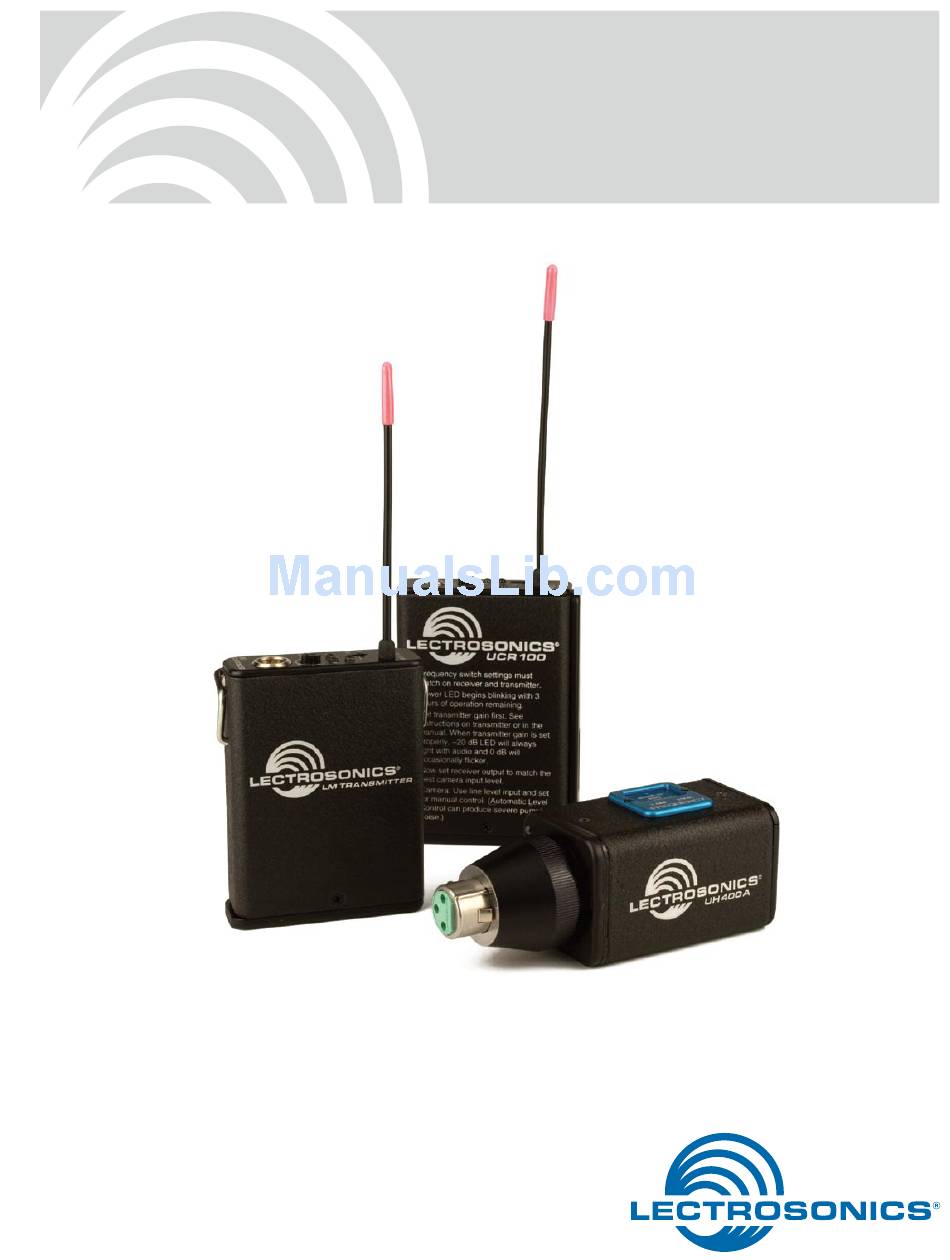

- Page 1 SYSTEM SETUP PROCEDURE 100 Series Wireless Microphone System Rio Rancho, NM, USA www.lectrosonics.com...
- Page 2 Power LED is brightly lit. Important Note: Before using transmitters with the UCR100 Receiver, make sure they are set to 100 Series Compatibility Mode. Refer to your transmitter’s manual for instructions on how to change compatibility modes. Step 2: Check for Interference and Select a Clear Frequency Turn all transmitters OFF.
- Page 3 Wireless Microphone System Step 4: Microphone Attachment – Belt-Pack Transmitters Rotate the 5-pin plug to align with the pins in the jack on the A 5-pin jack on the transmitter transmitter. Insert the plug until control panel provides input it latches in place. taps for any microphone.
- Page 4 Step 8: Adjust UCR100 Output for Proper Record Level For cameras or mixers with manual level control Attach a receiver output cable (see below) between the UCR100 and the camera or mixer. Leave the camera or mixer audio level control in the same position as set in Step 7.
