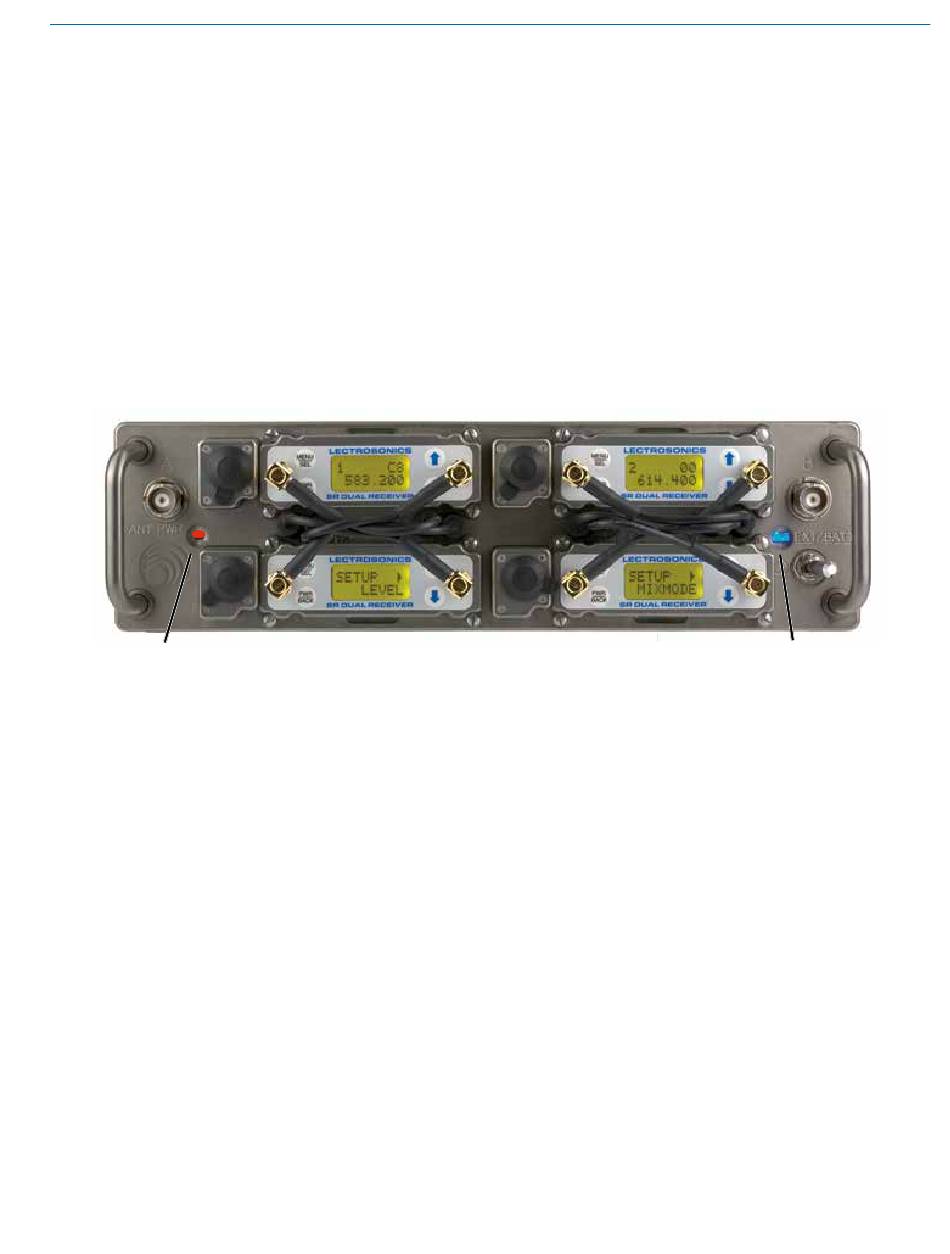

Control Panel

RF Signal Distribution
Each antenna input is routed through a high quality
RF splitter to coaxial leads on the control panel. Gold
plated right angle connectors mate to the SMA jacks on
SRa Series receivers.
Power Indication
The power switch locks in position to prevent acciden-
tal turn off. When power is engaged, the LED next to
the switch illuminates to indicate the source, remaining
steady when external power is selected and blinking
slowly when the batteries are providing power.
Antenna Power
Switch
Rio Rancho, NM
Antenna Power
A recessed switch on the left side of the control panel
enables and disables DC power passed from the power
supply to the BNC antenna connectors. This provides
powering of remote RF amplifiers through the attached
coaxial cable. The LED glows red when power is en-
abled.
Receiver Versions
SRa and SRa5P receivers can be used together pro-
vided the frequencies fall within the bandwidth of the
antenna multicoupler. The earlier versions of the receiv-
ers with attached antennas cannot be connected to the
multicoupler antenna feeds.
Receiver Multicoupler
Power Status LED
