Receiver Installation

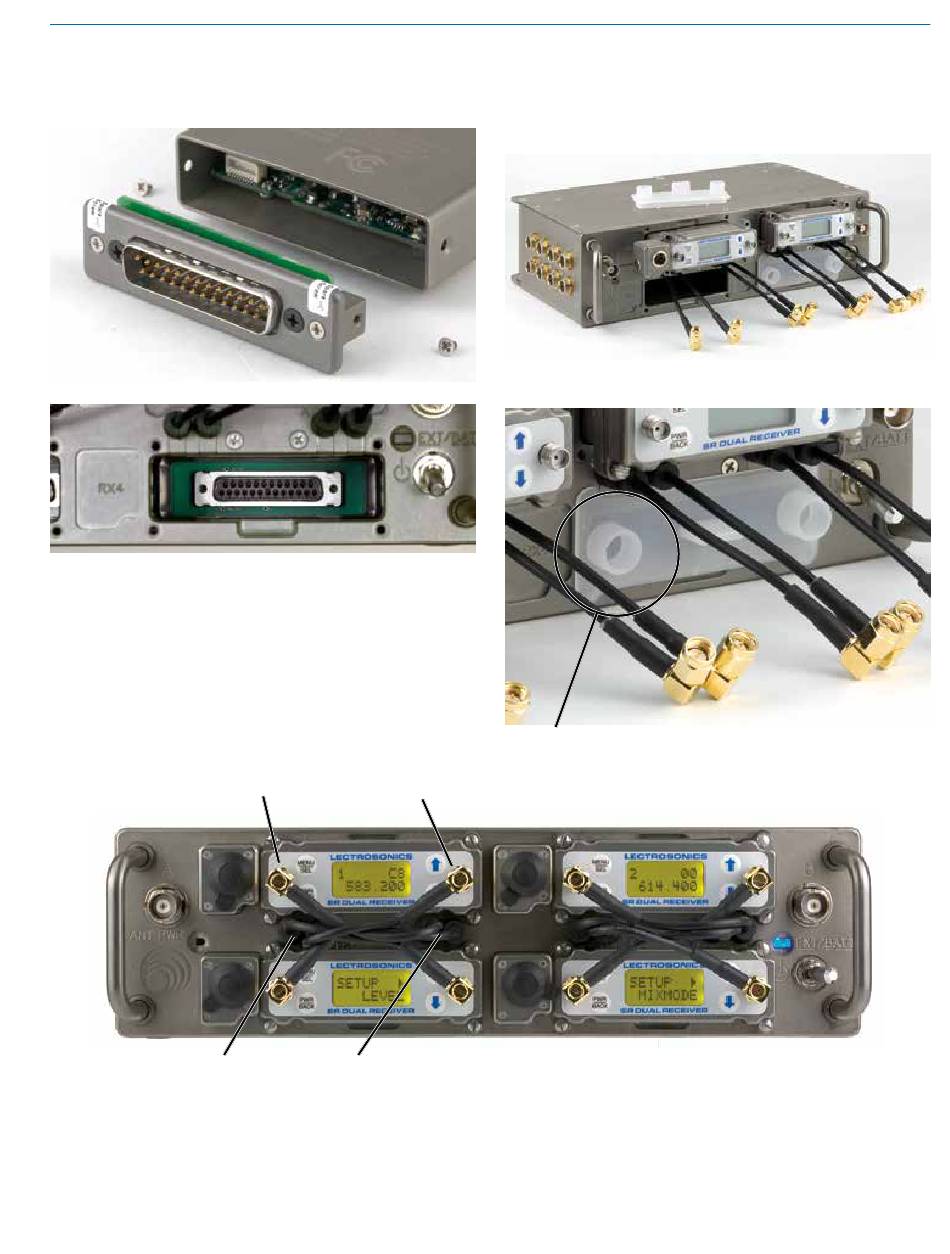

First install the SRUNI rear panel adapter.
The mating 25-pin connector inside each slot on the
Octopack provides power and audio connections.
RF leads are connected in a "criss-cross" pattern as
shown below to avoid sharp bends in the cables. The
leads are marked on the control panel as B on the left
and A on the right side of each slot. The antenna inputs
on the receivers are the opposite, with A on the left
and B on the right. The right angle connectors help to
maintain a low profile and visibility of the LCDs on the
receivers.
"A" antenna inputs
"B" coaxial feeds
Rio Rancho, NM
"B" antenna inputs
"A" coaxial feeds
Gently insert the receivers into the slots. A guide around
each internal connector centers the housing to align the
connector pins.
Plastic inserts are provided to cover empty slots. Sock-
ets in the insert are sized to store loose antenna leads.
Sockets in the slot covers are provided to store
unused RF leads and keep the right angle connec-
tors clean.
Receiver Multicoupler
