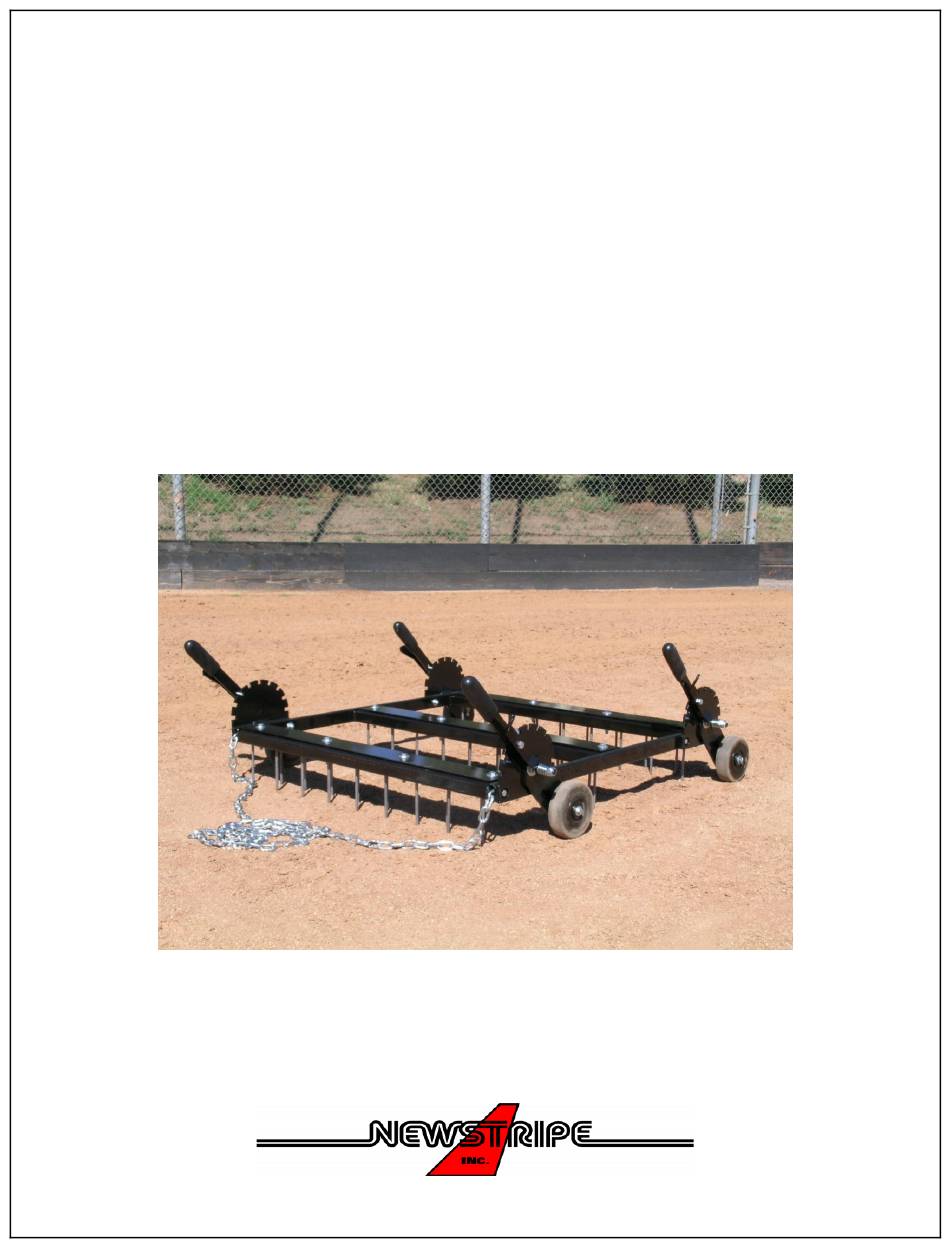

- Page 1 3’ Nail Drag with Wheel Kit Product Manual...
- Page 3 3’ Nail Drag with Wheel Kit ALWAYS wear safety goggles or protective eye-wear when operating the unit! TABLE OF CONTENTS Thank you and congratulations on your purchase of the 3’ Nail Drag Wheel Kit Assembly…... Page 1 with Wheel Kit. Nail Drag Assembly..………..
- Page 4 3’ Nail Drag with Wheel Kit ALWAYS wear safety goggles or protective eye-wear when operating the unit! Before assembling, please check the shipping carton. You should have: (2) Left Side Wheel Assembly 10004545 (2) Right Side Wheel Assembly 10004546 (8) 5/16-18 Lock Nut 10000406 (8) 5/16 Flat Washer 10000095...
- Page 5 3’ Nail Drag with Wheel Kit ALWAYS wear safety goggles or protective eye-wear when operating the unit! ITEM NO. QUANTITY DESCRIPTION PART NO. RETAINER PLATE 10002089 LOWER FRAME SECTION 10002087 10' 3/16" PROOF CHAIN 10002091 SPECIAL DRAG NAIL 10002150 3/8-16 X 2-2 1/2 BOLT 10002077 5/16-18 X 1-1/2 BOLT 10002600...
-
Page 6: Top View
3’ Nail Drag with Wheel Kit ALWAYS wear safety goggles or protective eye-wear when operating the unit! Step 2: Installing the upper clam shell. A. Place upper clam shell (10) open side down into lower frame section (2). Make certain holes in upper claim shell align with hole in lower frame section. - Page 7 The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
