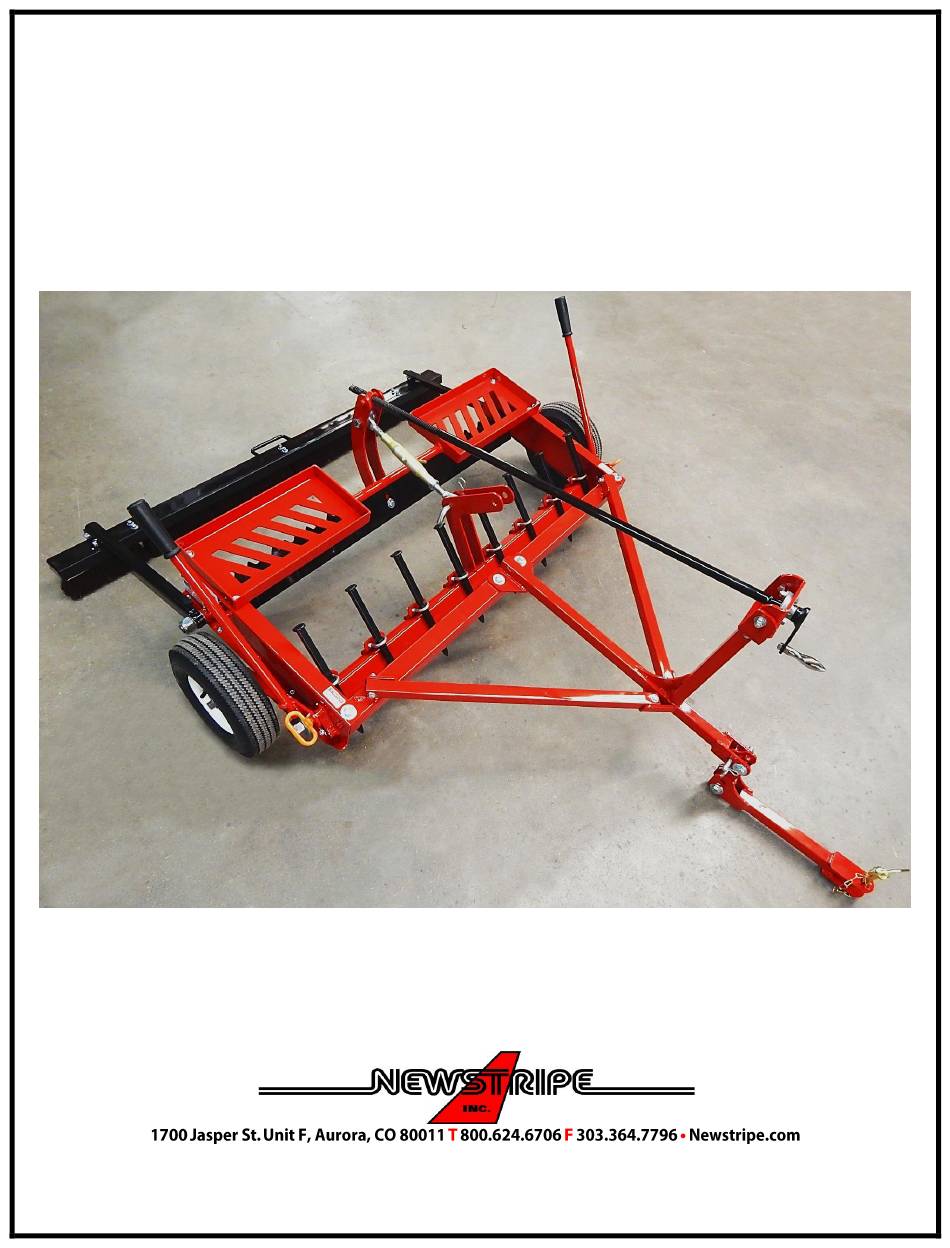

- Page 1 Dirt Medic™ Product Manual Dirt Medic™ Manual / 3315.1016 Rev1...
-
Page 2: Table Of Contents
Please check the serial number on your unit. Parts List……………………………….Page 7 This manual is for units with serial number 10015597 and above only. For units with Parts Image.………………………….Page 8 serial numbers below 10015596, please contact Newstripe for the correct manual. Warranty………………………………Page 9 Dirt Medic™ Manual / 3315.1016... -
Page 3: Precautionary Warning
Wheel lift arms can move quickly with great force when raising the wheels (lowering the unit) and when the unit is attached to a tow vehicle. Do not exceed 15 MPH when the unit is attached to a vehicle Dirt Medic™ Manual / 3315.1016 Page 1 of 9... -
Page 4: Assembly
ALWAYS wear safety goggles or protective eye-wear when operating the unit! ASSEMBLY The Dirt Medic is shipped with the front tongue assembly removed. You will need various sockets and wrenches for assembly. Remove all shipping ties securing the unit to the pallet. - Page 5 Dirt Medic™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! Pic 2 Pic 3 Dirt Medic™ Manual / 3315.1016 Page 3 of 9...
- Page 6 3. Attach the tongue to the vehicle hitch plate with the tongue nose hitch pin. 4. Lower the rear wheels per above instructions. You may now tow the unit to the field. Pic 4 Dirt Medic™ Manual / 3315.1016 Page 4 of 9...
-
Page 7: Operation
Towing Position CUTTING DEPTHS AND HEIGHT ADJUSTMENTS The Dirt Medic has been designed so that the scraper blade and harrow spike bar may be adjusted together or independently to allow for different surface and soil conditions. Adjusting the scraper blade bar will also regulate the cutting depth of the harrow spike bar. -
Page 8: Maintenance
Grease the bearings on the ends of the brush arms, at the blade bar. Monthly Replace the brush segments if they are worn out. Adjuster Shaft Weekly Coat the threaded area with dry lubricant. Dirt Medic™ Manual / 3315.1016 Page 6 of 9... -
Page 9: Parts List
10004681 Skid Pads, 2 required (Not Shown) 10002583 Brush Retainer 10004686 Brush Arm, Left 10004684 Brush Arm, Right 10004685 18” Outside Brush Segment, 2 required 10001934 24” Center Brush Segment 10001935 Dirt Medic™ Manual / 3315.1016 Page 7 of 9... -
Page 10: Parts Image
Dirt Medic™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! Dirt Medic™ Manual / 3315.1016 Page 8 of 9... -
Page 11: Warranty
The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
