Summary of Contents for Newstripe 4600 SP Airless

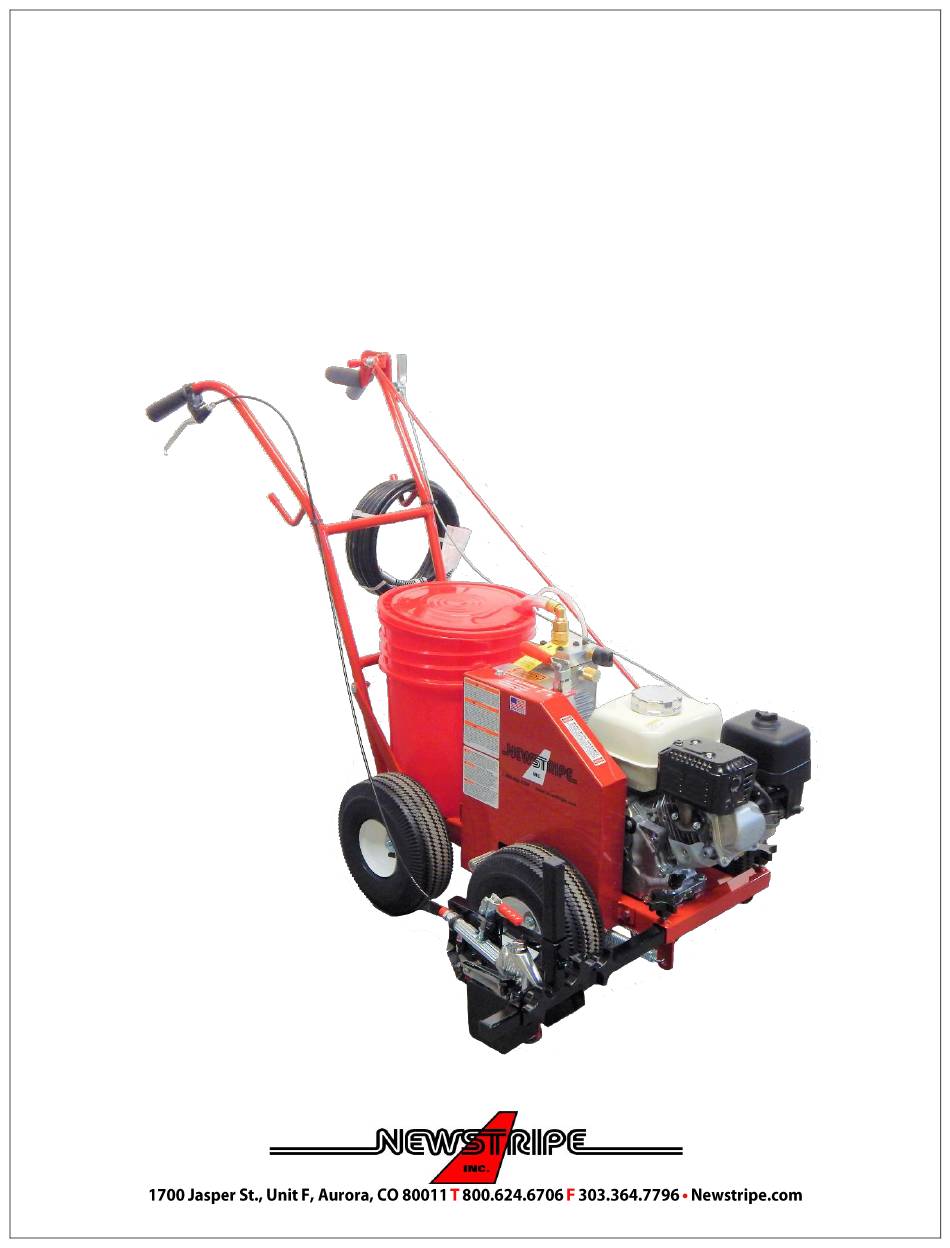

- Page 1 4600™ SP Airless Product Manual 4600™ SP Manual / 5124.0623...
-
Page 2: Table Of Contents
(Winter Storage) above only. For units with serial numbers below 1025476, please Maintenance .......... Page 5 contact Newstripe for the correct manual Parts List ..........Page 6 Engine Lubricant & Parts ......Page 6 Airless Pump Parts ......... Page 7 Airless Pump Detail ........ -
Page 3: Precautionary Warning
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel up to and including death! ... -
Page 4: Assembly
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! ASSEMBLY 1. Remove the unit from the crate and open 10. Make sure that the static chain is the packing cartons. Check for any damage (Attached to the contacting the ground that may have occurred during shipment. -
Page 5: Operation
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! OPERATION We recommend practicing with water to learn the controls and machine operation. Then if you are going to use an oil- based paint, you will have to flush out the water with paint thinner (mineral spirits) prior to using the oil-based paint. ALWAYS STRAIN THE PAINT BEFORE USE! 1. -
Page 6: Spray Tip Cleaning
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! SPRAY TIP CLEANING DURING USE 1. Place the spray control knob in the re-circulating 6. Turn the spray control knob to the prime position position. and trigger gun to release the system pressure. -
Page 7: Cleaning Procedure (Extended Periods)
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! CLEANING PROCEDURE FOR EXTENDED PERIODS OF NON-USE 1. Clean the machine as instructed in cleaning procedure. 2. Pick up the suction filter and hold it with the bottom facing up. 3. -
Page 8: Parts List
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PARTS LIST Item Description Part Item Description Part Number Number 25’ Airless Paint Hose 10000458 Chassis 10004028 Airless Spray Gun with 517 Tip 10005114 Belt Guard 10004029 Spray Gun Clamp 10005152... -
Page 9: Airless Pump Parts
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS PUMP PARTS Item Description Part Item Description Part Number Number #35* Outlet Valve Pump Engaging Lever 10001817 10005102 #36* Outlet Valve Push Button Suction Hose Filter 10001760 (Kit) *#35 &... -
Page 10: Airless Spray Gun Detail
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS SPRAY GUN DETAIL Part Number Description 10005116 SPRAY TIP GUARD 10002103 319 SPRAY TIP - STANDARD FOR GPS AND SKID MOUNTED STRIPERS 10000508 517 SPRAY TIP - STANDARD FOR WALK BEHIND STRIPERS 10004860 519 SPRAY TIP - STANDARD TIP FOR RIDE ON STRIPERS 10003824... -
Page 11: Troubleshooting Guide
4600™ Self-Propelled Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! TROUBLESHOOTING GUIDE NEVER REMOVE THE FRONT COVER, PRESSURE ADJUSTING VALVE OR THE PUMP HEAD BLOCK. THIS WILL VOID THE WARRANTY. CALL THE FACTORY FOR SERVICE LOCATIONS IF THESE ITEMS REQUIRE SERVICE. PROBLEM REMEDY The engine will not start. -
Page 12: Warranty
CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
