Page 36

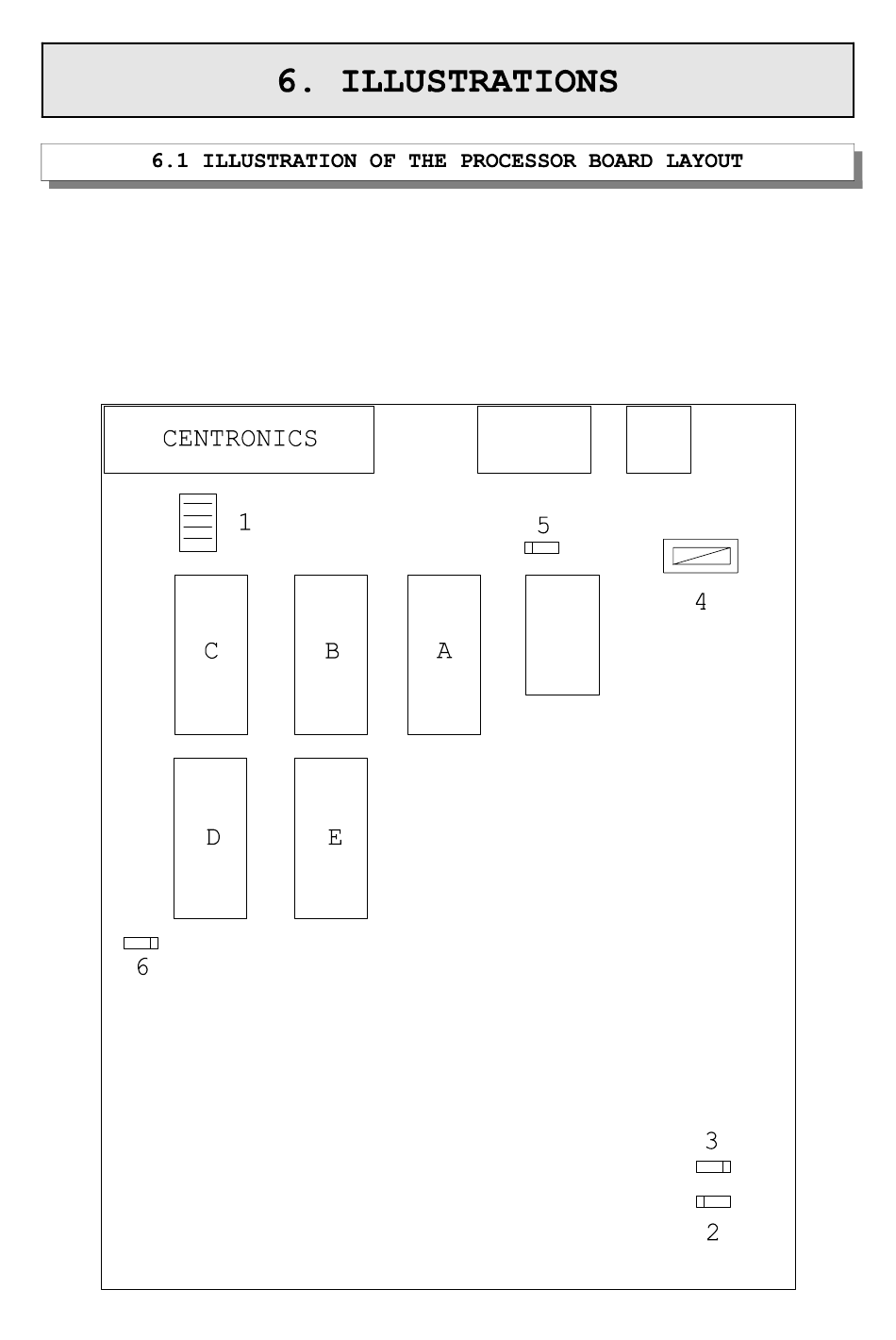

1 = Module selection DIP switch
2 = Normal/inverted shift jumper; normal is the right position
3 = Internal/external demodulator; internal is the left position
4 = 2 Amp fuse
5 = Jumper selection for larger 8KB NOV-RAM
6 = Jumper selection for larger system memory of 256 kbit
A - E = Software modules A through E
