- Page 1 ™ ™ Blackbird by Monoprice 44086 User Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using the Blackbird 8K Dual Function HDMI® Splitter/Switch, paying ™ extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Remote Control (Model): YKQ-153 Remove and immediately recycle or dispose of used batteries according to local regulations and keep • them away from children. Do NOT dispose of batteries in household trash or incinerate them. Even used batteries may cause severe injury or death. •...
-
Page 4: Table Of Contents

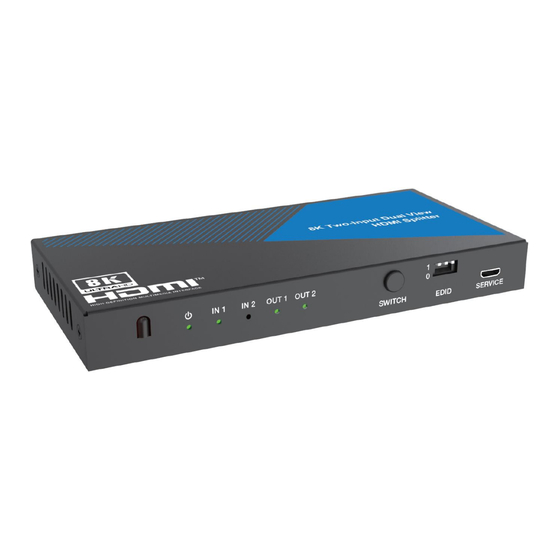

NOTICE FOR ISED CANADA ..........................................9 DISPOSAL AND RECYCLING INFORMATION ................................... 9 INTRODUCTION This Blackbird 8K Dual Function HDMI® Splitter/Switch by Monoprice allows you to switch between either ™ ™ of two HDMI inputs and distribute the signal to two HDMI displays. It supports HDMI video resolutions up to 8K @ 60 Hz with the YCbCr 4:2:0 color space, as well as multichannel compressed and uncompressed audio streams. -
Page 5: Package Contents
PACKAGE CONTENTS Take an inventory of the package contents to make sure you have all the items listed below. Please contact Monoprice Customer Service for a replacement if anything is missing or damaged. 1x 8K Dual Function HDMI® Splitter/Switch 1x AC Power Adapter (5 VDC, 2A) -
Page 6: Connection Diagram
CONNECTION DIAGRAM HDMI CABLE SELECTION Which type of HDMI® cable you should use depends on the maximum resolution you will be using in your system. The following table details the ideal types and length limits of cable to use under various conditions. Resolution Cable Type Version... -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Model 44086 Inputs 2x HDMI® Video Outputs 2x HDMI® 8K @ 60 Hz 10-bit YCbCr 4:2:0 Maximum Video Resolution 8K @ 30 Hz 10-bit YCbCr 4:4:4 4K @ 120 Hz 10-bit YCbCr 4:4:4 Video Bandwidth 40 Gbps HDMI Version HDCP™... -
Page 8: Customer Service
If you have any problems with your order, please allow us to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 9: Notice For Ised Canada
, Blackbird ™ , the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 10 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2024 Monoprice, Inc. All rights reserved.
