Thank you for purchasing an EasyPro Bottom Drain. Following are a few
simple instructions to help you during the installation process.
EBD4A - 4" Bottom Drain with Air Diffuser
Items included:
• EasyPro EBD4A bottom drain
(Base, ring and lid)
•
/
" x 2
/
" long check valve (blue)
3
1
4
2
• 16 stainless steel screws
(12 x 1" phillips pan head)
• Membrane air diffuser (MD3)
• 8" PVC stand pipe (
•
/
" mpt x
/
" barbed elbow (for airline)
3
1
4
2
Before installation, please check to ensure you have
all the listed parts. If anything is missing, call EasyPro Customer Service at 800-448-3873.
1
Drain base is installed under the liner, usually in the deepest part
of the pond. Determine placement and excavate. Bottom drain
and plumbing use a PVC 4" male adapter or reducing adapter to
connect to PVC pipe (not included). Teflon tape threads of male
adapter and tighten securely to prevent leaking. Connect
to barbed elbow (installed) and clamp securely prior to glueing
bottom drain to PVC pipe. Failure to clamp securely could result in
leaking. Extend tubing out beyond edge of liner to be connected
to air pump. Be sure air compressor sits higher than water level in
pond after tubing is connected. Recommended air flow is 0.5 - 1.5 cfm.
2
After installing liner, find drain base. Carefully cut an 8" hole
in the liner directly above center hole in drain base. Be sure not to cut the
hole larger than the center hole in the drain base. Lift the liner up a few inches
and inspect the top flange of the drain base. Remove any sand or debris that
may have gotten on the flange when pulling the liner into place. Place a thick
bead of silicone around the middle of the flange on base and then lower liner.
Be sure underlayment fabric is cut back so it does not lay on the drain base -
liner needs to lay directly on base.

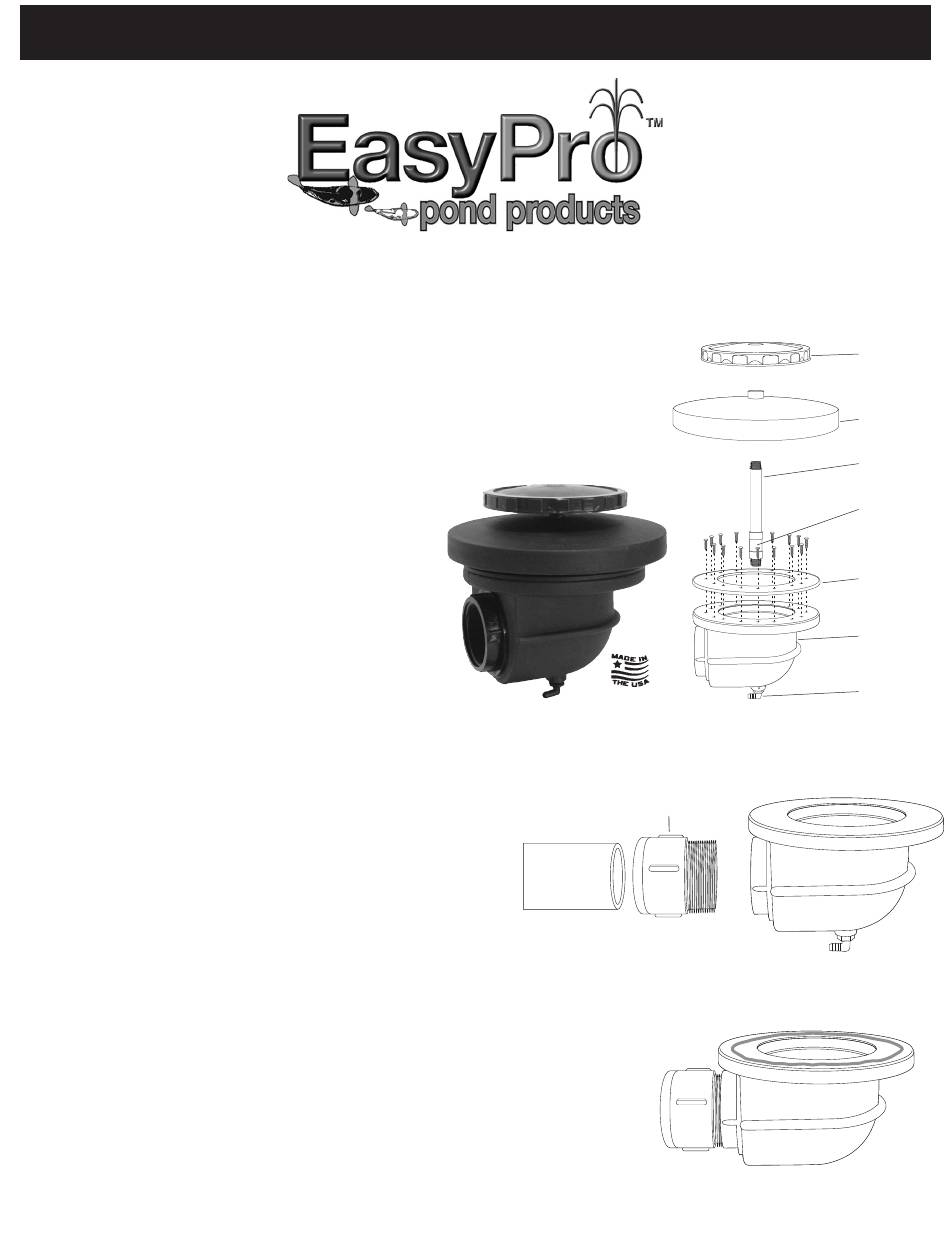

EBD4A - 4" Bottom Drain
4" Bottom Drain
Installation Instructions for EBD4A
/
" mpt)
3
4
/
" tubing
1
2
PVC Male Adapter
Air Diffuser
Lid
Stand Pipe
Check Valve
Ring
Base
Barb for Airline
Advertisement
Related Manuals for EasyPro EBD4A
Summary of Contents for EasyPro EBD4A
- Page 1 EBD4A - 4" Bottom Drain 4" Bottom Drain Installation Instructions for EBD4A Air Diffuser Thank you for purchasing an EasyPro Bottom Drain. Following are a few simple instructions to help you during the installation process. EBD4A - 4" Bottom Drain with Air Diffuser Stand Pipe Items included: • EasyPro EBD4A bottom drain...
- Page 2 Ideally a cordless drill is used to start the screw. But to tighten them, a hand screw driver gives you a better feel when screws are tight. Thread the PVC stand pipe into the base making sure that the blue check valve is on the bottom near the base. Verify the arrow on the check valve is pointed up. Thread the lid on to the upward end of the stand pipe (no teflon needed). Finish by threading the air diffuser onto the lid. Installation of the EBD4A is now complete. EasyPro Pond Products Limited Warranty EasyPro Pond Products (“EasyPro”) warrants to the purchaser that this product ("Product") will be free from any mechanical or material defects for a period of: EBD4A Bottom Drain: one year from the date of purchase. MD3 Diffuser: five years from the date of purchase. This warranty only covers properly installed and maintained Products sold by authorized EasyPro Sellers who are subject to and follow EasyPro’s quality control standards. Please note that because EasyPro is unable to control the quality of Products sold by unauthorized sellers, unless otherwise prohibited by law, this warranty does not cover Products purchased from unauthorized sellers. This warranty does not cover normal wear and tear, nor any deterioration suffered through overloading, improper use, negligence, improper installation, acts of God or accident. Similarly, any modification made by the purchaser to the Product will cause the warranty to be null and void. This warranty does not cover any cost associated with the installation or removal of the Product subject to a warranty claim. All returned items will be inspected to determine cause of failure before a warranty claim is approved. The exclusive remedies provided hereunder shall, upon EasyPro’s inspection and option, be either repair or replacement of the Product or parts covered under this warranty.
