Avidyne IFD4XX/5XX/Atlas
2.1 Equipment Locations
The installer should indicate on the outlines below the locations for the
following items at the time of installation: IFD unit, wire harness location and
routing, coaxial cables, and antennas. Use Figure 1 for single engine airplanes
or Figure 2 for multi engine airplanes and Figure 3 for Jet Aircraft.
Confidential property of Avidyne Corporation
Not to be disclosed without permission

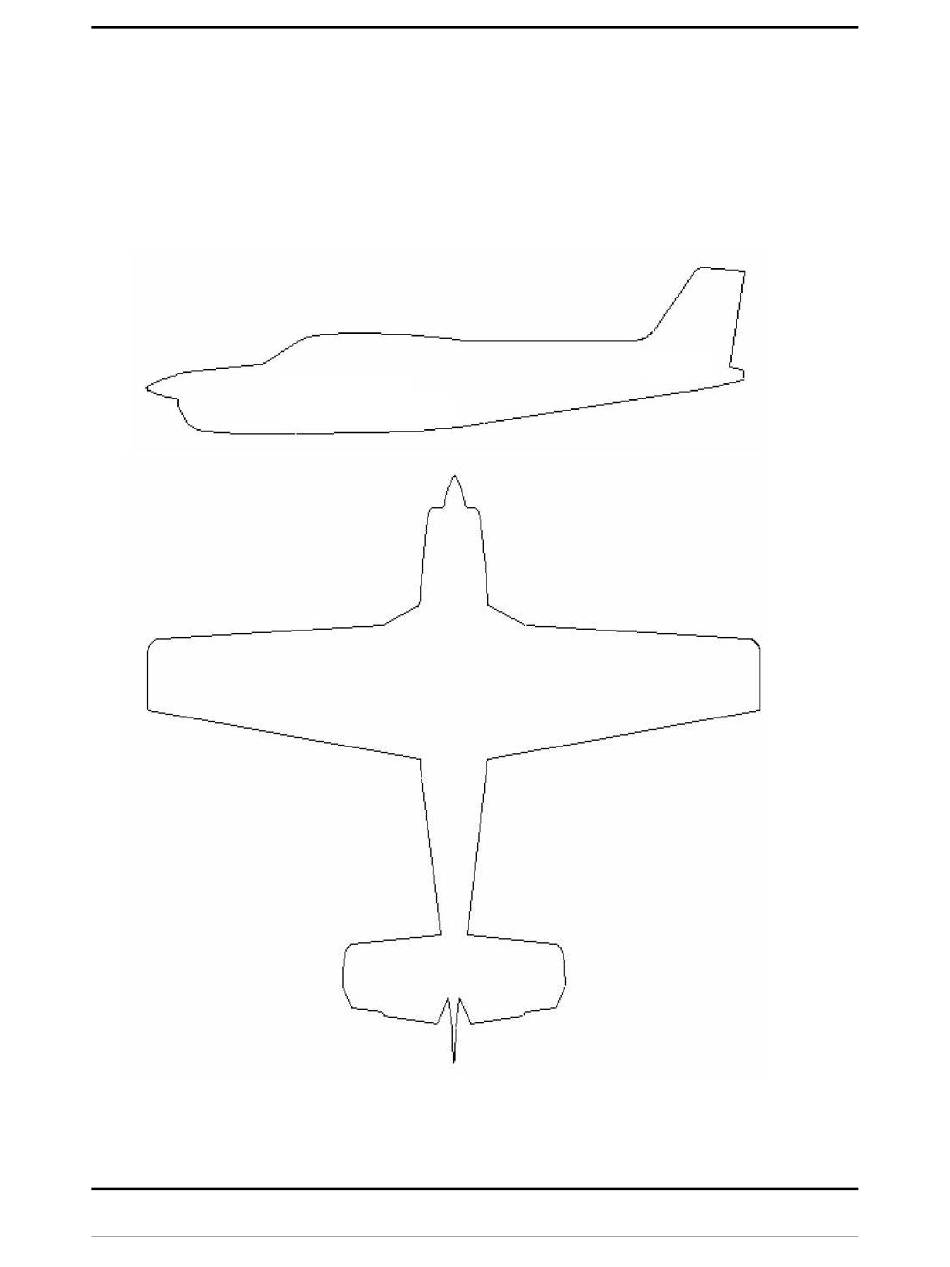

Figure 1: IFD Location - Single Engine
Page 10 of 24
Instructions for Continued Airworthiness
Revision: 10, Date: 09/30/21
AVIFD-315
