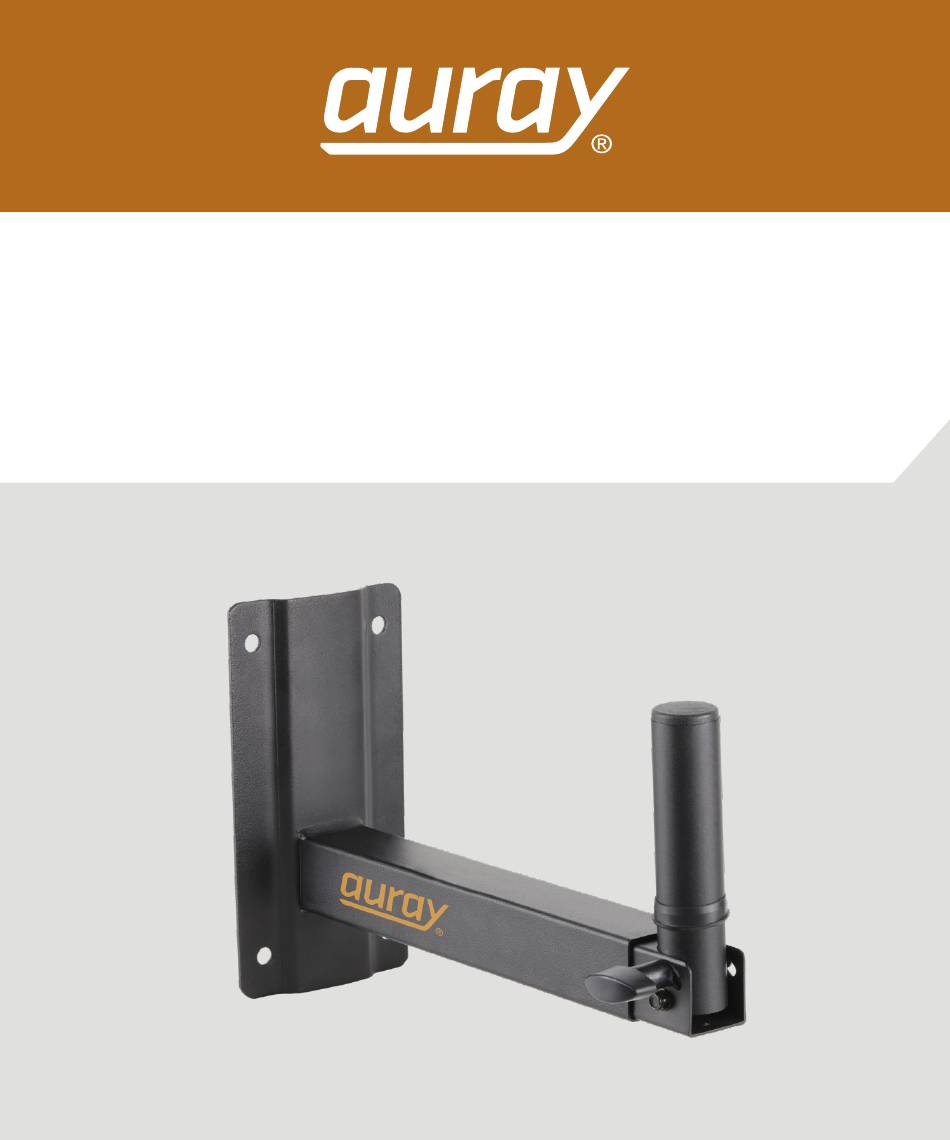

- Page 1 SS-WM20-TL Wall Mount Speaker Bracket with Tilt and Length Adjustment (Pair) Owner’s Manual...
- Page 2 Thank you for choosing Auray. Auray’s heavy-duty SS-WM20-TL wall-mount speaker brackets feature arc-welded steel construction and are built to hold PA speakers with 1⅜-inch holes. The rugged wall-mount design will hold speakers up to 80 pounds and allow you to adjust the arm length and tilt for optimum speaker placement.
-
Page 3: Mounting Instructions
Note: When screwing the plate directly into a wall stud, make sure at least two screws are attached to the stud. Owner’s Manual SS-WM20-TL... -
Page 4: Length Adjustment
Length Adjustment Loosen the locking knob and adjust the length of the arm. Once the arm length is adjusted, tighten the locking knob until the arm is secure. Tilt Adjustment Loosen the tilt lock and move the speaker mount to the appropriate tilt position. -
Page 5: Specifications
80 lb. (36.3 kg) each Length: 12.5 to 20 in. (31.8 to 50.8 cm) Plate Dimensions (H × W × D): 9.25 × 4.75 × 0.5 in. (23.5 × 12.1 × 1.3 cm) Weight: 4.2 lb. (1.9 kg) Owner’s Manual SS-WM20-TL... -
Page 6: One-Year Limited Warranty
For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353. Product warranty provided by the Gradus Group. www.gradusgroup.com AURAY is a registered trademark of the Gradus Group. © 2022 Gradus Group LLC. All Rights Reserved.
