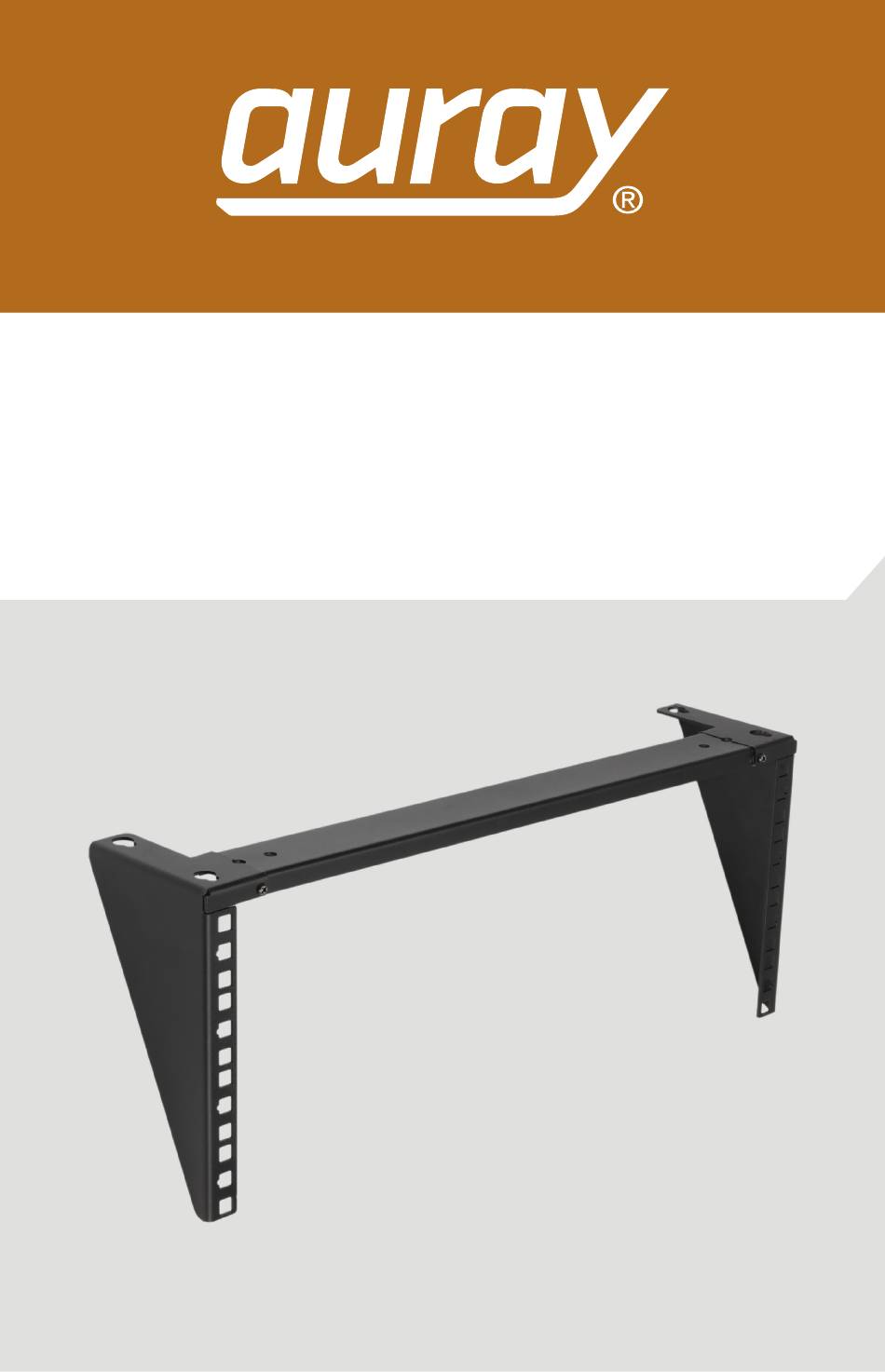

- Page 1 DWR-2U / DWR-4U / DWR-6U Under Desk/Wallmount Rack 2U/4U/6U Owner’s Manual Model DWR-4U Shown...
- Page 2 Thank you for choosing Auray. The Auray Under Desk / Wallmount rack is a space- saver equipment rack that mounts directly to a wall or underneath a desk. It holds equipment like rack- mountable servers, as well as audio and video gear.
- Page 3 Contents Include 2U / 4U / 6U rack Sleeve anchors (×4) Wood screws (×4) Cage nuts (×4) Cage screws (×4) Bubble level Under Desk/Wallmount Rack...
- Page 4 Before You Start The DWR-2U/4U/6U features two different sets of mounting holes. The keyhole slots allow you to mount and remove the rack from its mounting screws. The round holes are designed to be used with the included wood screws. Use these for vertical and under-desk installation.
- Page 5 Masonry and Concrete Wall Installation (Vertical and Horizontal) Position the rack against the wall. Use the included bubble level to ensure the rack is level. 2. Mark the narrow end of the keyholes with a pencil. 3. Drill M10 (10 mm or 3/8 in.
- Page 6 Drywall Installation Important! You will need to use longer screws than the included M5×25 screws to mount the rack to drywall. Be sure to locate the wall studs. If wall studs are not available, use suitable wall anchors. The rack has two round holes that are spaced 16 inches apart for horizontal mounting into 16-on-center drywall studs.
- Page 7 Alternate: Slide one lip into the hole and press the other lip with a slotted screwdriver until it fits into the hole. 2. Use the included cage nut screws to install your equipment into the rack. Specifications Rack Material: Steel 2U, 4U, 6U Rack Spaces: 2U: 4 ×...
- Page 8 One-Year Limited Warranty This Auray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.
