- Page 1 ERS SERIES Steel Equipment Rack Owner’s Manual...

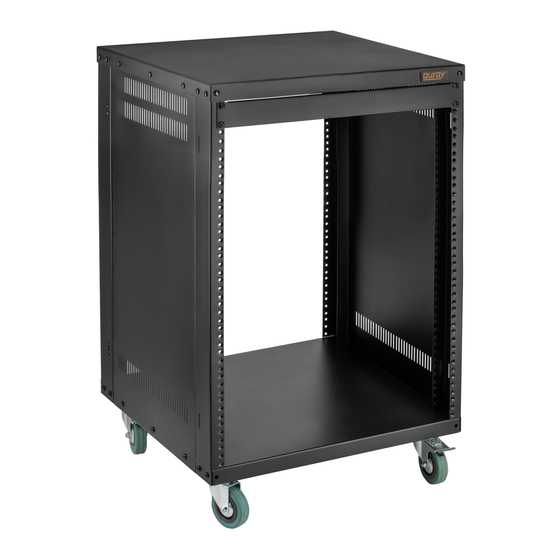

- Page 2 Thank you for choosing Auray. Auray’s equipment racks come in 8-space, 12-space, 16-space, and 22-space configurations. Vented side panels promote airflow throughout the rack. Each model has a maximum weight capacity of 440 lb. They are supported by three-inch casters for easy movement and access to the back of your gear.
- Page 3 10-32 (5 mm) screws and washers 12-24 (6 mm) screws and washers Screwdriver Back plate Bottom plate and 5 mm screw holes casters 6 mm screw holes ×16 ×20 pack ×20 pack * Preinstalled into the corner columns ERS SERIES Owner’s Manual...
- Page 4 If your rack equipment uses 12-24 screws, face the corner column vent toward the side plate. Use this configuration for Installation for 10-32 (5 mm) screws server racks and other Installation for 12-24 (6 mm) screws computer equipment. Owner’s Manual ERS SERIES...
- Page 5 2. Remove the four screws and washers from the top of each corner column, and use them to attach the top plate. Use 10-32 screws and washers to fill in the remaining two screw holes in the top plate. ERS SERIES Owner’s Manual...
- Page 6 Assembling the Rack (continued) 3. Use 12-24 or 10-32 screws and washers to attach the back plate. Owner’s Manual ERS SERIES...
- Page 7 ERS SERIES Owner’s Manual...
- Page 8 For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353. Product warranty provided by the Gradus Group. www.gradusgroup.com AURAY is a registered trademark of the Gradus Group. © 2021 Gradus Group LLC. All Rights Reserved.
