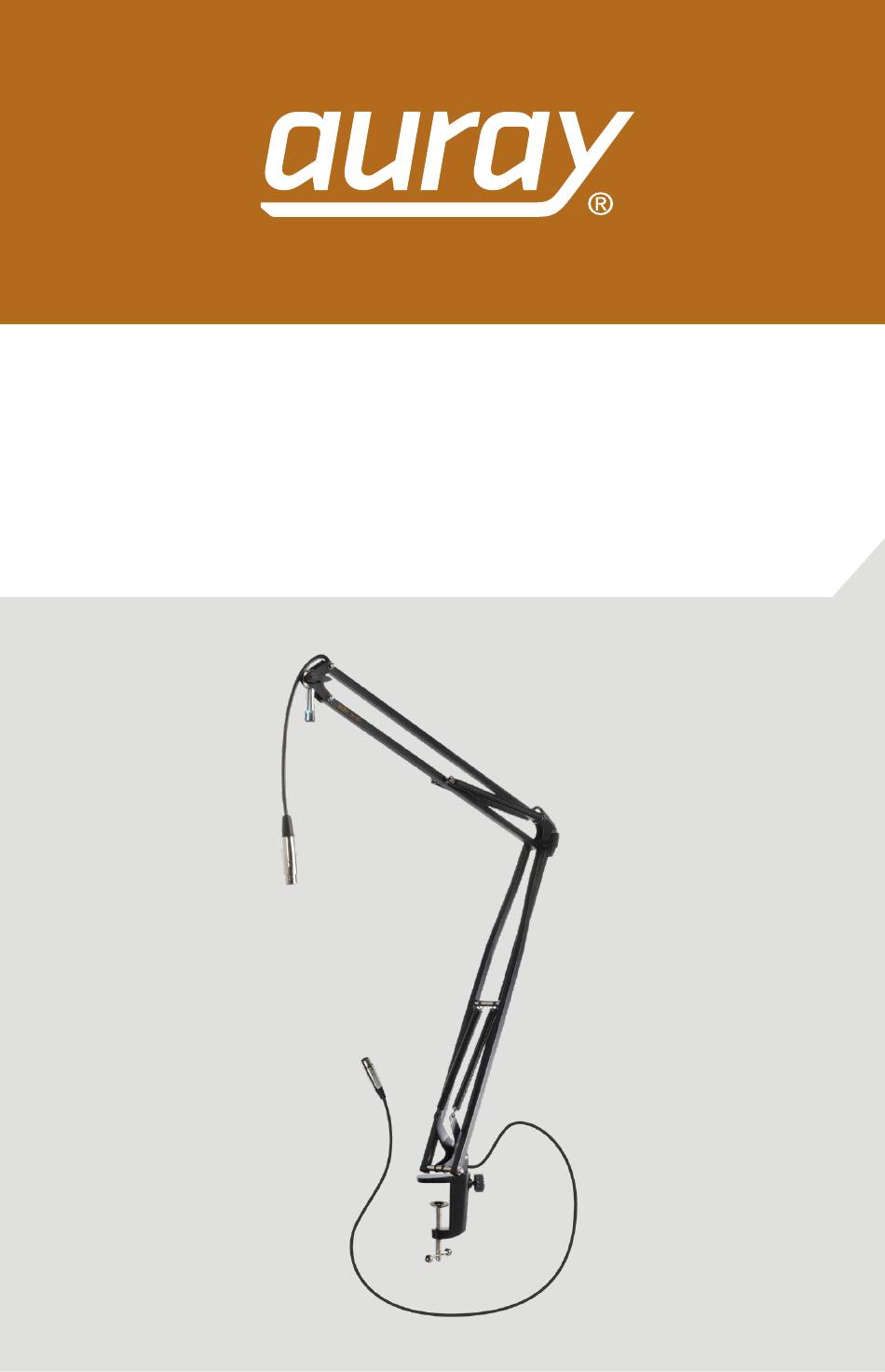

- Page 1 BA-XE4 Broadcast Arm with Integrated XLR Cable Owner’s Manual...
- Page 2 Thank you for choosing Auray. The Auray BA-XE4 articulating broadcast arm features rugged steel dual-arm construction that will give your office or home studio the look and feel of a professional broadcast studio. This durable broadcast arm features an integrated 10-foot XLR mic cable and a 5/8"-27 stud for rapid attachment of your microphone and shock mount assembly that weighs up to 3.5 pounds.
- Page 3 Overview Broadcast Arm Microphone locking knob 5/8"-27 microphone mount Tension knob Integrated XLR microphone cable Base stud C-clamp Socket Locking knob T-handle Tabletop Flange Mount Socket Locking knob Screw holes BA-XE4 Owner’s Manual...
- Page 4 C-clamp’s socket. 5. Position the arm as desired, and tighten the locking knob to secure the arm’s position. Loosen the locking knob to swivel the arm or remove it from the mount. Owner’s Manual BA-XE4...
- Page 5 Connecting the Microphone Once the microphone and shock mount are attached to the broadcast arm, plug the arm’s integrated male XLR connector into the microphone’s female XLR jack. BA-XE4 Owner’s Manual...
- Page 6 Vertical Arm Length: 19.7 in. (50 cm) Arm Reach: 38 in. (96.5 cm) Material: Steel Clamp range: 2.2 in. (5.6 cm) Weight Capacity: 3.5 lb. (1.6 kg) Color: Matte black powder-coat finish Weight: 1.8 lb. arm only (816.5 g) Owner’s Manual BA-XE4...
- Page 7 • Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Auray will not be responsible for any damage. • Use only parts provided by the manufacturer. • Clean the unit with a soft dry cloth.
- Page 8 For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353. Product warranty provided by the Gradus Group. www.gradusgroup.com AURAY is a registered trademark of the Gradus Group. © 2020 Gradus Group LLC. All Rights Reserved.
