auray SVRK Series Owner's Manual

Server rack (4/6/9/12u) (shallow/deep)
Hide thumbs

Advertisement

Quick Links

Download this manual

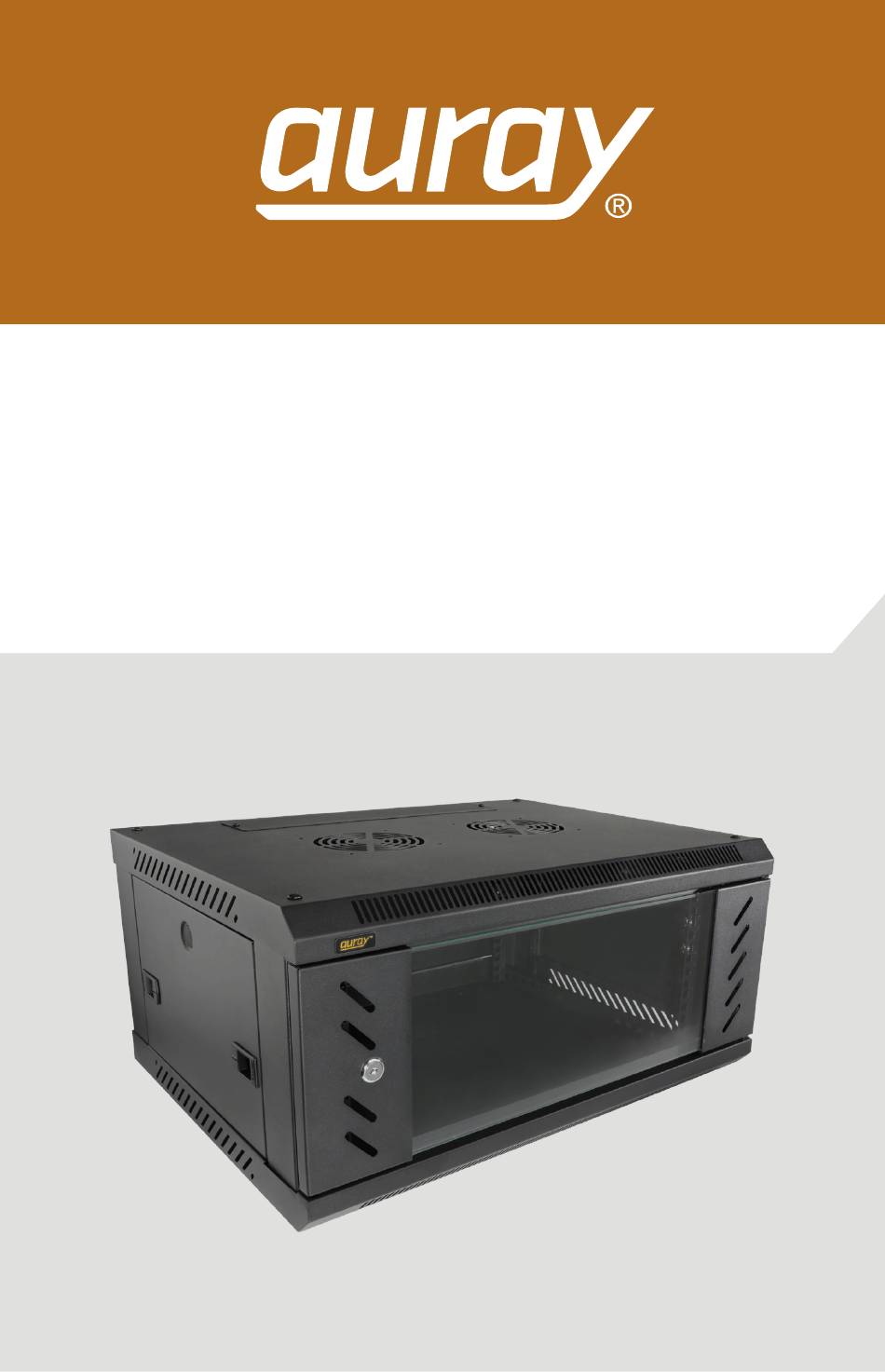

SVRK SERIES
Server Rack
(4/6/9/12U) (Shallow/Deep)
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SVRK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for auray SVRK Series

Summary of Contents for auray SVRK Series

  • Page 1 SVRK SERIES Server Rack (4/6/9/12U) (Shallow/Deep) Owner’s Manual...
  • Page 2 Thank you for choosing Auray. Auray’s server racks come in shallow and deep 4-, 6-, 9-, and 12-space configurations. Vented top and side panels promote airflow throughout the rack, and all racks are configured to accept optional rack fans. Front and back rack rails are included to install rack shelves and large devices that need four-corner support.
  • Page 3 This rack requires an earth ground connection. Do not use this product without an earth ground connection. • Do not overtighten or improperly thread any of the threaded fittings. • All images are for illustrative purposes only. SVRK SERIES Owner’s Manual...
  • Page 4 Bottom panel Top panel Side bracket (×2) Side panel (×2) Right angle vertical rail (×2) Left angle vertical rail (×2) ×2 Front door ×2 Back panel Cable port cover (×2) Wall mount bracket ×2 ×2 ×2 Owner’s Manual SVRK SERIES...
  • Page 5 Keys (×2) Door hinge plugs (×2) Side door plugs (×2) Small washers (×3) For Rack Equipment M6×14 screws (silver) (×10) M6 cage nuts (silver) (×10) Tools Required for Assembly Phillips screwdriver Screw Identifier M6×11 M6×12 M4×10 SVRK SERIES Owner’s Manual...
  • Page 6 If the side doors are preinstalled into the side brackets, press the two locking tabs inward and remove the doors to perform the next step. Owner’s Manual SVRK SERIES...
  • Page 7 The front vertical rails will attach flush to the front of the rack. However, if you want to attach the door, you need to measure how far back you need to place your gear so the door can close. SVRK SERIES Owner’s Manual...
  • Page 8 M6×12 screws. Install the front vertical rails with the printed U-space guide and square holes facing front. Attach the rear rails with the printed U-space guide facing front or back, depending on your needs. Owner’s Manual SVRK SERIES...
  • Page 9 6. With the assembly in the upright position, use the M6 screws to attach the top panel to the side panels. Top screws Top front and (×4) back screws (×4) Bottom front and back (×4) SVRK SERIES Owner’s Manual...
  • Page 10 7. Place the assembly on its side, and attach the side panels to the bottom panel with M6 screws. (×4) Owner’s Manual SVRK SERIES...
  • Page 11 Attaching the Fans The Auray RKFN-1 (sold separately) is a dedicated fan for this server rack. It installs inside the top panel and can be used as exhaust or to blow air into the rack. Air flows toward the fan’s label.

  • Page 12: Installing Devices

    Use the U-space guides printed on the rails to determine where to install the silver M6 cage nuts. 2. Use the included silver M6×14 screws to secure the devices in place. Owner’s Manual SVRK SERIES...
  • Page 13 1. Attach the back panel with the M4×10 screws. 2. Attach the top and bottom cable port covers with the M4×10 screws. SVRK SERIES Owner’s Manual...
  • Page 14 (×4 per side) 3. Attach the side panels by placing the bottom tabs into the slots, and pressing in the top until it locks into place. 4. If needed, press the door plugs into the side door holes. Owner’s Manual SVRK SERIES...
  • Page 15 2. Attach the bracket with M4 screws (×2) Attaching the Door The door attaches to the rack to open from the left. 1. Place the door hinge plugs into the door holes on the right side of the top and bottom panels. SVRK SERIES Owner’s Manual...
  • Page 16 3. Fit the bottom door pin into the hinge plug on the bottom panel. Pull down the top door pin, slide it into position under the top hinge plug, and release the door tab. The door should smoothly swing open and closed. Owner’s Manual SVRK SERIES...
  • Page 17 4. Place the latch onto the end of the cylinder, and attach it with the screw. When you attach the latch, use the key to make sure it’s oriented toward the edge of the rack so the door will lock. SVRK SERIES Owner’s Manual...

  • Page 18: Specifications

    (12.5 kg) SVRK-6U-S: 32 lb. (14.5 kg) SVRK-9U-S: 37.4 lb. (17 kg) SVRK-12U-S: 41.9 lb. (19 kg) SVRK-4U-D: 32 lb. (14.5 kg) SVRK-6U-D: 37.4 lb. (17 kg) SVRK-9U-D: 44.1 lb. (20 kg) SVRK-12U-D: 51.8 lb. (23.5 kg) Owner’s Manual SVRK SERIES...

  • Page 19: One-Year Limited Warranty

    For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353. Product warranty provided by the Gradus Group. www.gradusgroup.com AURAY is a registered trademark of the Gradus Group. © 2023 Gradus Group LLC. All Rights Reserved. SVRK SERIES Owner’s Manual...
