Robe ROBIN 800X User Manual

Robe ROBIN 800X User Manual

Ledwash wireless dmx crmx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROBIN 800X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robe ROBIN 800X

Summary of Contents for Robe ROBIN 800X

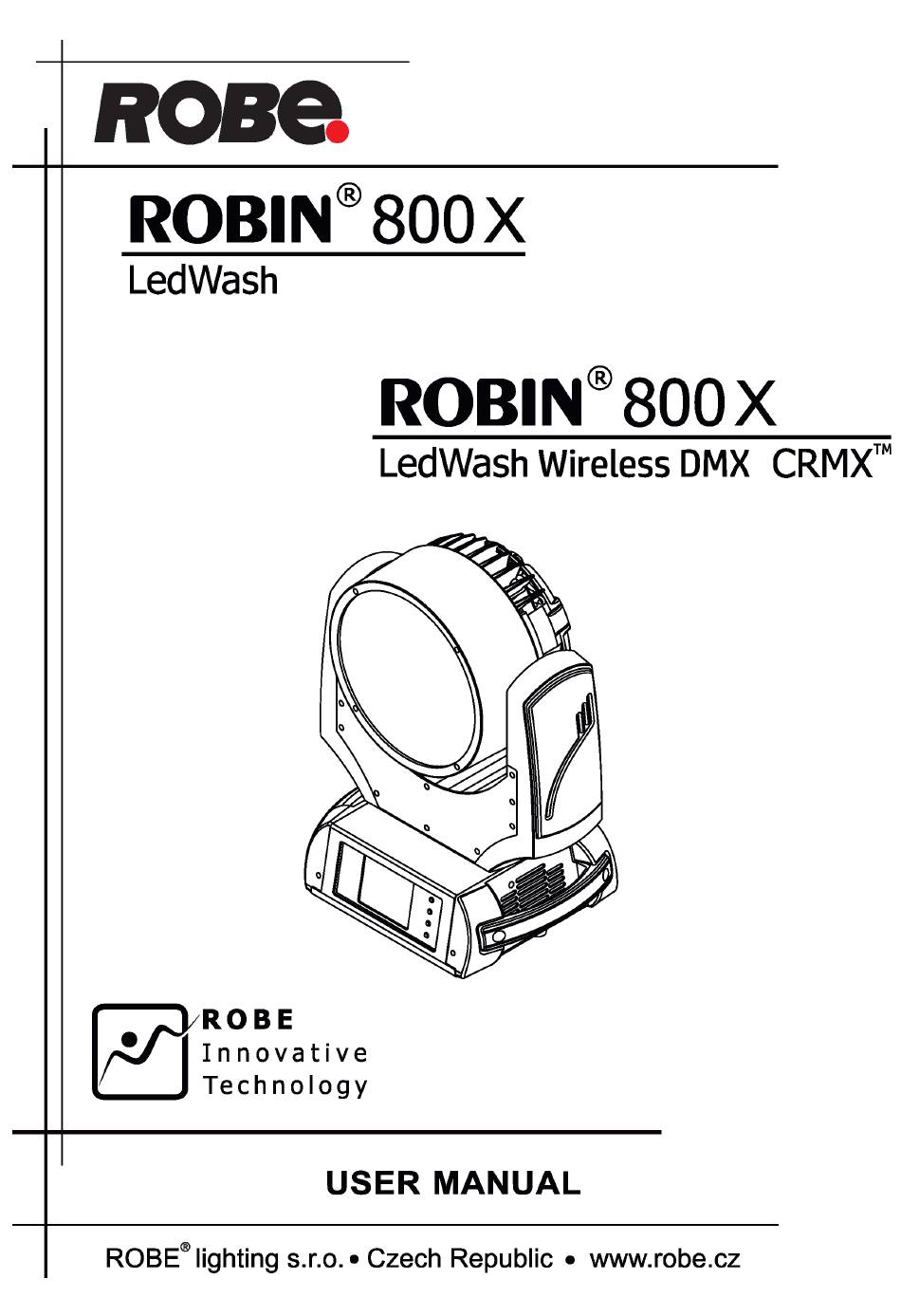

  • Page 1 Version 1.2...

  • Page 2: Table Of Contents

    Robin 800X LEDWash Table of contents 1. Safety instructions ......................3 2. Fixture exterior view ...................... 5 3. Installation........................6 3.1 Connection to the mains .................... 6 3.2 Installing the top hat ....................7 3.3 Installing the front clear transparent cover ..............7 3.4 Rigging the fixture ......................

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Robin 800X LEDWash was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 Avoid brute force when installing or operating the fixture. This fixture was designed for indoor use only, do not expose this unit to rain or use near water. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture or dust.

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Lens array 2 - Carrying handle 3 - QVGA touch screen 4 - Control buttons 5 - Base 6 - Head cover 7 - Fan 8 - Yoke 9 - Ethernet input 10 - 3-pin DMX OUT 11 - 3-pin DMX IN 12 - 5-pin DMX OUT 13 - 5-pin DMX IN...

  • Page 6: Installation

    3.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The Robin 800X LEDWash is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz AC power source from 100-240 Volts. Power cable is enclosed to the fixture.If you need to install a power plug on the power cable to allow connection to power outlets, install a grounding-type (earthed) plug, following the plug manufacturer’s instructions.

  • Page 7: Installing The Top Hat

    3.2 Installing the top hat Disconnect the fixture from mains before top hat installation 1. Go to the fixture menu and set reduced tilt movement (Personality --> Pan/Tilt Setting--> Tilt Movement Range --> reduced). 2.Place the top hat on the head, press locks (1) and turn the top hat counter-clockwise until it snap into slots in the flange.
  • Page 8 Installation of the front clear transparent cover 5. Place the front transparent cover (5) on the head in this way that adjusting pegs (6) will point to slots in the head (7). 6. Turn the front transparent cover (5) anticlockwise until three pins (3) snap into slots (4). 7.

  • Page 9: Rigging The Fixture

    3.4 Rigging the fixture The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
  • Page 10 Rigging via two Omega holders Securing the fixture via one safety wire Securing the fixture via two safety wires 1-Fixture 2-Omega holder 3-Clamp 4-Trust 5-Safety chain The fixture can be also rigged by means of the mounting adaptor (option) for one clamp. In this case the fixture can hang on the truss in horizontal position only, not sideways .

  • Page 11: Dmx-512 Connection

    3.5 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 12: Ethernet Connection

    3.6 Ethernet connection The fixtures on a data link are connected to the Ethernet with ArtNet communication protocol.The control soft- ware running on your PC (or light console) has to support Art-Net protocol. Art-Net communication protocol is a 10 Base T Ethernet protocol based on the TCP/IP.Its purpose is to allow transfer of large amounts of DMX 512 data over a wide area using standard network technology.
  • Page 13 Ethernet / DMX operation Options “Art2DMX” has to be selected from the “Ethernet Mode” menu on the first fixture (connected to the Ethernet) in the fixture chain,next fixtures have standard DMX setting. Connect the Ethernet-input of the first fixture in the data chain with the network. Connect the DMX output of this fixture with the input of the next fixture until all fixtures are connected to the DMX chain.

  • Page 14: Wireless Dmx Operation

    4. Wireless DMX operation The wireless DMX version of the Robin 800X LEDWash is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Person- ality-->...

  • Page 15: Control Menu Map

    5. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing Settings DMX Address 001-512 Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA2 Art2DMX IP Address/NetMask Default IP Address Custom IP Address Net Mask ArtNet Universe 0-255...
  • Page 16 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Wireless Wireless In/XLR Out Pan/Tilt Settings Pan Reverse Off, On Tilt Reverse Off, On Pan/Tilt Feedback Off, On Pan/Tilt mode Time Speed Stand. Tilt Movemement range Reduc. Microphone Sen- 1-10-20 sitivity Blackout Settings...
  • Page 17 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Prog. 3 Play Program Play Program 1 Play Program 2 Play Program 3 Edit Program Edit Program 1 Start Step 1-100 End Step 1-100 Edit Program Steps Step 1 Pan (0-255) Dimmer Fine (0-255)

  • Page 18: Led Zone Order

    5.1 LED zone order...

  • Page 19: Control Menu

    6. Control menu The Robin 800X LEDWash Light is equipped with the QVGA Robe touch screen with battery backup which allows to set the fixture´s behaviour according to your needs, obtain information on its operation, test its various parts and lastly program it, if it has to be used in a stand-alone mode.

  • Page 20: Tab " Address

    Note: The green icon at the top right corner of the screen indicates the level of the display battery charging. If the whole icon is green, the battery is fully charged while the red icon indicates exhausted battery. The battery charges during fixture operation, its charging lasts cca 6 hours.

  • Page 21: Tab "Information

    Resetable Hours - The item shows the number of the operation hours that the Robin 800X LEDWash has been powered on since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"...

  • Page 22: Tab "Personality

    6.3 Tab "Personality" User mode - The Robin 800X LEDWash allows you to recall up to 3 user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing”...
  • Page 23 "Pan/Tilt speed, Pan/Tilt time". Tilt Movement Range - Use this menu to set the range of the tilt movement of the fixture´s head Stand. – Standard range 0-300°. Reduc. - Reduced range 0-210°. This option must be selected when the top hat is installed otherwise fixture´s head rans into base.

  • Page 24: Tab "Manual Control

    Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin 800X LEDWash offers 3 free programs, each up to 100 steps.

  • Page 25: Tab "Service

    Meaning of the icons used in the "Edit Program" menu: - moves down on the next page - saves adjusted values and leaves menu - moves up on the previous page - saves values to the current step and copy them to the following prog.
  • Page 26 If you use the Robe Universal Interface, connect a USB port of your computer with the Robe Universal Interface by means of the USB cable and DMX input of the fixture with the DMX output of the Robe Universal Interface via a DMX cable.

  • Page 27: Rdm

    6. Select correct "COM " number if you use a Flash cable RS232/DMX or select "Robe Universal Interface 1 " if you use the Robe Universal Interface/Robe Universal Interface WTX and then click on the "Connect" button. 7. If the connection is OK, click the “Start Uploading" button to start software uploading. It will take several minutes to perform software update.

  • Page 28: Error And Information Messages

    DEVICE_HOURS PARAMETER_DESCRIPTION ROBE_DMX_INPUT ROBE_WIRELESS_UNLINK 8. Error and information messages Occurred errors during fixture operation are signalled by the yellow warning icon at the bottom line of the screen: Touch the warning icon or press the [ESCAPE] button to display error messages. List of error and information messages: Temper.Sensor Error The message informs you that the communication betwen the head temperature sensor and the main pro-...

  • Page 29: Technical Specifications

    9. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....supply 100-240V, 50/60Hz Fuse:........T 4 A Power consumption:....430W (power factor=0.98) Optic Light source: 37 RGBW multichips 3 zones with individual colour control of each Typical Lumen Maintenance: 70% @ 60,000 hours LED life expectancy: 60.000 hours RGBW or CMY colour mixing +CTC Beam shaper 8°...
  • Page 30 Wireless DMX/RDM module Compliance with USITT DMX-512 (1986 & 1990) and 512-A Full DMX fidelity and frame integrity Auto sensing of DMX frame rate and frame size <5ms DMX latency Operational frequency range of 2402-2480 MHz Producer: LumenRadio Connection DMX data in/out: Locking 3-pin and 5-pin XLR AC power input: Chassis connector Neutrik PowerCon TRUE 1, NAC3MPX Ethernet: RJ45 Rigging...
  • Page 31 Mounting adaptor for one Omega holder Accessories 1 x Omega Adaptor CL-regular 2 pcs in box (P/N 10980033) 1 x Front transparent cover (P/N 99013603) Beam Shaper 8°x26° (P/N 99013549) /installed on the fixture/ 1 x Power cable including powerCON TRUE1 In connector Optional accessories Top Hat ROBIN 600/800 LEDWash(black) (P/N 10980101) Top Hat ROBIN 600/800 LEDWash(white) (P/N.10980103)

  • Page 32: Maintenance And Cleaning

    10. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light output will be significantly reduced. Regular cleaning will not only ensure the maximum light output, but will also allow the fixture to function reliably throughout its life.

  • Page 33: Photometric Diagrams

    11. Photometric diagrams (transparent front cover)
  • Page 36 Note: Beam shaper works at min. zoom best...
  • Page 37 Specifications are subject to change without notice. September 11, 2021 Copyright © 2012-2021 Robe Lighting - All rights reserved Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic...
  • Page 38 DMX protocol Robin 800X LEDWash - DMX protocol, version 1.1 Mode/Channel Type of Value Function control Pan (8 bit) 0-255 Pan movement by 450° (128=default) proportional Pan Fine (16 bit) proportional 0-255 Fine control of pan movement (0=default) Tilt (8bit)
  • Page 39 DMX protocol Mode/Channel Type of Value Function control 210 - 239 Reserved Disabled "Quiet mode" of fans step To activate "Quiet mode ", stop in range of 241-255 at least 3 sec. 241 - 255 "Quiet mode" of fans: fans noise from min. to max. proportional Red/Cyan (8 bit)** - all zones 0-255...
  • Page 40 DMX protocol Mode/Channel Type of Value Function control 0-255 Colour saturation control - fine (255=default) proportional Green/Magenta (8 bit)** - zone 2 0-255 Colour saturation control - coarse 0-100% (255=default) proportional Green/Magenta fine (16 bit)** - zone 2 0-255 Colour saturation control - fine (255=default) proportional Blue/Yellow (8 bit)** zone 2 0-255...
  • Page 41 DMX protocol Mode/Channel Type of Value Function control White 4200 K step 10-12 White 5600 K step 13-15 White 8000 K step Blue (Blue=full, Red+Green+White=0) step 17-55 Red=0, Green->up,Blue =full, White=0 proportional Light Blue (Red=0, Green=full, Blue =full, White=0) step 57 - 95 Red=0, Green=full, Blue->down, White=0 proportional...
  • Page 42 Fine dimming (0=default) proportional **Select RGB or CMY mixing mode on channel "Power/Special functions" . *** Halogen lamp effect is simulated during dimming Copyright © 2020 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice...
  • Page 43 Robin 800X LEDWash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White 1-2 (White 2700K) 3 (White 2700K /Hal.mode/) 4-5 (White 3200K) 6 (White 3200K /Hal.mode/) 7-9 (White 4200K) 10-12 (White 5600K) 13-15 (White 8000K) Page 1...
  • Page 44 Robin 800X LEDWash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 2...
  • Page 45 Robin 800X LEDWash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 3...
  • Page 46 Robin 800X LEDWash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White Page 4...
  • Page 47 Robin 800X LEDWash - Virtual Colour Wheel Scale* Virtual Colour Wheel Green Blue White **** **** **** **** 248-255 (Rainbow+ zone effects) * Colour scale as an illustration only Page 5...
