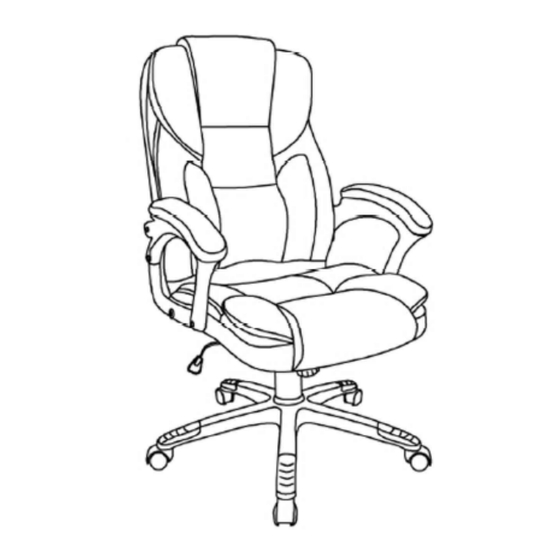

Furniture of America Sibley CM-FC624 Assembly Instructions Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Assembly Instructions
CM-FC624
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
(Included)
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
DIFFICULT
EASY
Page 1 of 6
Rev.14-12-10

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sibley CM-FC624 and is the answer not in the manual?

Questions and answers

Related Manuals for Furniture of America Sibley CM-FC624

Summary of Contents for Furniture of America Sibley CM-FC624

  • Page 1 Assembly Instructions CM-FC624 ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some products, two persons are recommended.
  • Page 2 Page 2 of 6...
  • Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Parts List (Continued) #1 x 1 pc #8 x 5 pcs Backrest Caster #2 x 1 pc Seat Hardware List #3R x 1 pc...
  • Page 4 Insert the 5 casters (#8) into the 5-star base (#4). Then insert the gas lift cylinder (#7) into the 5-star base (#4) and the cylinder cover (#6) over the gas lift cylinder (#7). Turn right (clockwise) to tighten #B x 4 pcs #C x 4 pcs Align the seat plate with handle (#5) with the pre-drilled holes...
  • Page 5 Place the assembled seat plate with handle (#5) onto the assembled gas lift cylinder (#7). Make sure the parts are firmly secured. Align the right armrest (#3R) and the left armrest (#3L) with the pre-drilled holes on the sides of the seat (#2). Insert 4 bolts (#A) through the pre-drilled holes on the armrests and secure those bolts using the Allen wrench (#E) to lock them with the seat (#2).
  • Page 6 Align the backrest (#1) with the pre-drilled holes of the right armrest (#3R) and the left armrest (#3L). Insert 4 bolts (#A) through the pre-drilled holes on the armrests and secure those bolts using the Allen wrench (#E) to lock them with the backrest (#1). Place the 4 covers (#D) over the bolts (#A).
