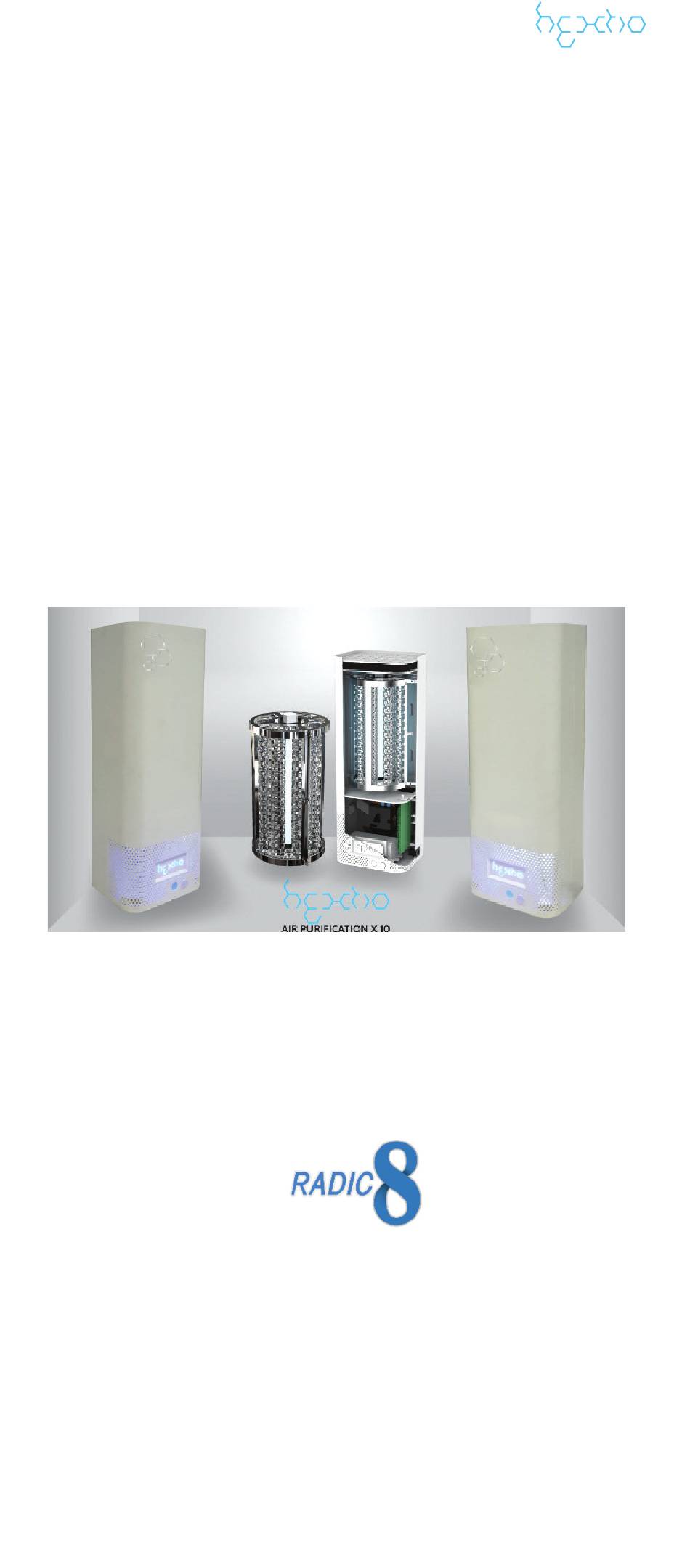

- Page 1 Air Purifier and Sterilzer Hextio USER GUIDE AND INSTRUCTIONS...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ················································· 2 Operation Instructions ···························································· 5 What’s Included and Optional Parts ······································· 6 Key Parts and Components ··················································· 7 Hextio Functions ····································································· 8 Filter Cleaning and Replacement ········································· 12 How to Replace the Reactor Cell ········································· 13 How to Maintain and Clean the IAQ Sensor ························... -
Page 3: Important Safety Instructions
Important Safety Instructions The following instructions are provided to ensure your safety and to protect the unit from accidental damage. Read these instructions – All the safety and • operating instructions should be read before this product is operated. Keep these instructions – The safety and •... - Page 4 Electrical Safety The unit should only be connected to a main power • supply with voltage that matches that specified. To prevent overload, do not share the • same power supply socket with too many other electronic components. Do not place the power cord where •...
- Page 5 Operation Safety Keep the product away from flammable gases and • liquids, candles and open flames. Do not install near any heat sources • such as radiators, stoves, or other apparatus that produce heat. Do not attempt to repair or replace •...
-
Page 6: Operation Instructions
Operation Instructions Do not use while cleaning the room • After cleaning, it is important to properly ventilate the room before using Hextio. Not to be used while cooking • Oils released while cooking may reduce the lifespan of the sterilizing module. -
Page 7: What's Included And Optional Parts
What’s Included and Optional Parts Body and Accessory Main Body Bracket for Wall Mounting Remote Control Basket for Remote Control Packet of 2 Carbon Filters DC 12V Adapter User Guide and Sticker Optional Parts Extra Reactor Cell Fragrance Filter Case Fragrance Filter... -
Page 8: Key Parts And Components
Key Parts and Components Carbon Filter UVC Lamp Hexagon TiO2 Filter Rubber Holder Reactor Tray Mirrored Chamber BLDC Sirocco Fan Dust/Germ/VOC Sensor UVC Ballast Logo LED Remote Control Sensor Switch Control Board... -
Page 9: Hextio Functions
Hextio Functions Logo LED Power Switch DC Jack 5.5 x 2.5mm Remote Sensor Display and Alarm – the Logo LED functions The mode is indicated by the color of the Logo LED as follows: 1. Blue – automatic mode. Indicates good air quality and normal fan speed of 20% 2. - Page 10 Rmote Control Automatic Operation Mode: When the unit is switched on, either by the power switch on body or the on/off button on the remote control, the product is in automatic mode. Blue LED lights are displayed and the fan speed is normal (20%). If dust, germs or VOC’s are detected by the sensor, the fan switches to full power and red LED lights are displayed.
- Page 11 Press “MANUAL” button. ON/OFF SPEED MODE MANUAL SLEEP www.hextio.net Press “SPEED” “+” or “–” button”. ON/OFF SPEED MODE MANUAL SLEEP www.hextio.net...
- Page 12 Sleep Mode: When sleep button is pressed, the fan switches to very low (10%) and all LED lights are switched off. Press “SLEEP” button. ON/OFF SPEED MODE MANUAL SLEEP www.hextio.net Indirect LED Light In addition to the Logo LED, there are also indirect LED lights inside Hextio.
-
Page 13: Filter Cleaning And Replacement
Filter Cleaning and Replacement The TiO2 Carbon Filter One side of the carbon filter is coated with TiO (titanium dioxide) to increase the photo catalytic power of Hextio. This side (shown on the right) is pale grey / silver and should be placed face down. -
Page 14: How To Replace The Reactor Cell
How to Replace the Reactor Cell Reactor Cell Mirrored chrome casing for optimum reflectivity Super UVC lamp 9 × hexagon tube filters- Screw fixing / release points TiO2 chrome nano coated Working life = 8000 hours • Alarm when change needed •... - Page 15 2. Detach 4 rubber feet and loosen 4 screws. 3. Open the body and loosen 4 screws surrounding Reactor Cell. 4. Detach wire connector. 5. Replace with new reactor cell and assemble in reverse order. The used reactor cell is fully recyclable, as a consumer it is your responsibility to ensure it is disposed of properly.
-
Page 16: How To Maintain And Clean The Iaq Sensor
How to Maintain and Clean the IAQ Sensor The IAQ sensor is a very delicate instrument that uses light scattering to detect pollution. It therefore needs a clean lens to work effectively. Regular maintenance (every 6 months) should be carried out to keep the lens clean. Important –... -
Page 17: How To Replace The Fragrance Filter
How to Replace the Fragrance Filter To open the Fragrance Filter case, grip the lid and pull firmly. You may need to inset a thin object between the base and lid to release the inner hooks. Please take care if using a knife. -
Page 18: Troubleshooting
Troubleshooting Before you call for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defect in workmanship or materials. Problem – Product will not turn on. Possible Cause Is power cord correctly connected to outlet? Solution Ensure power cord is properly inserted into Hextio and... - Page 19 Possible Cause Check if indoor air is seriously contaminated? Solution Ventilate properly, minimum 30 minutes. Possible Cause Check if airflow is restricted? Solution Make sure there is sufficient clearance around the product and that the air inlet and outlet are not blocked by furniture, curtains etc.
-
Page 20: Customer Services
Customer Services In this manual, you will find a card containing details of your limited warranty and contact details for your local customer services center, to whom all enquiries and warranty claims should be directed. All warranties are rendered void and the cost of repair will be payable by the user in the case of: Damages caused by putting foreign objects (such as water, soft drink, coffee, fragrance oils... -
Page 21: Specifications
Specifications Radic8 reserves the right to make changes to the exterior, design or specifications of the product without prior notice. Description Air purifier Brand Hextio Model No HX-100 Elec. Power DC 12V 1.5A Elec. Consumption 15 watt Net Weight 1.2 Kg Gross Weight 1.8 Kg... - Page 22 Sales & Design: Radic8 Ltd Man & Scythe Building 6 - 8 Churchgate Bolton, BL1 1HL Tel: +44 (0)1204 238823, E-mail: info@radic8.com, www.radic8.com Manufacturer: INBair Co., Ltd 3F, 15, Beotkkot-ro 12-gil,Geumcheon-gu, Seoul, Korea Tel: +82-31-811-1000, E-mail: inbair01@naver.com, www.inbair.com Made in Korea, Designed in England...
