Summary of Contents for Radic8 HEXTIO

Page 2: Table Of Contents
Table of Contents 1. Hextio ..............................1 2. Safety and Regulation ..........................2 2.1. Safety Information ........................... 3 2.2. Regulatory Information ........................5 3. Warranty..............................8 4. Product Overview ........................... 9 4.1. Package Contents ......................... 10 4.2. Hextio ............................11 4.3.
Page 4: Safety And Regulation
Hextio - 1_en 2. Safety and Regulation Radic8 will not be responsible for any injury or loss resulting from the user’s failure to operate this device in accordance with its user manual, as updated from time to time, available on www.radic8.com...
Page 5: Safety Information
• Do not immerse any part of the device in liquid or allow liquid or spray aerosols to enter the device. • In the event of smoke, unusual odors, or strange noises, switch off the device immediately and disconnect from power. Contact your local Radic8 distributor for support. • Dispose of device in accordance with local regulations.
Page 6 Radic8 Hextio - 1_en • EU ONLY: This appliance can be used by children aged 8 years and over, as well as persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 7: Regulatory Information
Use Environment The Radic8 Hextio is an air purifier intended for personal use only and is not classified as a medical device. Hextio should be used indoors and must not be placed outdoors or anywhere that it will be exposed to water, rain, or the elements.
Page 8 Radic8 Hextio - 1_en Indicates that the transport package shall be kept away from rain and in dry conditions. Indicates that the contents of the transport package are fragile and that the package shall be handled with care. Indicates that the package shall be handled with care.
Page 9 Radic8 Hextio - 1_en interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
Page 10: Warranty
• If Hextio is not shipped with a warranty card, please immediately contact your local Radic8 distributor about your warranty and follow your local Radic8 distributor’s instructions. • If Hextio is shipped with a warranty card, please immediately refer to this warranty card for warranty claim information and follow the instructions.
Page 11: Product Overview

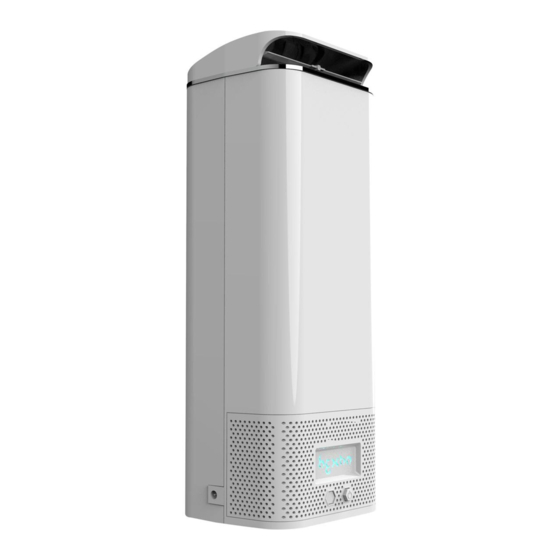

Hextio is your personal clean air companion. It is the only desktop device featuring the same Radic8 technology used by industries around the world for safe filtration and deactivation of airborne pollutants. Hextio is intended to be used as a personal clean air delivery device, situated on a desk, counter, or bedside table only.
Page 12: Package Contents
Hextio Airflow guide Remote control AC adaptor (batteries not included) Quickstart Guide Warranty Card* *(Included only if Hextio is purchased directly from Radic8. Refer to the warranty section of this user manual) Copyright © 2022 Radic8 Page 10 of 31...
Page 13: Hextio
4.2. Hextio Power button Switches the device on or off Hextio light Indicates the mode of the device. Hextio light color descriptions Air intake / The backlight shines through the air intake holes and indicates the status of the backlight device.
Page 14 Radic8 Hextio - 1_en Top filter grid Secures the hybrid filter in place Hybrid filter Dual carbon and particulate matter air filter Bottom filter Supports the hybrid filter grid Copyright © 2022 Radic8 Page 12 of 31...
Page 15: Remote Control
Switches the device on or off Fan speed up Increase the fan speed when Hextio is in Manual mode Fan speed down Decrease the fan speed when Hextio is in Manual mode LED button Switches backlight and Hextio light on or off...
Page 16: Installation
Before installation, ensure you have read this manual and understand the operational requirements of the device. 1. Place Hextio upright on a desk, counter, or bedside table: 2. Attach the airflow guide by carefully pressing it on to the top of the device and allowing it to click into place: 3.
Page 17 Radic8 Hextio - 1_en cover. B) Insert two AAA batteries (not included) into the battery compartment. Ensure the negative terminals (marked by ‘–‘ symbols) on the batteries make contact with the springs in the battery compartment. C) Replace the battery compartment cover.
Page 20: Operation
Auto mode is indicated by either a blue or gold backlight that slowly fades in and out. In Auto mode, Hextio detects the quality of the air at its intake with a built-in volatile organic compound (VOC) sensor and automatically sets the fan speed: •...
Page 21 Radic8 Hextio - 1_en • When low levels of VOCs are detected, the Hextio light will return to blue or gold. The fan speed will decrease for quieter operation. While in Auto mode, Hextio’s fan speed cannot be changed. Manual mode Manual mode is indicated by a green Hextio light.
Page 22 (slowly blue backlight (slowly blue backlight (slowly (quickly flashing) fading) fading) fading) Hextio is in Auto mode. Reactor Chamber Hextio is in Auto mode Higher levels of VOCs Hextio is in Manual mode replacement warning (see detected Maintenance)
Page 23: Maintenance
Before handling the device to perform maintenance, lightly mist the body with an 85% alcohol-based (or equivalent) sanitizer. Maintenance of your Hextio and replacement of consumables is essential to ensure the longevity of the device. Ensure the device is switched off and unplugged before conducting any maintenance.
Page 24: Replacing The Filter
Hextio - 1_en 7.1. Replacing the Filter Hextio features a hybrid particulate matter and carbon filter, which is located at the top of the device. This filter should be replaced after six months (approximately 4,000 hours) of use, depending on the environment in which the device is used.
Page 25 Radic8 Hextio - 1_en 4. Lift out the old hybrid filter and safely dispose of it: 5. Align the new hybrid filter. Ensure the registration tab in the corner of the hybrid filter lines up with the slot in the bottom filter grid: Copyright ©...
Page 27 Radic8 Hextio - 1_en 8. Carefully replace the airflow guide. Press down firmly until it clicks into place: 9. Insert the DC plug and switch on power at the wall socket. Disposing of the Filter After the old filter has been removed, we recommend lightly misting the used filter material with an 85% alcohol-based sanitizer.
Page 28: Replacing The Reactor Chamber
The Reactor Chamber must be replaced after 8,000 hours of use by a Radic8-approved technician only. Please contact your local Radic8 distributor or a Radic8-approved technician to have the Reactor Chamber replaced. Radic8 will provide the necessary servicing information and guidance as requested by the approved technician.
Page 29: Cleaning The Device
7.3. Cleaning the Device Turn off the power at the wall socket and remove the DC plug from Hextio. Every week, or when the device is dirty, use a damp dust cloth to wipe down the body of the device to remove excess dust.
Page 30: Troubleshooting
Radic8 Hextio - 1_en 7.4. Troubleshooting Please check the following troubleshooting instructions and contact your local Radic8 distributor or Radic8-approved technician if the issue is not resolved. Problem Solution • Ensure the AC and DC plugs are securely inserted into the relevant input or The device will not socket.
Page 31: Specifications
Radic8 Hextio - 1_en 8. Specifications Specifications and design of Hextio are subject to change without notice. Technical Specifications Firmware Version: v4.3 Model: Hextio Description: Air Purifier Voltage: Current: Typical Power: 11W * Weight: 1.33kg (2.93lbs) Dimensions (mm): 330 (H) x 126 (W) x 106 (D) Dimensions (in): 13 (H) x 4.96 (W) x 4.17 (D)
Page 32 Radic8 Hextio - 1_en * Measured at highest fan speed. ** Sound pressure level calculated from sound power level as tested against ISO 3744. *** Dependent on operating environment. Copyright © 2022 Radic8 Page 30 of 31...
Page 33: Support
Radic8 Hextio - 1_en 9. Support For hardware support, please contact your local Radic8 distributor or a Radic8-approved technician. Radic8 PTE Ltd 9 Raffles Place 27 – 00 Republic Plaza Singapore, 048619 info@radic8.com The model and serial number can be found on the label on the device.
