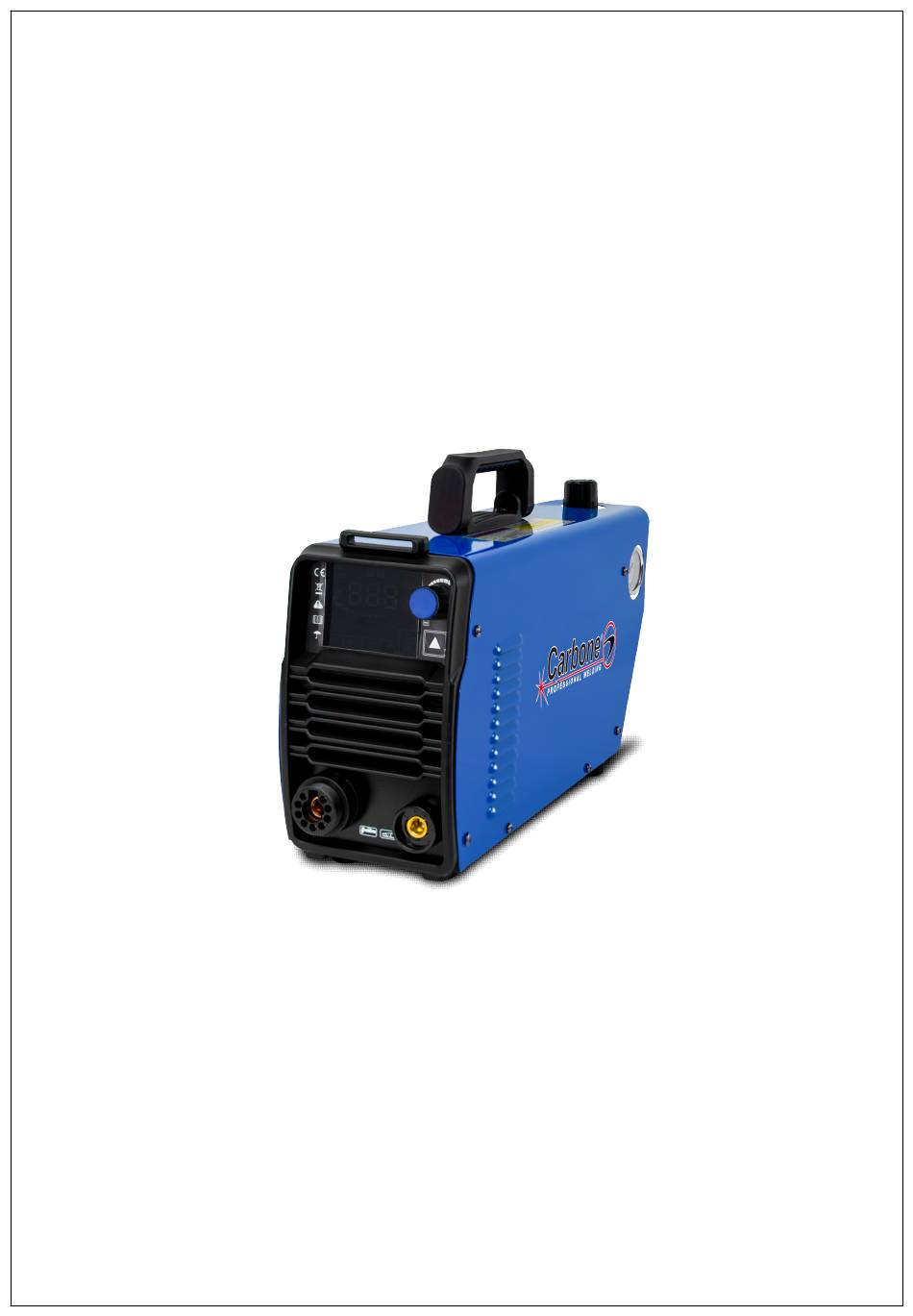

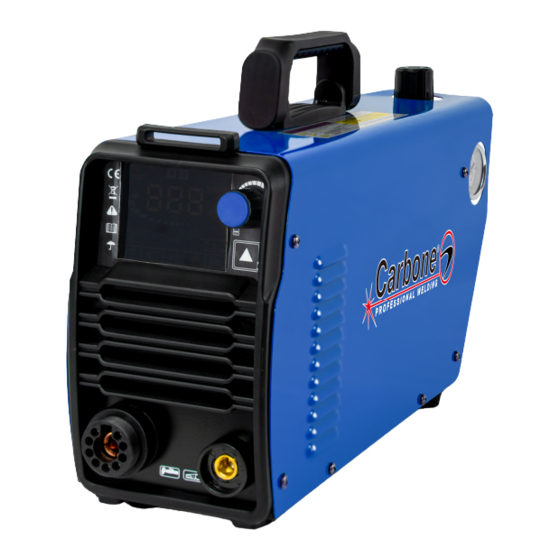

- Page 1 OWNER'S MANUAL CUT-40K LCD (BCUT40) CUT SERIES INVERTER PLASMA CUTTER - 0 -...
-
Page 2: Table Of Contents
CONTENTS 1. Safety warning............................1 2. Machine description..........................2 3. Technical parameters table........................3 4. Panel function instruction........................5 5. Installation instruction..........................6 6. Notes or preventive measures......................7 7. Questions to be run into during cutting....................8 8. Maintenance............................9 9. Notes before checking........................9 10. -
Page 3: Safety Warning
1.SAFETY WARNING On the process of welding or cutting, there will be possibility of injury, so please take protection into consideration during operation. For more details please review the Operator Safety Guide, which complies with the preventive requirements of the manufacturer. Electric shock——May lead to death ！！... -
Page 4: Machine Description
2.MACHINE DESCRIPTION The welding machines are rectifiers adopting the most advanced inverter technology, which can apply in plasma cutting system of using pressing air. The development of inverter welding equipment benefits from the development of the inverter power supply theory and components. -
Page 5: Technical Parameters Table
3.TECHNICAL PARAMETERS TABLE Model CUT-40K LCD Parameters AC110V 10% AC220V 10% Input voltage （ V ） Rate input current （ A ） No-load voltage （ V ） 20-30 20-40 Current Range （ A ） 88-92 88-96 Rate output voltage （ V ） Duty cycle （... -
Page 6: Panelfunction Instruction
4.PANELFUNCTION INSTRUCTION Front Panel Instruction of CUT 40 4.1 Turn on the switch on the back panel, while at the meantime, the digital display lights up and the fan runs 4.2 open the gas valve, adjust the gas pressure and gas flow to rated standard. (refer to “technical parameter table) 4.3 Press the Torch switch, the pilot arc will be ignited from the nozzle 4.4 setting the suitable current according to the workpiece thickness and process requirements... -
Page 7: Installation Instruction
5.INSTALLATION INSTRUCTION The machine is equipped with power voltage compensation device. When the power voltage fluctuates between±15% of rated voltage, it still can work normally. When the machine is used with long cables, in order to prevent voltage form going down, bigger section cable is suggested. If the cable is too long, it may have great affluence on the arc-striking or other performance of cutting system, e.g. -
Page 8: Notes Or Preventive Measures
6.NOTES OR PREVENTIVE MEASURES 1. Environment 1 ） The machine can perform in environment where conditions are dry with a dampness level of max 90%. 2 ） Ambient temperature is between -10 to 40 degrees centigrade. 3 ） Avoid welding in sunshine or drippings. Do not let water enter the gas. 4 ）... -
Page 9: Questions To Be Run Into During Cutting
7.QUESTIONS TO BE RUN INTO DURING CUTTING Fittings, welding materials, environment factor, supply powers maybe have something to do with welding. User must try to improve welding environment. A 、 Cutting surface is rough, poor cutting result: The machine may be not well operated. You can check it as follow: Make sure the compressed air supply has enough pressure which is not less than 0.3MPa （... -
Page 10: Maintenance
8.MAINTENANCE WARNING ： Power must be turned off for all checking and maintenance, before opening the housing, make sure the power plug is disconnected. Remove dust by dry and clean compressed air regularly, if welding machine is operating in environment where is polluted with smokes and pollution air, the machine need removing dust everyday. -
Page 11: Troubleshooting And Fault Finding
10.TROUBLESHOOTING AND FAULT FINDING Notes: The following operations must be performed by qualified electricians with valid certifications. Before maintenance,please contact with us for professional suggestion. Fault symptom and solutions of CUT40 Fault symptom Remedy Digitial Display meter is on, fan is not working and 1. -
Page 12: Explosion Drawing
11.Explosion drawing Name consumables Name consumables Radiator 1 Stand Main Board Insulating Plate Reactance Rectifier Bridge Rectifier diode IGBT Base Plate Glazed resistance Buckle Knob Reducing Valve European Type Quick Power Switch Connector European Type Machine Cover Torch connector Plastic Front Panel Plastic Handle Front Panel Insulating Plate...
