Marca: Carbone Professional Welding
Tipo Soldadura:
IGBT INVERTER MIG/MAG (GMAW) – MMA (SMAW)
Voltaje de Entrada: 1x220V/230V/240V 50/60Hz
No-load Voltaje: 55~75V
Corriente nominal de Entrada: 58A
Potencia nominal: 6.6 KVA
Rango de ajuste voltaje: 14±3V~23.5±3V
Ciclo de trabajo MIG: 35% @ 180A/23V
60% @ 150A/21.5V, 100% @ 120A/20V
Rango de ajustes amperaje: 30~180A (MIG/MAG)
Capacidad de alambre: (0.6, 0.8, 0.9, 1.0) mm
(. 023"-. 030"-. 035"-. 040")
Tipos de alambre: alambre sólido (con gas), tubular (sin gas)
Soldadura con alambre tubular sin gas (Flux cored):
Cambiar la polaridad interna de la máquina a DCEN negativo
y Arco piloto de reinicio
Maquinas de soldadura

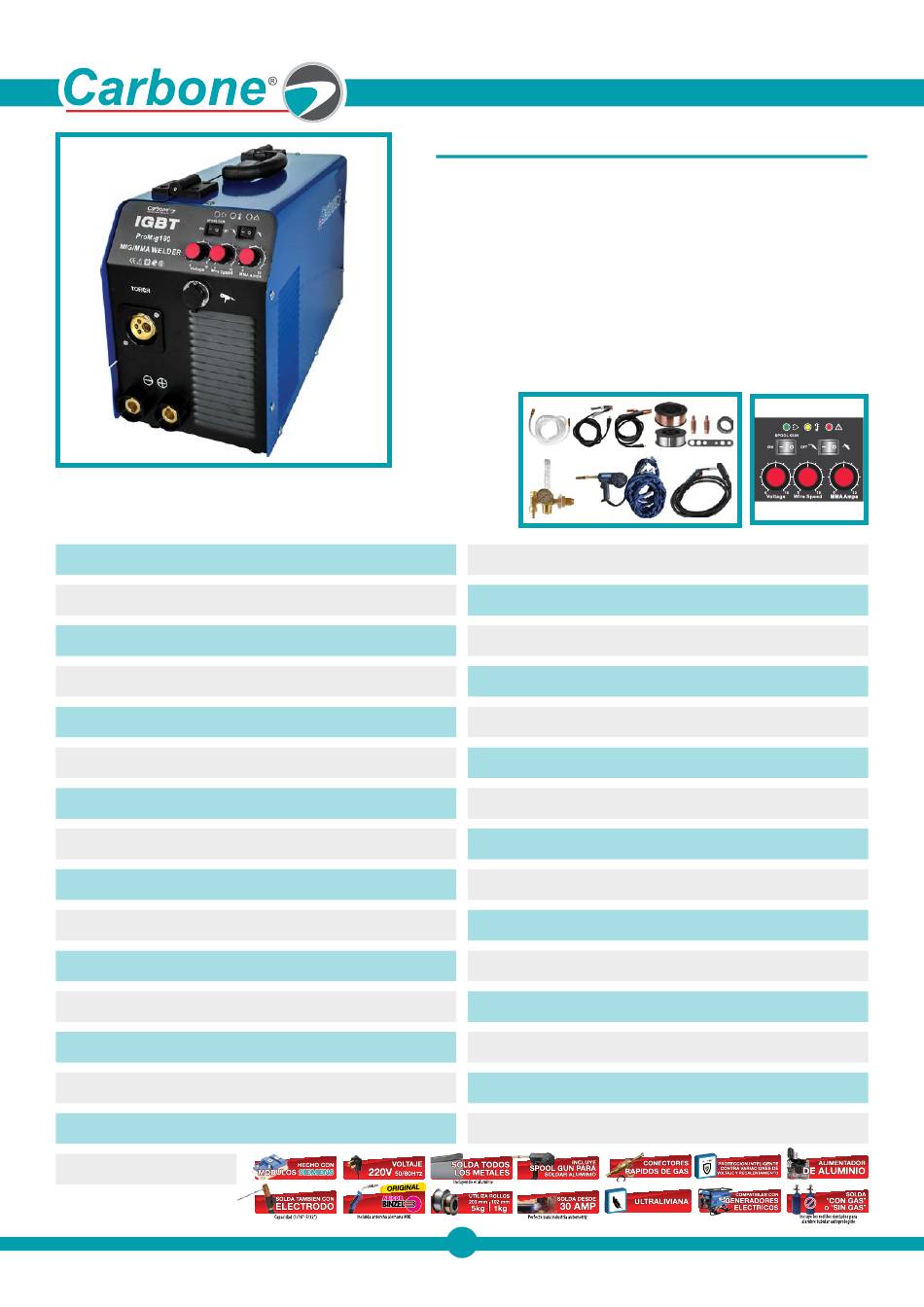

FICHA TÉCNICA

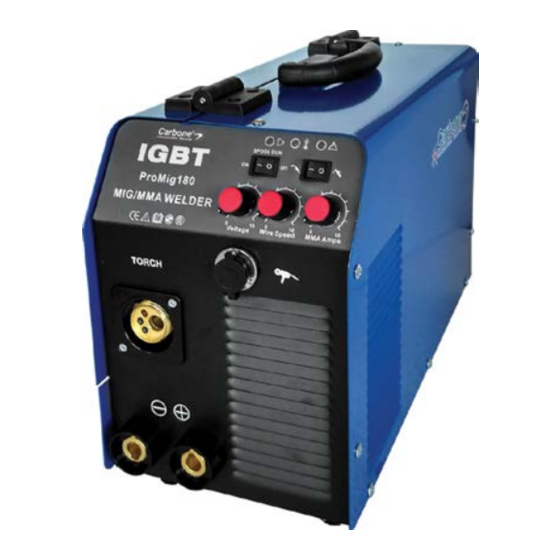

Maquina de soldar MIG/MAG PROMIG 180 220 Spool Gun
Carbone Professional Welding
DESCRIPCIÓN
Apto para soldar todo tipo de aceros al carbón, inoxidable y aluminio. Incluye una
Spool gun el cual le permitirá soldar fácilmente con rollos de (102mm) 4" difíciles
de soldar como el aluminio, evitando que se trabe en la máquina. Portátil y ligero
ideal para mantenimiento y fabricación en campo. Controles sencillos para ajuste
rápido, incluso un principiante puede ajustarla rápidamente. Antorcha de conexión
europea para rápida instalación y desinstalación en campo. Módulos inverter IGBT
de siemens que le darán fiabilidad durante años de uso con esta máquina. Puede
soldar en MIG hasta espesores de 3/8" en un solo pase, 5/8" en multipase y mínimo
calibre 24.
CÓDIGO
Accesorios Incluidos
B011
Rodillo especial dentado para alambre tubular (sin gas):
Incluido en los accesorios (0.6-0.8) mm
Velocidad máx. salida del alambre (ajustable) : 12 metros x min
Inductancia MIG: Fija predefinida
Pre y Post flujo del gas: Fija predefinida
Rango de ajuste en MMA (electrodo): 15~160A
Ciclo de trabajo en MMA: 35% @ 160 amp
Power factor: λ=0.8
Eficiencia: ≥0.85
Protección de la carcasa: Clase F
Peso: 12.5 kilos
Tipo de protección: IP21S
Dimensiones: 450x210x320 mm
Garantia: 1 año
Procedencia: Importado
1
Detalle panel
