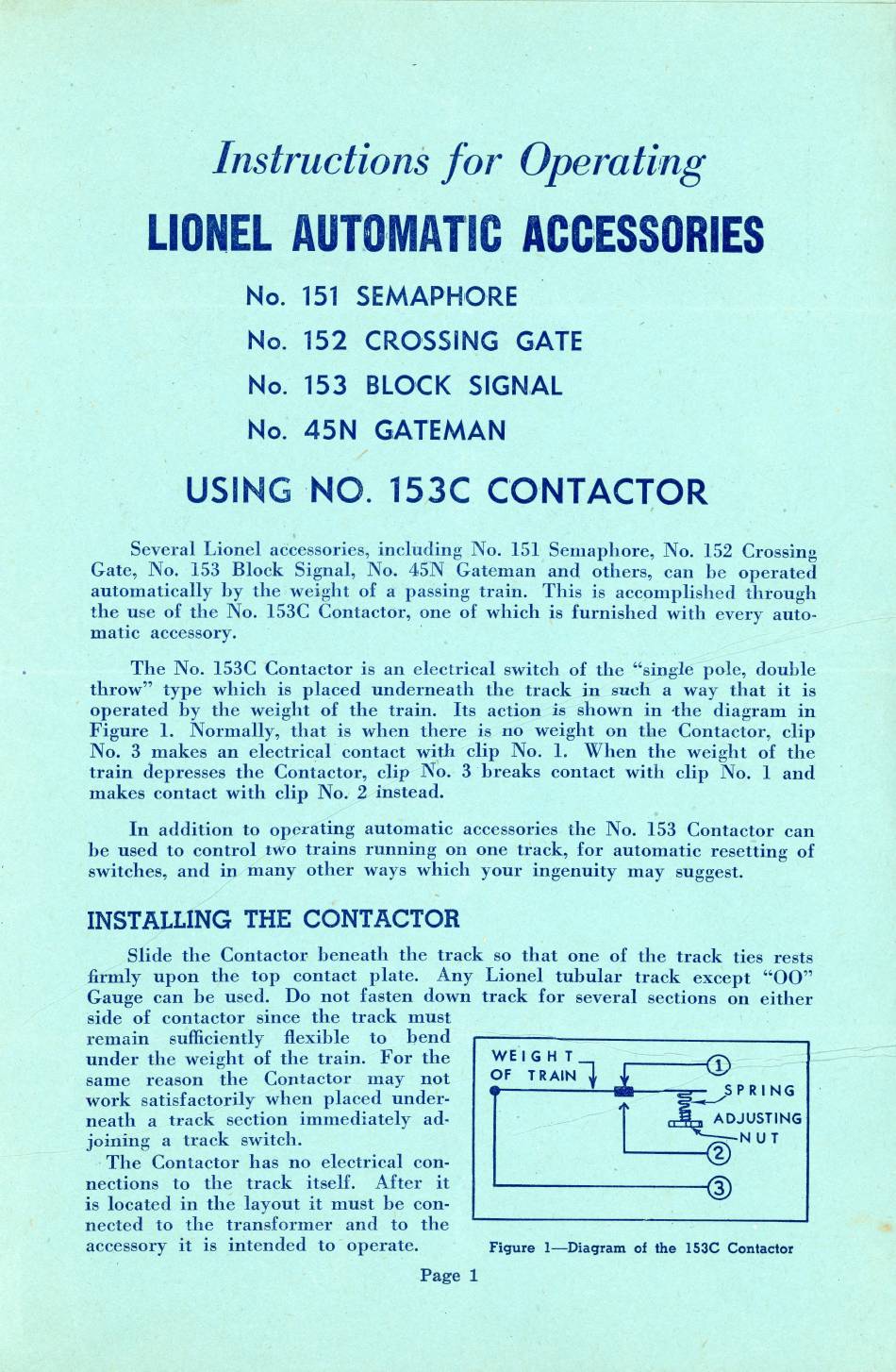

Instructions for Operating
LIONEL AUTOMATIC ACCESSORIES

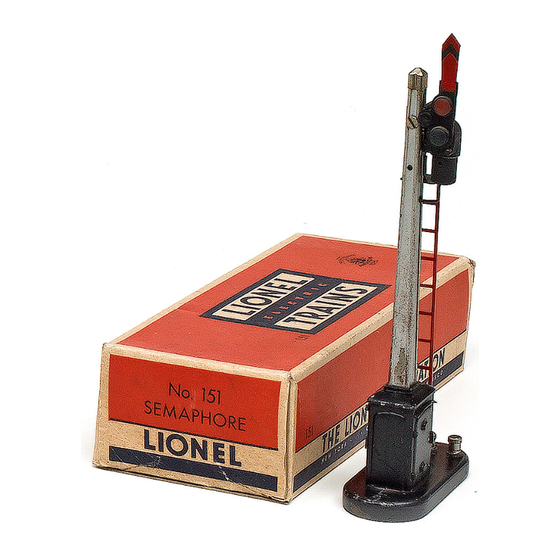

No. 151 SEMAPHORE
No. 152 CROSSING GATE
No. 153 BLOCK SIGNAL
No. 45N- GATEMAN
USING NO. 133¢C CONTACTOR |
Several Lionel accessories, creludans No. ESI Sencar,
No. 152 Crossina
Gate, No. 153 Block Signal, No. 45N_ Chiesa and others, can be operated
automatically by the weight of a passing train.
This is accomplished through
A
the use of the No. 153C Contactor, one of which is furnished with every auto-
matic
accessory.
The No. 153C Contactor is an electrical switch of the "single pole, double
throw" type which is placed underneath the track in such a way that it is
- operated by the weight of the train.
Its action is shown in the diagram in
Figure 1. Normally, that is when there is no weight on the Contactor, clip
No. 3 makes an electrical contact with clip No. 1. When
the weight af the
train depresses the Contactor, clip No. 3 breaks contact with clip No. 1 and
makes contact with clip No. 2 instead.
In addition to operating automatic accessories the No. 153 Contactor can
be used to control two trains running on one track, for automatic resetting of
switches, and in many
other ways which your ingenuity may suggest.
INSTALLING THE CONTACTOR
Slide the Contactor beneath the track so that one of the track ties rests
firmly upon
the top contact
plate.
Any Lionel
tubular
track except "OO"
Gauge can be used.
Do not fasten down track for several sections on either
side of contactor since the track must
remain
sufficiently
flexible
to
bend
——__
under the weight of the train.
For the
WEIGHT
same
reason
the
Contactor
may
not
|
OF
TRAIN y
a
work satisfactorily when placed under-
ae
2
INS
neath a track section immediately
ad-
:
|
|
#. ADJUSTING
—NUT
joining a track switch.
-The Contactor
has no electrical con-
nections
to the track
itself.
After
it
is located in the layout it must be con-
nected
to the transformer
and
to the
ae
3
:
accessory it is intended to operate.
— — _ — _ —
Figure 1—Diagram of the 153C Contactor
Page 1
