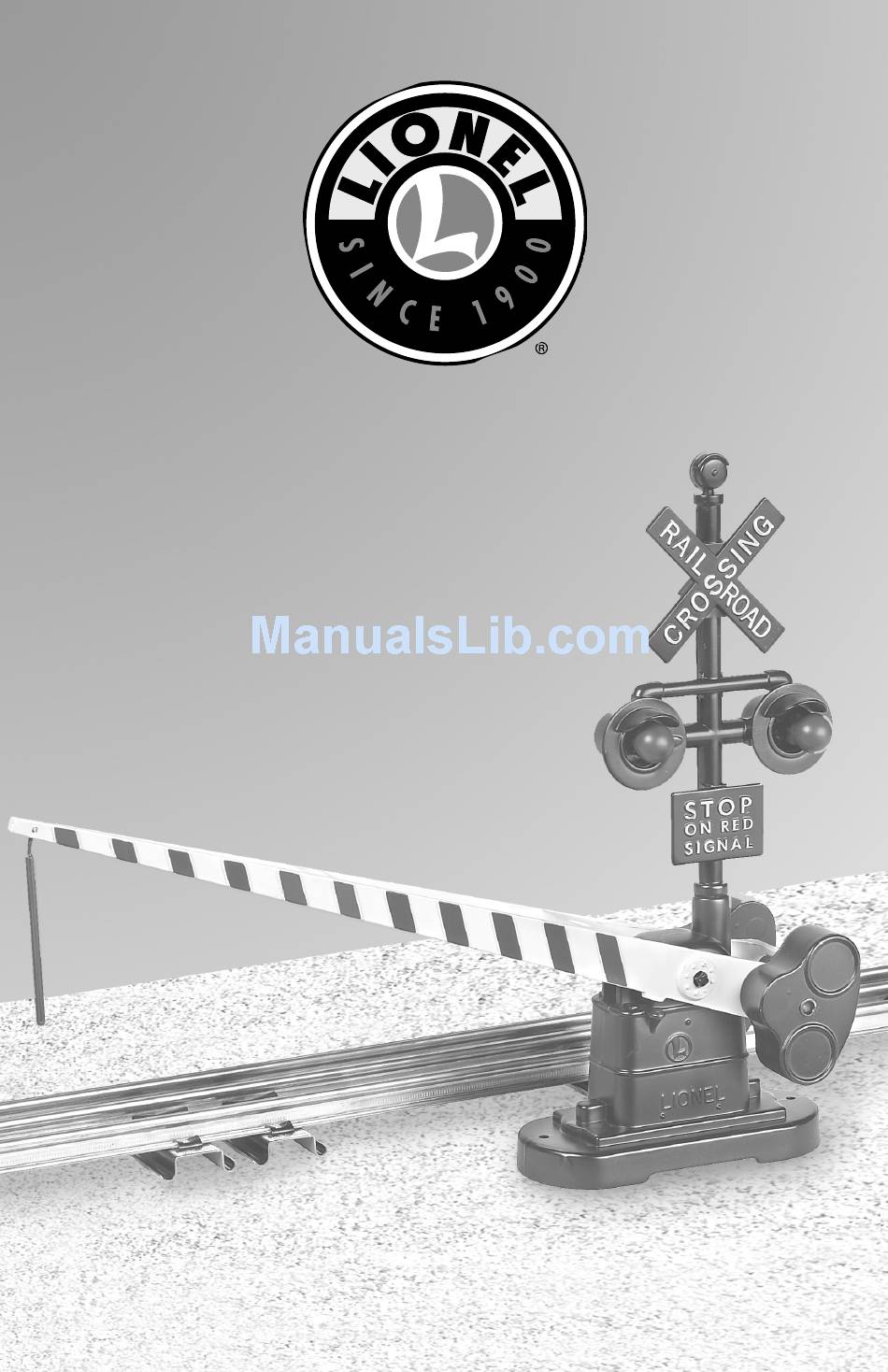

  • Page 1 70-2162-250 10/11 Lionel Auto Crossing Gate and Signal Owner’s Manual...
  • Page 2 Connecting your Auto Crossing Gate and Signal to a 153IR Controller Connecting your Auto Crossing Gate and Signal with the FasTrack track system Servicing the LEDs Limited Warranty/Lionel Service The following Lionel marks are used throughout this catalog and are protected under law. All rights reserved. Lionel , LEGACY...
  • Page 3 Installing the 153C Contactor (included) he 153C Contactor is activated by the weight of a passing train. Place the Contactor under any O or O-27 gauge track section, as shown in Figure 1. One of the track ties should rest firmly upon the top of the pressure plate. If your layout is fastened to a board, loosen several sections on either side of the Contactor so that the track is able to bend under the weight of the train.
  • Page 4 Wiring your Auto Crossing Gate and Signal to a power source our Auto Crossing Gate and Signal operates best at 10-14 volts (AC). Have an adult strip 1⁄4" of insulation from both ends of the four wires included with the Auto Crossing Gate and Signal, if they have not already been stripped.
  • Page 5 Adjusting the 153C Contactor fter all the connections are made and your layout is powered up, the Contactor must be adjusted so that the train will properly trigger the accessory. 1. Stop the train several sections away from the Contactor so that it does not press on the Contactor plate.
  • Page 6 Connecting your Auto Crossing Gate and Signal to a 153IR Controller he 153IR Controller (available separately, 6-14111) is an alternative to the 153C Contactor. While the 153C Contactor relies on the weight of the train to activate the accessory, the 153IR Controller is triggered by an Infrared motion sensor. The 153IR Controller also allows your to set the length of time that the accessory remains on.
  • Page 7 LED (light emitting diode). While the LED is expected to last for a long time, it should be replaced only by a Factory Trained Authorized Lionel Service Station or Lionel Service in the event that it becomes necessary. Please see the Instructions for Obtaining Service section on the Lionel Limited Warranty &...
  • Page 8: Product Description

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
