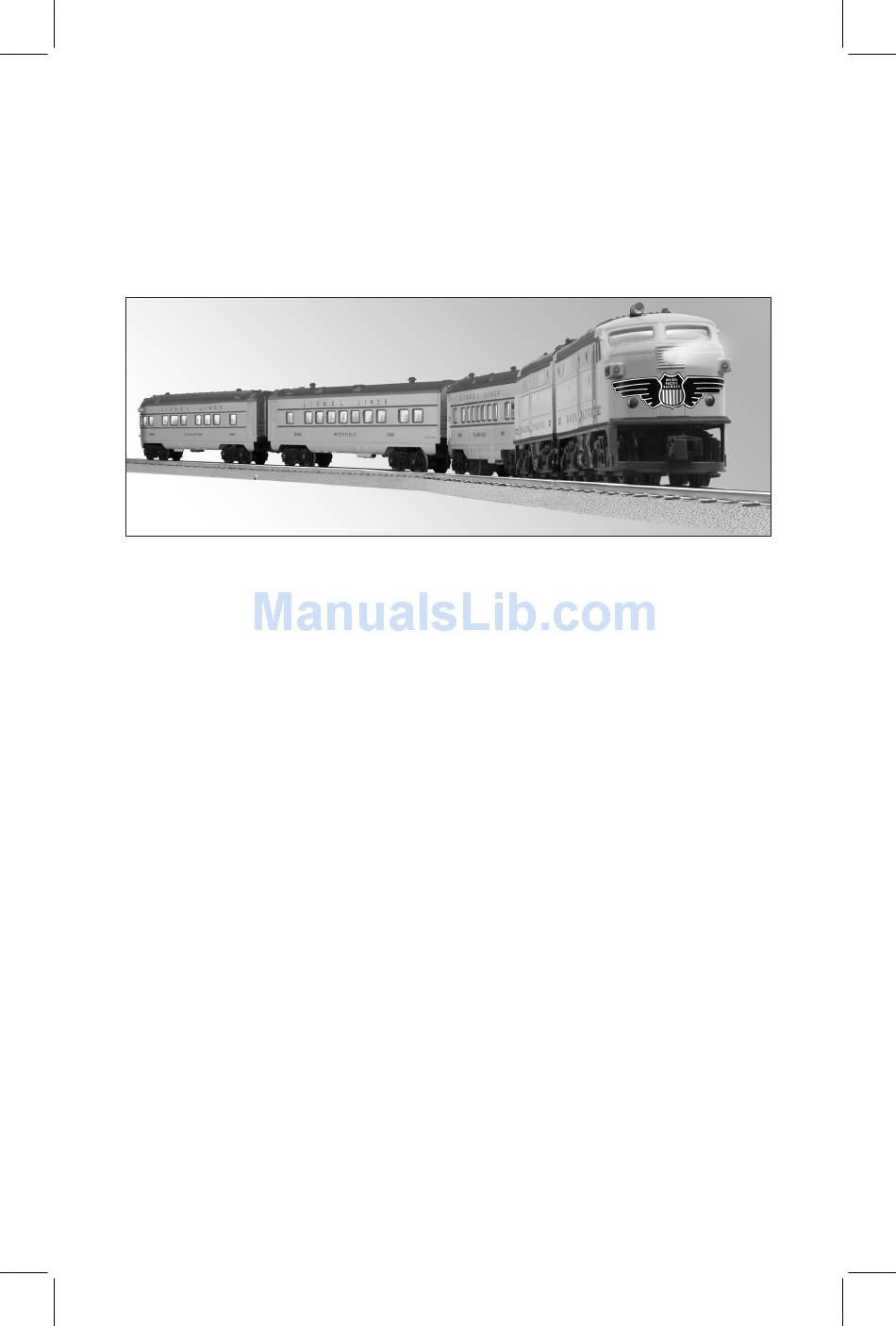

LIONEL NO. 1464W UNION PACIFIC
"ANNIVERSARY" PASSENGER ALCO SET
Lionel ALCo diesel locomotives are modeled on the 1,500 horsepower general purpose freight
and passenger locomotives built by the American Locomotive Company and used by many
American railroads.
These locomotives are designed to operate on Lionel O27 track, but will run as well on
O-gauge track or the FasTrack track system.
LIONEL "MAGNE-TRACTION"
This locomotive is equipped with "Magne-Traction" which means that its driving wheels are
magnetized by powerful Alnico magnets inserted in the driving axles in order to grip the track
and enable the locomotive to pull heavier loads and climb steeper grades without slipping
on the track. Be careful not to let pins, paperclips, carpet tacks or other small iron objects
come in contact with the locomotive or they will be attracted to the wheels, gears, or axles
and interfere with the action of the locomotive. NOTE: "Magne-Traction" is not effective on
aluminum, brass or other non-magnetic rails. The locomotive also includes two traction tires,
which will improve traction on both magnetic and non-magnetic rails.
73-8354-250
73-8354-250 UP Anniv Set.indd 1
Instructions for Operating
5/12
5/29/12 8:27 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1464W UNION PACIFIC and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel 1464W UNION PACIFIC

Summary of Contents for Lionel 1464W UNION PACIFIC

  • Page 1 American Locomotive Company and used by many American railroads. These locomotives are designed to operate on Lionel O27 track, but will run as well on O-gauge track or the FasTrack track system. LIONEL “MAGNE-TRACTION”...
  • Page 2 Passenger Car Features • Die-cast metal four-wheel trucks with operating couplers • Illuminated interior • Window Silhouettes The following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved. Lionel , LEGACY , FasTrack...

  • Page 3: Transformer Operations

    Transformer operations RUNNING YOUR LOCOMOTIVE SET WITH A LIONEL TRANSFORMER Do not power your locomotive with direct current (DC). Caution! Damage to sensitive electronic components may occur. PLACE YOUR LOCOMOTIVE SET ON LIONEL OR LIONEL- COMPATIBLE O GAUGE TRACK. THROTTLE UP YOUR LOCOMOTIVE WITH YOUR TRANSFORMER.

  • Page 4: Locking Your Locomotive Into Forward Direction Only Operation

    Transformer operations LOCKING YOUR LOCOMOTIVE INTO FORWARD DIRECTION ONLY OPERATION When the Electronic E-unit Direction Lock switch is in the RUN position, your locomotive sequences through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on. To lock your locomotive into forward direction only operation, you can deactivate the Electronic E-unit’s sequencing function.
  • Page 5 Simply release the magnetic coupler and couple the rolling stock to the locomotive. Keep in mind that you may still make use of Lionel Remote-Control Track sections (6-65530 for O gauge; 6-12746 and 6-65149 for O-27 gauge; and 6-12020 and 6-12054 for FasTrack layouts) with the magnetic couplers on the rolling stock.
  • Page 6 Use the HORN and BELL buttons on your transformer to activate the locomotives horn and bell sounds. If your transformer lacks HORN and BELL buttons, you will need to install Lionel no. 610-5906-001 Sound Activation Buttons (available separately) to activate the locomotive’s horn and bell sounds.

  • Page 7: Lubricating Your Locomotives

    Figure 3 on page 8 before running it for the first time. Put a small dab of Lionel Lubricant at all points marked “L”. Using the point of a pin or a thin wire, put a drop of Lionel Oil at points marked “O”.

  • Page 8: Lubricating Your Locomotive

    Operating and servicing your set LUBRICATING YOUR LOCOMOTIVE Lubricate “O” with Lionel oil sparingly Lubricate “O” with Lionel Lubricate “L” with Lionel grease sparingly oil sparingly Figure 3. Lubricating the powered unit 73-8354-250 UP Anniv Set.indd 8 5/29/12 8:27 AM...
  • Page 9 1. To remove the shell, use a flat blade screw driver to rotate the front and rear locking tabs counter-clockwise 90°and then lift the shell off the frame. 2. Apply a small amount of Lionel oil (two drops) in the armature shaft hole. Refer to Figure 4.
  • Page 10 2. To remove the lamp, gently push the lamp down and turn counter clockwise to disengage the lamp from the socket. Refer to Figure 5. 3. Replace the expired lamp with Lionel part no. 6000363300, available from your local Lionel Authorized Service Center or Lionel Service. (For more information, see Lionel Service on page 12.)

  • Page 11: Replacing The Traction Tires

    During the course of normal operations, the traction tires may become worn out. We recommend that you have the traction tires replaced by an authorized Lionel Service Center because the truck and side frames must be removed to access the wheels. See the Lionel Service section on page 12 for more information.

  • Page 12: Product Description

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
