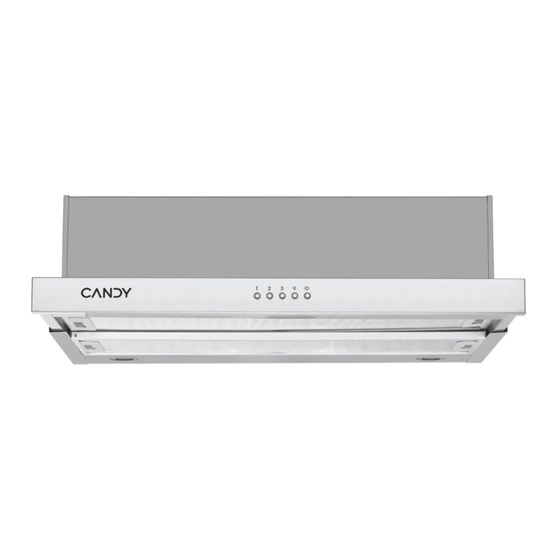

CBT6ESMX
Cooker Hood
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBT6ESMX and is the answer not in the manual?

Questions and answers

Summary of Contents for Candy CBT6ESMX

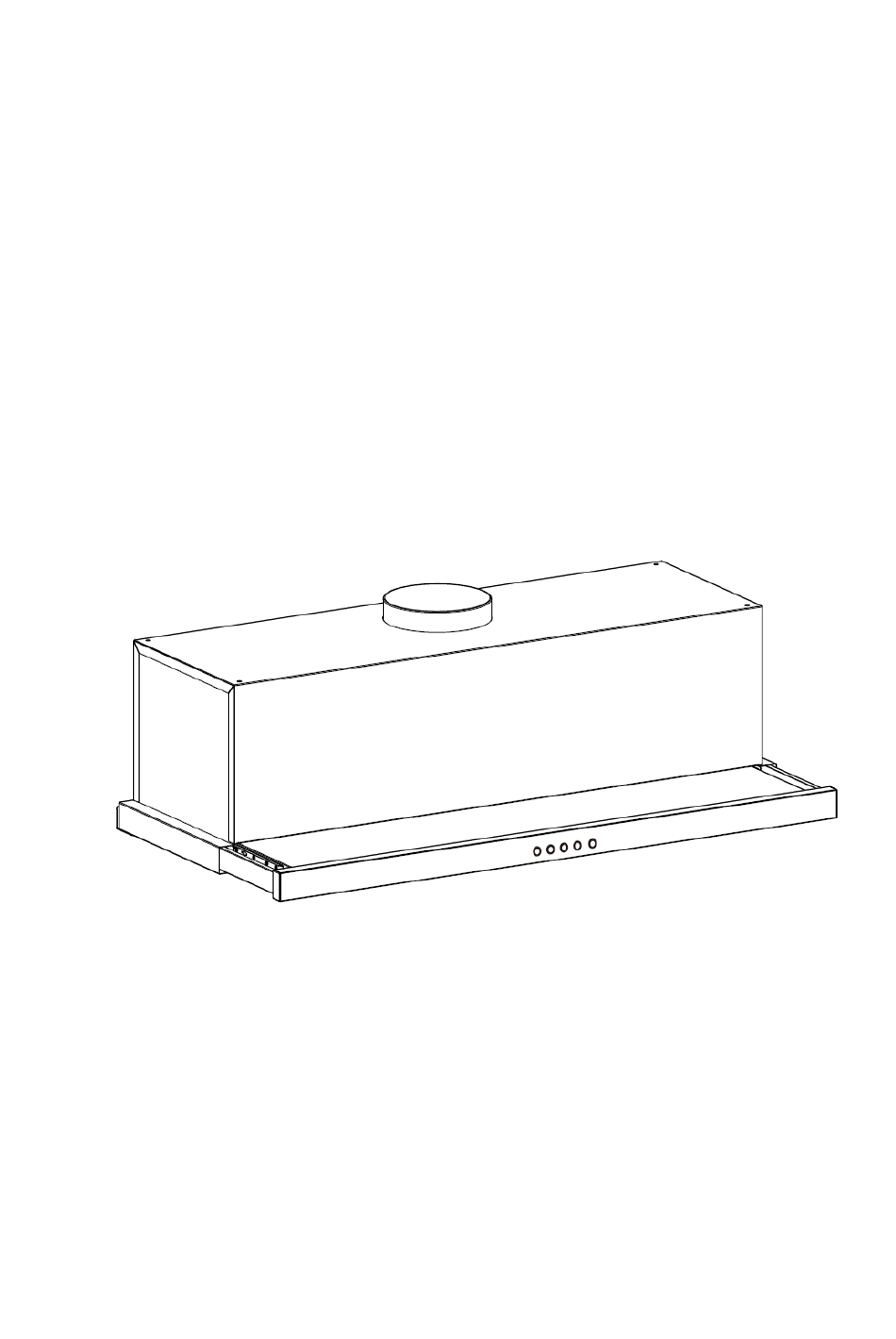

  • Page 1 CBT6ESMX Cooker Hood Instruction Manual...
  • Page 2: Table Of Contents

    Content 1…………………………………..………………………………Safety instructions 2…………………………………..………………………………Installation 3…………………………………..………………………………Start using your cooker hood 4…………………………………..………………………………Troubleshooting 5…………………………………..………………………………Maintenance and cleaning 6…………………………………..………………………………Environment protection...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. appliances burning gas or other fuels.
  • Page 4 ● arning: Before obtaining access to terminals, all supply circuits must be disconnected. Always to do: Always to do: ● lways put lids on pots and pans ● aution: The appliance and its when cooking on a gas cooker. accessible parts can become hot ●...
  • Page 5 ● ● ARNING: Danger of fire: do not EVER try to extinguish a fire with store items on the cooking surfaces. water, but switch off the appliance and then cover flame e.g. with a lid or a ● steam cleaner is not to be used. fire blanket.
  • Page 6 Way two:Mounting under a wall unit 1. Drill 4 holes of 4mm diameter at the bottom of the hanging cupboard. 2. Install the cooker hood on the bottom of the cupboard, tighten the hood with the M4 screws. 3. Use two 3*12 screws to fix the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.
  • Page 7: Start Using Your Cooker Hood

    Electrical Installation All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. Direct Connection The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.
  • Page 8: Troubleshooting

    if no operation. 2. Power on: Press power button once, its indicator light will lit on, the hood works at low speed. Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode, and run by circle.
  • Page 9: Maintenance And Cleaning

    work, motor does Power cord loose or Refit cord to power outlet. not work disconnected Switch power outlet on. One way valve and the outlet Take down the one way valve are not tightly sealed and seal with sealant. Oil leakage Leakage from the connection Take chimney down and seal.
  • Page 10 CONTROL PANEL SURFACE The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning. Important Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives,as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.
  • Page 11 NOTE: • Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. • When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT  The bulb must be replaced by the manufacturer, its Important : service agent or similarly qualified persons.
  • Page 12: Environment Protection

    ENVIRONMENTAL PROTECTION: This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused).
  • Page 13 Índice 1 ................ Instruções de segurança 2 ................ Instalação 3 ................ Começar a utilizar o exaustor 4 ................ Resolução de problemas 5 ................ Manutenção e limpeza 6 ................ Proteção do ambiente...
  • Page 14: Instruções De Segurança

    INSTRUÇÕES DE SEGURANÇA Este manual explica a instalação e a utilização correta do seu exaustor, leia o atentamente antes de usar o produto, mesmo que já esteja familiarizado com o mesmo. O manual deve ser mantido num local seguro para referência futura. O que nunca deve fazer: ...
  • Page 15 de alimentação elétrica têm utilizador não deve ser realizada por crianças sem supervisão. de estar desligados.  Aviso: Antes de obter acesso a terminais, todos os circuitos de alimentação elétrica têm de estar desligados. O que deve fazer sempre:  O que deve fazer sempre: Coloque sempre tampas nos tachos e panelas quando estiver...
  • Page 16: Instalação

    A limpeza e manutenção pelo AVISO: Perigo de incêndio:   utilizador não deve ser realizada não guarde artigos em cima por crianças sem supervisão. das superfícies de cozedura. Não deve nunca utilizar um   Quando o exaustor e aparelhos com fornecimento de energia aparelho de limpeza a vapor.
  • Page 17 Segunda forma: montagem sob um móvel de parede Faça 4 furos de 4 mm de diâmetro na parte inferior do armário suspenso. 60 cm Instale o exaustor na parte inferior do armário, aperte o exaustor com os parafusos M4. Utilize dois parafusos 3*12 para fixar a placa ajustada na parte inferior do exaustor, de modo a manter o espaço entre a parte de trás do exaustor e o armário.
  • Page 18: Começar A Utilizar O Exaustor

    Instalação elétrica Todo a instalação tem de ser realizada por uma pessoa competente ou por um eletricista qualificado. Antes de ligar a alimentação da rede, certifique-se de que a tensão da rede corresponde à tensão na placa de classificação. Ligação direta O aparelho deve ser ligado diretamente à...
  • Page 19: Resolução De Problemas

    Ligar a corrente: Prima o botão de alimentação uma vez, a luz indicadora acende-se e o exaustor funciona a baixa velocidade. A luz indicadora de estará acesa. Prima novamente o botão de alimentação baixa velocidade para a fechar, e a luz indicadora apagar-se-á. Todas as funções do exaustor são encerradas, o exaustor entra em modo de espera e funciona por círculo.
  • Page 20: Manutenção E Limpeza

    Fusíveis domésticos Volte a ligar/substitua A luz não os fusíveis. fundidos acende, o motor Cabo de alimentação solto Volte a ligar o cabo à tomada. não funciona Ligue a alimentação. ou desligado A válvula unidirecional Retire a válvula unidirecional e a saída não estão e vede com vedante.
  • Page 21 SUPERFÍCIE DO PAINEL DE CONTROLO O painel de controlo incorporado pode ser limpo usando água com sabão. Certifique-se de que o pano está limpo e bem espremido antes de realizar a limpeza. Utilize um pano macio seco para remover humidade em excesso existente após a limpeza.
  • Page 22 Aberto Fechado NOTA: Certifique-se de que o filtro está bem preso. Caso contrário, este pode  soltar-se e pode constituir um perigo. Com um filtro de carvão ativado instalado, o poder de aspiração será reduzido.  SUBSTITUIÇÃO DA LÂMPADA  A lâmpada tem de ser substituída pelo fabricante, pelo seu Importante: agente de serviço ou por pessoas igualmente qualificadas.
  • Page 23: Proteção Do Ambiente

    Fig. 2 PROTEÇÃO DO AMBIENTE: Este aparelho está rotulado em conformidade com a Diretiva Europeia 2012/19/UE relativa aos resíduos de equipamentos elétricos e eletrónicos (REEE) 2013 em relação aos aparelhos elétricos e eletrónicos. Os REEE contêm substâncias poluentes (que podem ter um efeito negativo no meio ambiente) e elementos base (que podem ser reutilizados).
