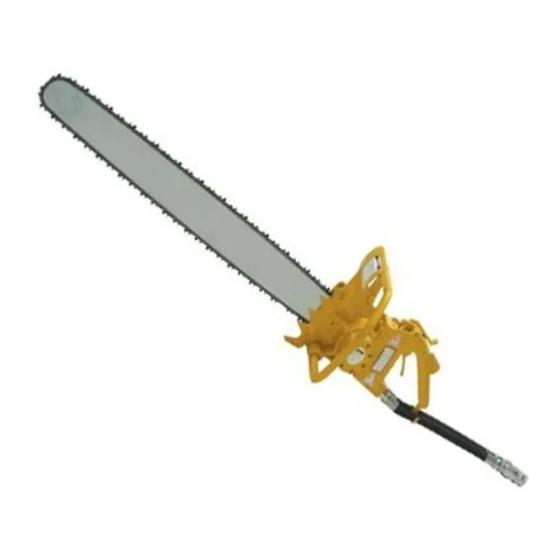

- Page 1 CS11 HYDRAULIC CHAIN SAW USER MANUAL Safety, Operation and Maintenance © 2014 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 66379 8/2018 Ver. 16...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. CS11 User Manual ◄ 3... -
Page 4: Safety Symbols
SAFETY SYMBOLS Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Tool operators and maintenance personnel must always • Never wear loose clothing that can become comply with the safety precautions given in this manual entangled in the working parts of the tool. and on the stickers and tags attached to the tool and •... - Page 6 • Follow manufacturer’s sharpening and maintenance instructions for the saw chain. • Only use bars and chains specified by STANLEY. Chains must meet the requirements of ANSI B175.1 for low kickback performance. • Always be well rested and mentally alert before operating the chain saw.
-
Page 7: Electrical Hazards
ELECTRICAL HAZARDS The following guidelines must be followed to prevent to any energized electrical conductor in excess of 750 volts (primary conductor) or when: accidental contact with overhead electrical conductors and/or communication wires and cables. (ref. ANSI 1. Branches or limbs being removed cannot first be Z133.1-2000) cut (with a pole pruner/pole saw) to sufficiently clear electrical conductors, so as to avoid contact. - Page 8 ELECTRICAL HAZARDS Table 2 – Minimum approach distances to energized weather conditions such as thunderstorms, high winds conductors for persons other than qualified line- and snow and ice storms. clearance arborists and qualified line- clearance Qualified line-clearance arborists and qualified line- arborist trainees.
-
Page 9: Tool Stickers And Tags
USE ONLY PARTS AND REPAIR USE ONLY PARTS AND REPAIR PROCEDURES APPROVED BY PROCEDURES APPROVED BY STANLEY AND DESCRIBED IN THE STANLEY AND DESCRIBED IN THE The safety tag (P/N 15875) at right is attached to OPERATION MANUAL. OPERATION MANUAL. -
Page 10: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 11: Hose Recommendations
HOSE RECOMMENDATIONS CS11 User Manual ◄ 11... -
Page 12: Htma / Ehtma Requirements
HTMA / EHTMA REQUIREMENTS HTMA / EHTMA REQUIREMENTS TOOL TYPE HTMA TYPE I TYPE II TYPE RR TYPE III HYDRAULIC SYSTEM REQUIREMENTS 4-6 GPM 7-9 GPM 9-10.5 GPM 11-13 GPM Flow range (15-23 LPM) (26-34 LPM) (34-40 LPM) (42-49 LPM) Nominal operating pressure 1500 psi 1500 psi... -
Page 13: Operation
STANLEY representative or your county agent. They to 140° F/60° C at the maximum ex pected ambient can often provide infor mation that will make your work temperature. - Page 14 OPERATION FELLING the first while pivoting the saw to complete the felling (CUTTING DOWN A TREE) (FIGURE 2) cut. Observe all safety precautions. The spiked bumper BUCKING (bucking cleat) must be installed for this operation. Bucking is the sawing of a log or fallen tree into smaller pieces.
- Page 15 OPERATION 1. Observe all safety precautions. LOGS/LIMBS WITH PRESSURE ON BOTTOM (FIG- URE 5) 2. Begin by cutting on the opposite side of the log. 1. Observe all safety precautions. 3. Pull the saw towards you and cut from the top. 2.
- Page 16 OPERATION precautions are taken. To extend chain life when cutting in cold weather: 5. Be sure the oiler is working. 6. Keep the chain tensioned and check often. 7. Keep the cutters properly sharpened. Touch up at least every hour. Never force a dull chain to cut. 8.
-
Page 17: Tool Protection & Care
This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by STANLEY. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar. CS11 User Manual ◄ 17... -
Page 18: Troubleshooting
TROUBLESHOOTING If symptoms of poor performance develop, the following chart can be used as a guide to correct the problem. When diagnosing faults in operation of the saw, always make sure the hydraulic power source is supplying the correct hydraulic flow and pressure to the saw as listed in the table. Use a flow meter know to be accurate. Check the flow with the hydraulic fluid temperature at least 80 °F/27 °C. -
Page 19: Specifications
SPECIFICATIONS Capacity.................. 24, 32, 36, 42 inches/61, 81, 91, 106 cm Cut Lengths Weight ..............................14 lbs/6.3 kg Length..............................17 inches/43 cm Width ..............................9 inches/23 cm Pressure ......................... 1500–2000 psi/105–140 bar Flow Range .......................... 10–14 GPM/38–53 LPM Optimum Flow ..........................14 GPM/53 LPM Porting ..............................8 SAE O-ring Connect Size and Type ....................1/2 inch Male Pipe Hose End Hose Whips ................................ -
Page 20: Cs11 Parts Illustration
CS11 PARTS ILLUSTRATION NOTE: If you have a CS11 built in 2011 or earlier, and you are replacing either the Spool (item 36) or the Plug (item 54), you must replace 3 items. The spool and plug have changed along with the addition of a Poppet (item 92). -
Page 21: Cs11 Parts List
CS11 PARTS LIST ITEM ITEM DESCRIPTION DESCRIPTION 00612 CAPSCREW 02916 SPRING 31849 REAR GEAR HOUSING 01604 O-RING * 06316 BUSHING PLUG (BEFORE ORDERING THIS PART SEE 31137 NOTE PAGE 21 ILLUSTRATION) 06853 DRIVE GEAR 02912 OIL TUBE 73309 IDLER SHAFT 00175 O-RING * 00713... - Page 24 STANLEY Infrastructure 6430 SE Lake Road Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
