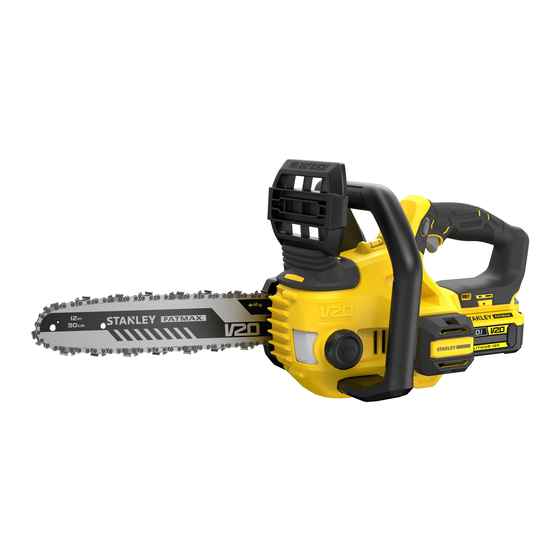

Stanley FATMAX SFMCCS630 Original Instructions Manual

Hide thumbs Also See for FATMAX SFMCCS630:
Table of Contents

Advertisement

Quick Links

Download this manual
www.stanleytools.com.au
SFMCCS630
www.stanleytools.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FATMAX SFMCCS630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stanley FATMAX SFMCCS630

Summary of Contents for Stanley FATMAX SFMCCS630

  • Page 1 www.stanleytools.com.au SFMCCS630 www.stanleytools.co.nz...
  • Page 2 English (original instructions) Copyright Stanley FatMax...
  • Page 3 Fig. A Fig. B Fig. C Fig. D...
  • Page 4 Fig. E Fig. F Fig. H Fig. G Fig. I Fig. J Fig. K Fig. L...
  • Page 5 Fig. M Fig. N Fig. O Fig. P 0.635 mm 60° Fig. Q...

  • Page 6: Technical Data

    English 30 CM 18V CHAINSAW SFMCCS630 Congratulations! EC‑Declaration of Conformity You have chosen a STANLEY FATMAX tool. Years of experience, Machinery Directive thorough product development and innovation make STANLEY FATMAX one of the most reliable partners for professional power tool users.

  • Page 7: Definitions: Safety Guidelines

    English d ) Do not abuse the cord. Never use the cord for WARNING: To reduce the risk of injury, read the carrying, pulling or unplugging the power tool. Keep instruction manual. cord away from heat, oil, sharp edges or moving Definitions: Safety Guidelines parts.

  • Page 8: General Chain Saw Safety Warnings

    English c ) Disconnect the plug from the power source and/ improperly or at temperatures outside the specified range or remove the battery pack, if detachable, from may damage the battery and increase the risk of fire. the power tool before making any adjustments, Service changing accessories, or storing power tools.

  • Page 9: Causes And Operator Prevention Of Kickback

    English k ) Cut wood only. Do not use chain saw for purposes of the bar, and push backward when cutting along the top not intended. For example: do not use chain saw for edge of the bar. cutting metal, plastic, masonry or non‑wood building 2 .

  • Page 10: Chain Saw Names And Terms

    • Chargers to help prevent tooth contact when saw is not in use. STANLEY FATMAX chargers require no adjustment and are Kickback ‑ The backward or upward motion, or both of the • designed to be as easy as possible to operate.
  • Page 11 If the supply cord is damaged, it must be replaced only by Pull by plug rather than cord when disconnecting charger. • STANLEY FATMAX or an authorised service organisation. This will reduce risk of damage to electric plug and cord. • Make sure that cord is located so that it will not be...

  • Page 12: Charger Operation

    This could also mean a problem with a charger. personal injury. If the charger indicates a problem, take the charger and battery • Charge the battery packs only in STANLEY FATMAX chargers. pack to be tested at an authorised service centre. • DO NOT splash or immerse in water or other liquids.

  • Page 13: Storage Recommendations

    38.3 of the UN Recommendations on the Transport of Charge only between 4 ˚C and 40 ˚C. Dangerous Goods Manual of Tests and Criteria. In most instances, shipping a STANLEY FATMAX battery pack Only for indoor use. will be excepted from being classified as a fully regulated Class 9 Hazardous Material.

  • Page 14: Markings On Tool

    English Date Code Position (Fig. A) 3 Li-Ion battery packs (C3, D3, G3, L3, M3, P3, S3, T3, X3, Y3 models) The date code  18  , which also includes the year of manufacture, 1 Instruction manual is printed into the housing. nOTE: Battery packs, chargers and kitboxes are not included Example: with B models.

  • Page 15: Installing The Guide Bar And Saw Chain

    Fuel Gauge Battery Packs (Fig. C) Adjusting Chain Tension (Fig. G, H) Some STANLEY FATMAX battery packs include a fuel gauge CAUTION: Sharp chain. Always wear protective gloves which consists of three green LED lights that indicate the level of when handling the chain. The chain is sharp and can cut charge remaining in the battery pack.

  • Page 16: Operation

    English ) as described in Installing the installing attachments or accessories. An accidental 2. Remove sprocket cover (   6  Guide Bar and Saw Chain section. start‑up can cause injury. 3. Lift the worn saw chain (   5  ) out of the groove in the guide Proper Hand Position (Fig. F) bar (  ...
  • Page 17 English 4. The tool is now ready to use. RETREAT nOTE: In the event of kickback, your left hand will come in contact with the front guard, pushing it forward, toward the 45° workpiece. This will stop the tool. DIRECTION Testing the Chain Brake (Fig. A, K) Test the chain brake before every use to make sure it FALL operates correctly.

  • Page 18: Maintenance

    To get the best possible performance from your chain saw it is important to keep the teeth of the saw chain sharp. Chain sharpening services are available from your nearest STANLEY FATMAX service centre. nOTE: Each time the saw chain is sharpened, it loses some •...

  • Page 19: Protecting The Environment

    WARNING: Since accessories, other than those offered • Check current at receptacle by by STANLEY FATMAX, have not been tested with this plugging an appliance. product, use of such accessories with this tool could be • Check to see if receptacle is hazardous.
  • Page 20 Australia & New Zealand Stanley Black & Decker www.stanleytools.com.au www.stanleytools.co.nz Tel.1800 338 002 (Aust) or Tel. 0800 339 258 (NZ) 810 Whitehorse Road Box Hill VIC 3128, Australia NA226308 09/2022...
