DIG GRWKIT-12 Installation Instructions

3. Connect the Micro Tubing: Attach the
micro tubing to the converter barbs by
firmly pushing the barb into the end of the
micro tubing. Next, run each length of micro
tubing to your desired location. Insert the
brown side of the dripper into the micro
tubing. If insertion is difficult, soften the end
of the micro tubing by dipping it in warm
water to make it more pliable.
5. Cap Unused Outlets: Use the provided
rubber caps to close all unused outlets. To
do this, unscrew the cover and remove the
Mini-Disk filter. Press the rubber caps firmly
into the unused outlets, then reinstall the
Mini-Disk filter and cover. Finally, tighten the
cover by hand.
4. Secure the Micro Tubing: Attach a V-stake
near the end of each micro tubing line to
secure it close to your plants. Ensure the
drippers are spaced appropriately to provide
even watering coverage.
6. Pressurize the System: Activate the sys-
tem and check that the 12-outlet manifold
is functioning correctly. Make any neces-
sary adjustments if needed.
Design Recommendations: For optimal
performance, we recommend that the
maximum length of micro tubing from
each outlet should not exceed 8–10 feet.
While longer lengths are possible, consider
maintenance and aesthetics when plan-
ning your system.
3. Additional Products for Use with the 12-Outlet Manifold
Micro Tubing:
• Model # B38P: 1/4 in. x 50 ft. Micro Tubing
• Model # B38100P: 1/4 in. x 100 ft. Micro Tubing
• Model # B38500P: 1/4 in. x 500 ft. Micro Tubing
1/4 in. Converter Barbs or Elbows:
• 1/4 in. Converter Barb: Designed for use with 1/4 in. micro tubing, featuring a com-
pression side for insertion into the drip manifold and a barb side for the micro tubing.
Elbows may be more effective than straight barbs depending on your system setup.
Models for 1/4 in. Converter Barbs and Elbows:
• Model # 10-012: Red Converter Barb
• Model # 10-013: Green Converter Barb
• Model # 10-014: Purple Converter Barb
• Model # 10-017: Black Converter Barb
• Model # 25-007: Black Converter Elbow
Please use the model numbers above to order specific components needed for
your system setup.
5. To Order Parts
We at DIG Corporation understand that most stores do not carry spare parts. For your
convenience, you can order any necessary parts by visiting: https://shop.digcorp.com
Parts will be shipped within seven days.

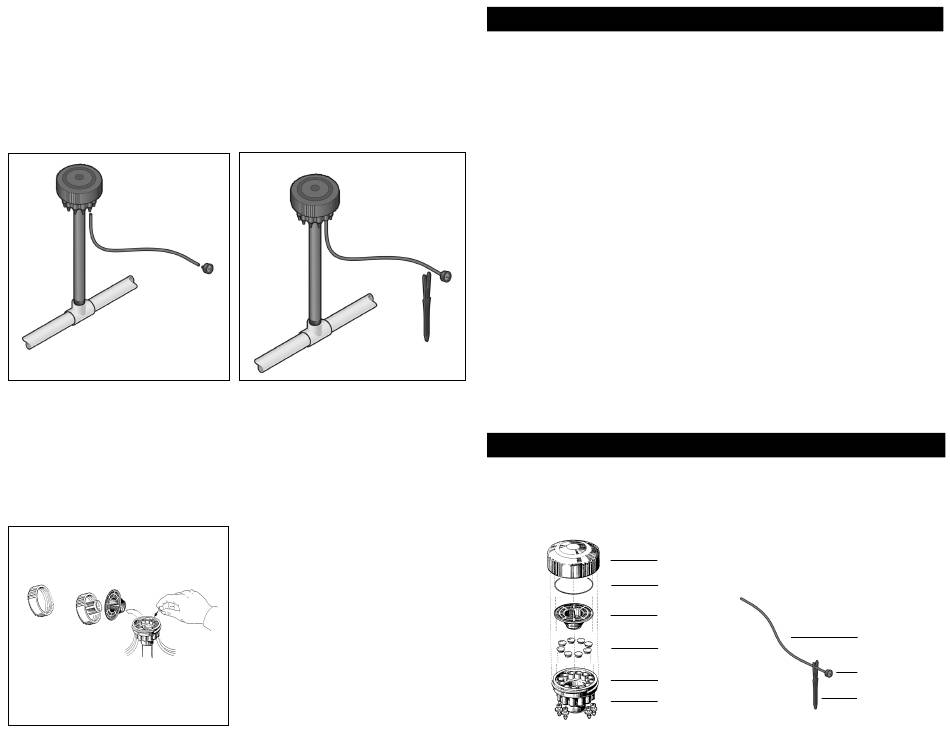

Cover
"O" Ring
Mini-Disk Filter
Caps
Body
Converter Barbs for
1/4 in. Micro Tubing
1/4 in. Micro Tubing
1-GPH PC Drippers
V-Stake
