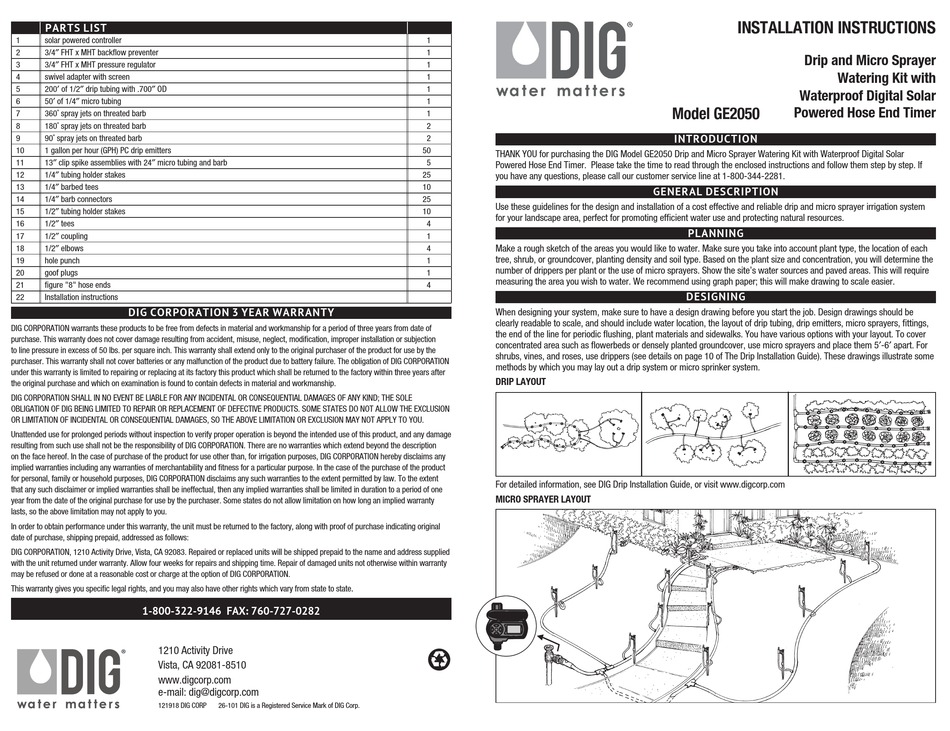

DIG GE2050 Installation Instructions

PARTS LIST
1 solar powered controller
2 3/4" FHT x MHT backflow preventer
3 3/4" FHT x MHT pressure regulator
4 swivel adapter with screen
5 200' of 1/2" drip tubing with .700" OD
6 50' of 1/4" micro tubing
7 360˚ spray jets on threated barb
8 180˚ spray jets on threated barb
9 90˚ spray jets on threated barb
10 1 gallon per hour (GPH) PC drip emitters
11 13" clip spike assemblies with 24" micro tubing and barb
12 1/4" tubing holder stakes
13 1/4" barbed tees
14 1/4" barb connectors
15 1/2" tubing holder stakes
16 1/2" tees
17 1/2" coupling
18 1/2" elbows
19 hole punch
20 goof plugs
21 figure "8" hose ends
22 Installation instructions
DIG CORPORATION 3 YEAR WARRANTY
DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three years from date of
purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modification, improper installation or subjection
to line pressure in excess of 50 lbs. per square inch. This warranty shall extend only to the original purchaser of the product for use by the
purchaser. This warranty shall not cover batteries or any malfunction of the product due to battery failure. The obligation of DIG CORPORATION
under this warranty is limited to repairing or replacing at its factory this product which shall be returned to the factory within three years after
the original purchase and which on examination is found to contain defects in material and workmanship.
DIG CORPORATION SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND; THE SOLE
OBLIGATION OF DIG BEING LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Unattended use for prolonged periods without inspection to verify proper operation is beyond the intended use of this product, and any damage
resulting from such use shall not be the responsibility of DIG CORPORATION. There are no warranties which extend beyond the description
on the face hereof. In the case of purchase of the product for use other than, for irrigation purposes, DIG CORPORATION hereby disclaims any
implied warranties including any warranties of merchantability and fitness for a particular purpose. In the case of the purchase of the product
for personal, family or household purposes, DIG CORPORATION disclaims any such warranties to the extent permitted by law. To the extent
that any such disclaimer or implied warranties shall be ineffectual, then any implied warranties shall be limited in duration to a period of one
year from the date of the original purchase for use by the purchaser. Some states do not allow limitation on how long an implied warranty
lasts, so the above limitation may not apply to you.
In order to obtain performance under this warranty, the unit must be returned to the factory, along with proof of purchase indicating original
date of purchase, shipping prepaid, addressed as follows:
DIG CORPORATION, 1210 Activity Drive, Vista, CA 92083. Repaired or replaced units will be shipped prepaid to the name and address supplied
with the unit returned under warranty. Allow four weeks for repairs and shipping time. Repair of damaged units not otherwise within warranty
may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state
1-800-322-9146 FAX: 760-727-0282
1210 Activity Drive
Vista, CA 92081-8510
www.digcorp.com
e-mail: dig@digcorp.com
121918 DIG CORP
.
26-101 DIG is a Registered Service Mark of DIG Corp.
1
1
1
1
1
1
1
2
2
50

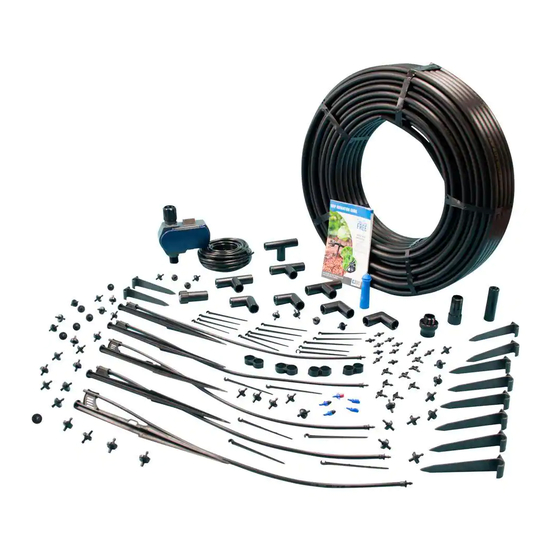

THANK YOU for purchasing the DIG Model GE2050 Drip and Micro Sprayer Watering Kit with Waterproof Digital Solar
5
Powered Hose End Timer. Please take the time to read through the enclosed instructions and follow them step by step. If
25
you have any questions, please call our customer service line at 1-800-344-2281.
10
25
Use these guidelines for the design and installation of a cost effective and reliable drip and micro sprayer irrigation system
10
for your landscape area, perfect for promoting efficient water use and protecting natural resources.
4
1
Make a rough sketch of the areas you would like to water. Make sure you take into account plant type, the location of each
4
tree, shrub, or groundcover, planting density and soil type. Based on the plant size and concentration, you will determine the
1
number of drippers per plant or the use of micro sprayers. Show the site's water sources and paved areas. This will require
1
measuring the area you wish to water. We recommend using graph paper; this will make drawing to scale easier.
4
When designing your system, make sure to have a design drawing before you start the job. Design drawings should be
clearly readable to scale, and should include water location, the layout of drip tubing, drip emitters, micro sprayers, fittings,
the end of the line for periodic flushing, plant materials and sidewalks. You have various options with your layout. To cover
concentrated area such as flowerbeds or densely planted groundcover, use micro sprayers and place them 5'-6' apart. For
shrubs, vines, and roses, use drippers (see details on page 10 of The Drip Installation Guide). These drawings illustrate some
methods by which you may lay out a drip system or micro sprinker system.
DRIP LAYOUT
For detailed information, see DIG Drip Installation Guide, or visit www.digcorp.com
MICRO SPRAYER LAYOUT
E
INSTALLATION INSTRUCTIONS
Drip and Micro Sprayer
Waterproof Digital Solar
Powered Hose End Timer
Model GE2050
INTRODUCTION
GENERAL DESCRIPTION
PLANNING
DESIGNING
Watering Kit with
