Installation Manual

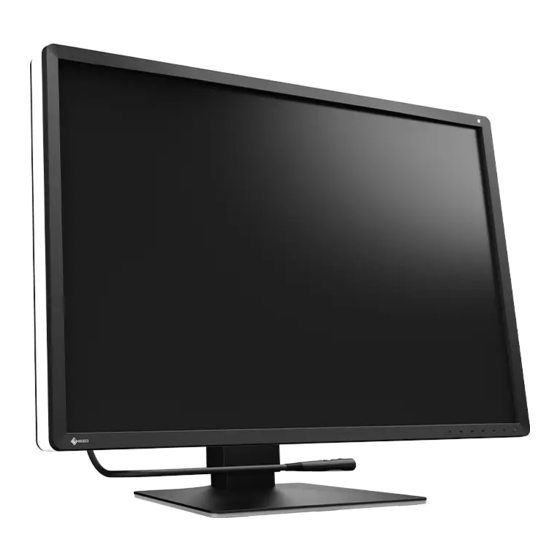

Color LCD Monitor
Important
To ensure that the product is used correctly, carefully read through
this Installation Manual and the Instructions for Use before use.
• See the Instructions for Use for monitor installation and connection.
• You can check the latest product information, including the Installation
Manual, from our web site.
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo RadiForce RX670
Summary of Contents for Eizo RadiForce RX670
- Page 1 Installation Manual Color LCD Monitor Important To ensure that the product is used correctly, carefully read through this Installation Manual and the Instructions for Use before use. • See the Instructions for Use for monitor installation and connection. • You can check the latest product information, including the Installation Manual, from our web site.
- Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
-
Page 3: Table Of Contents
CONTENTS CONTENTS 1 Basic Adjustment / Settings..................Switch Operation Method..................Switching Input Signals ..................Switching Display Mode (CAL Switch Mode) ............1.3.1 CAL Switch Modes.................. 2 Advanced Adjustments/Settings ................Basic Operation of the Setting Menu ..............Setting Menu Functions ..................2.2.1 CAL Switch Mode ................... -
Page 4: Basic Adjustment / Settings
1 | Basic Adjustment / Settings 1 Basic Adjustment / Settings This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor. For advanced adjustment and setting procedures using the Setting menu, see 2 Advanced Adjustments/Settings [} 7]. -
Page 5: Switching Input Signals
Basic Adjustment / Settings | 1 1.2 Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. Selectable signals vary depending on PbyP Settings - PbyP [} 15] PbyP Settings - One Cable PbyP [} 15]. PbyP DisplayPort 1 | DisplayPort 2 One Cable PbyP... -
Page 6: Switching Display Mode (Cal Switch Mode)
1 | Basic Adjustment / Settings 1.3 Switching Display Mode (CAL Switch Mode) The display mode can be selected according to the monitor application. 1.3.1 CAL Switch Modes ✓: Can be calibrated Mode Purpose 1-DICOM Enables display using DICOM® Part 14-compliant grayscale ✓... -
Page 7: Advanced Adjustments/Settings
Advanced Adjustments/Settings | 2 2 Advanced Adjustments/Settings This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For basic functions, see 1 Basic Adjustment / Settings [} 4]. 2.1 Basic Operation of the Setting Menu 1. Touch any switch (except The operation guide appears. -
Page 8: Setting Menu Functions
2 | Advanced Adjustments/Settings 2.2 Setting Menu Functions 2.2.1 CAL Switch Mode The mode settings can be adjusted according to your preference. The adjusted settings are saved for each mode. • DICOM / CAL / Patho • Custom / sRGB / Text Functions that can be adjusted differ depending on the mode. - Page 9 Advanced Adjustments/Settings | 2 Attention • It takes about 15 minutes for the monitor display to stabilize. Please wait 15 minutes or more after the monitor power has been turned on or the monitor has recovered from power saving mode before making adjustments to it. •...
- Page 10 2 | Advanced Adjustments/Settings Temperature Settings: "Native" / "6000 K" to "15000 K"(in increments of 100 K) / "sRGB" This function allows you to adjust the color temperature. The color temperature is normally used to express the hue of "White" and/or "Black" with a numerical value.
-
Page 11: Radics Selfqc
Advanced Adjustments/Settings | 2 Note • The gain value changes according to the color temperature. • When the gain is changed, the color temperature setting changes to "User". Reset Resets any color adjustments for the currently selected mode back to the default settings. 2.2.2 RadiCS SelfQC This product is equipped with an Integrated Front Sensor (calibration sensor). - Page 12 2 | Advanced Adjustments/Settings SelfCalibration Execute SelfCalibration and view the latest results. SelfCalibration - Execute Executes SelfCalibration. Attention • If the power to the PC is turned off or the input signal switches while SelfCalibration is running, the execution will be canceled. •...
- Page 13 Advanced Adjustments/Settings | 2 Grayscale Check Perform Grayscale Check and view the latest results. Furthermore, if you have configured the schedule using RadiCS, the next execution schedule is displayed. Grayscale Check - Execute Executes Grayscale Check. Attention • Perform Grayscale Check based on the actual color temperature and brightness of the working environment.
- Page 14 2 | Advanced Adjustments/Settings LEA - Meas. Frequency Settings: "Power Save" / "Routine" / "Off" You can acquire data required to estimate the monitor's lifespan. The life estimation result based on the acquired data can be confirmed using RadiCS / RadiCS LE. Note •...
-
Page 15: Preferences
Advanced Adjustments/Settings | 2 2.2.3 Preferences The monitor settings can be configured to suit the usage environment or your preference. PbyP Settings Display image Left Right PbyP Settings - PbyP Settings: "Off" / "DisplayPort 1 | DisplayPort 2" Two different signals can be displayed side-by-side in PbyP display. If this function is set to "DisplayPort 1 | DisplayPort 2", the PbyP display, which displays the input signal "DisplayPort 1"... - Page 16 2 | Advanced Adjustments/Settings PinP Settings Display image Window Main Window PinP Settings - PinP Display Settings: "Off" / "DisplayPort 2" / "USB-C" / "HDMI" Selects the input signal for the PinP sub window to be displayed on the screen. If this function is set to "Off", the PinP sub window will not be displayed.
- Page 17 Advanced Adjustments/Settings | 2 • High Turns the backlight off. This provides the highest power saving effect. • Low Sets the backlight to the lowest lighting level. The time until operation stabilizes after restoring from power saving mode can be reduced. • Off Does not enable the power saving mode.
- Page 18 2 | Advanced Adjustments/Settings • "USB 1 - USB-C" Set to manually switch whether the PC connected to USB-B 1 ( ) or the PC connected to USB-C (upstream: ) uses the USB peripheral device. If this is set , displayed in the operation guide. Touch the displayed operation switch ( ) and select "USB 1"...
-
Page 19: Languages
Advanced Adjustments/Settings | 2 Monitor Reset Restores all settings to their default settings except for the following settings: • "PbyP Settings" settings • "PinP Settings" settings • Settings on the "Administrator Settings" menu Attention • The previous settings cannot be recovered after they were reset to defaults. Note •... -
Page 20: Information
2 | Advanced Adjustments/Settings 2.2.5 Information You can check the monitor information (model name, serial number (S/N), firmware version, usage time) and the input signal information. The asset tag number is only displayed when it has been set using RadiCS / RadiCS LE. Example: ・Single window display ・PbyP / PinP display... -
Page 21: Administrator Settings
Administrator Settings | 3 3 Administrator Settings This chapter describes how to configure monitor operation using the "Administrator Settings" menu. 3.1 Basic Operation of the "Administrator Settings" Menu 1. Touch to turn off the monitor. 2. While touching the leftmost switch ( ), touch for more than two seconds to turn on the monitor. - Page 22 If a warning message appears, change the input signal to full range. Sharpness Recovery Settings: "On" / "Off" EIZO's unique technology called "Sharpness Recovery" improves picture clarity and displays images that are true to the original source data. Attention •...
- Page 23 Administrator Settings | 3 • "Off" Disables the LAN port. Note • If this is set to "On", it will automatically change to "USB 1" if USB Selection [} 17] is set to "USB 1 - USB 2". Daisy Chain Daisy Chain - Output Settings: "On"...
-
Page 24: Troubleshooting
• Turn off the main power switch on the back of the monitor, and then turn it on again. Power switch indicator blinks: Orange, Green • Connect using a signal cable specified by EIZO. Then turn off the main power switch on the back of the monitor, and then turn it on again a few minutes later. -
Page 25: Imaging Problems
Manual of the graphics board for details. The message "DP Unsupported" appears on the screen • Check whether the connected cable is a signal cable recommended by EIZO. • Check whether the USB-C of the connected device supports video signal output (DisplayPort Alt Mode). -
Page 26: Other Problems
Instructions for Use). • If the peripheral devices work correctly when they are directly connected to the PC, contact your local EIZO representative. • Check the PC's BIOS (UEFI) setting for USB when using Windows. (See the manual of the PC for details.) -
Page 27: Error Code Table
4.4 Error Code Table [} 27]. • If an error code that does not appear in the error code table is displayed, contact your dealer or local EIZO representative. Attention • Do not touch the Integrated Front Sensor. The SelfCalibration / Grayscale Check history does not display the clock time correctly. -
Page 28: Reference
5 | Reference 5 Reference 5.1 Arm Installation Procedure A third-party monitor arm (or stand) can be attached by removing the stand of this product. When attaching an arm or stand, the installable orientations and movement range (tilt angle) are as follows. •... -
Page 29: Using The Docking Station Function
Reference | 5 3. Use the screws that you removed in step 2 to attach the arm (or stand) to the monitor. 5.2 Using the Docking Station Function This product is equipped with a LAN port and USB hub so that it can be used as a docking station. - Page 30 5 | Reference 4. If necessary, connect a mouse, keyboard, or other device to the USB downstream port. USB-C downstream USB-A downstream USB-C LAN port USB cable LAN cable (USB-C - USB-C) (Commercially CC150SS81G-5A available) (Included) USB-C LAN port...
-
Page 31: Main Default Settings
Reference | 5 Attention • In a multi-monitor environment connected via a USB Type-C (USB-C) daisy chain, please use the LAN port of the monitor directly connected to the PC to establish a wired network connection. Do not use the LAN port of monitors that are not directly connected to the PC, as it may potentially affect network communication. -
Page 32: Others
5 | Reference 5.3.2 Others LEA - Meas. Frequency Power Save Settings - Warning Settings - QC History PbyP Settings - PbyP PbyP Settings - One Cable PbyP PinP Settings - PinP Display PinP Settings - CAL Switch Mode DICOM PinP Settings - Position Upper Right Power Save High... -
Page 33: Attaching And Removing Radilight Focus (Task Light)
Reference | 5 5.4 Attaching and Removing RadiLight Focus (Task Light) RadiLight Focus (Task Light) can be attached or removed. When attaching it, connect it to the monitor without turning it. It can only be attached in a downward direction. To remove it, pull it out while turning the connecting part with the monitor in the direction indicated by 1 in the illustration. -
Page 34: Appendix
(hereinafter referred to as the “Product”) from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty... - Page 35 Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of seven (7) years after the production of the Product is discontinued.
- Page 36 The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period. EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.
- Page 37 00N0N441AZ IM-RX670 Copyright © 2024 EIZO Corporation. All rights reserved. 1st Edition – February, 2024...
