- Page 1 Ultrasound and Electrical Neuromuscular Stimulator CT1032 Medically Certified Ultrasound User Manual and Treatment Guidelines Please read this User Manual before using your Ultrasound...
-
Page 2: Table Of Contents
Technology Co., Ltd. reserves the right to improve and amend it at any time without prior notice. Amendments will however be published in a new edition of this manual. All Rights Reserved. CT1032 Rev. Vl .5 © 202302 Telephone: 0161 429 7330... -
Page 3: Foreword
CT1032 is a therapy apparatus that offers both ultrasound therapy and electrotherapy in combination. Pain affects the quality and enjoyment of life, especially for those who suffer chronic pain. CT1032 is an ultrasound and electrotherapy therapy device for the treatment of chronic and acute muscular pain. The applicator has a radiant surface of 4.0cm' and frequency of 1MHz. -
Page 4: Safety Precautions
2. SAFETY PRECAUTIONS 2.1 PRECAUTIONARY DEFINITIONS The precautionary instructions found in this section and throughout this manual are indicated by specific symbols. Understand these symbols and their definitions before operating this equipment. The definitions of these symbols are as follows: CAUTION Text with a "CAUTION"... - Page 5 20. The CT1032 should not be used while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user at undue risk for injury.
- Page 6 2.3 WARNINGS WARNINGS 1. Care must be taken when operating this equipment around other equipment. 2. Potential electromagnetic or other interference may occur to either this device or to the other equipment, or both. Minimize this interference by not using this device in conjunction with the other equipment.
- Page 7 Coupling is described as contact between the applicator and the treatment site and may be accomplished through the use of a coupling agent, such as gel or lotion. Anything used as a coupling agent must be highly conductive. Air is a very poor conductor of ultrasonic waves. www.med-fit.store...
-
Page 8: Intended Use
3. INTENDED USE CT1032 is a Portable Ultrasound and TENS combo device that generates deep ultrasonic waves within body tissues and TENS, transcutaneous electrical nerve stimulation, for the treatment of selected medical conditions such as symptomatic relief of chronic intractable pain, post-traumatic pain and post-surgical pain, muscle spasms, and joint contractures. -
Page 9: Presentation

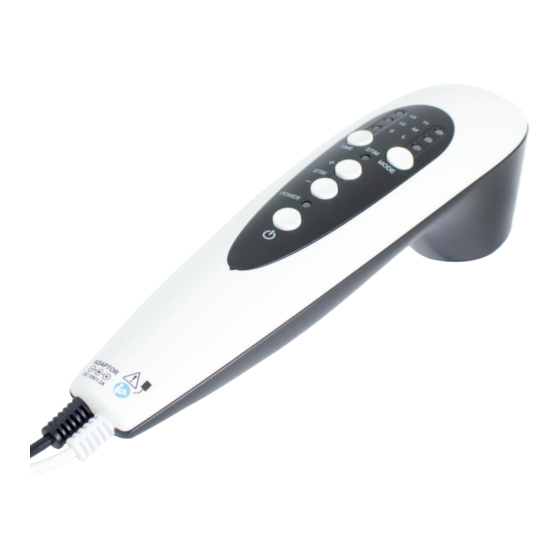

8. PWR LED: indicates power state 9. On/Off button: Power on or power off by pressing the button longtime 10. Adapter connection point 11. Lead wire and electrode pad connection point 12. Ultrasound Head / Applicator 13. Main body www.med-fit.store... -
Page 10: Installation
CT1032 are only valid if used in combination with this type of adapter we provide. CAUTION It is not permitted to connect CT1032 to any other type of adapter other than adapter we provide. CAUTION It is not permitted to connect CT1032 to any other type of adapter other than adapter we provide. -
Page 11: Operation
6.4 Therapy modes CT1032 offers 2 treatment modes: • Combination: Ultrasound + Electrical Stimulation therapy • Ultrasound: Ultrasound therapy 6.5 Disconnect from power adapter • Power off the unit by pressing power on/off button for a longtime. • Remove the power adapter from the wall outlet. - Page 12 7 .2 Operating the device 7.2.1 Ultrasound therapy 1. Apply Transmission Gel: Apply a layer of ultrasound transmission gel on the treatment area. The gel acts as a coupling substance and ensures effectiveness. The area treated should be two times the diameter of the treatment head. CAUTION Never apply the gel to the applicator.
- Page 13 6. Turn off the device: After the time duration has been completed, the device will automatically revert back to standby state. Once your therapy session has been completed, turn off the product by pressing the on/off button for a longtime. www.med-fit.store...
- Page 14 7.2.2 Combination therapy 1. Connect the lead wire and electrode pad to the unit as shown by the pictures at the right. • Plug the lead wire into the connection point attached to the device, • Connect the electrode pad with the lead wire. •...
- Page 15 (5, 10 and 15 minutes), as shown by the "TIME" indicators. When the time is chosen, the system will start working. During working time, the user can press the "TIME" button to adjust the treatment time. www.med-fit.store...
- Page 16 6. Adjust stimulation intensity Press the "+" button to increase the intensity of the stimulation. Press the "-" button to decrease the intensity of the stimulation. The STIM LED will flash every time the "+" or"-" button is pressed. Remark: There are two colors of Stirn LED for indicate the output intensity of stimulation.
- Page 17 The applicator is a precision instrument. Great care is taken in the development and production in order to obtain the best possible beam characteristics. Rough treatment (jarring or dropping) can adversely affect these characteristics, and must therefore be avoided. www.med-fit.store...
-
Page 18: Maintenance
7. Use of electrode pads larger than provided may reduce the effect of the stimulation. Use of an electrode pad that is much smaller than the electrode pad provided with CT1032 device may increase the chance of skin irritation or electrode burns occurring under the electrode pad. -
Page 19: Troubleshooting
Damaged or worn electrode or Replace with new electrode pad or lead wire lead wire Use with appropriate ultra- No contact medium sound gel Reposition electrode and Stimulation is ineffective Improper electrode and appli- cator placement applicator Contact clinician Unknown www.med-fit.store... -
Page 20: Specifications And Technical Data
10. SPECIFICATIONS AND TECHNICAL DATA 10.1 Technical data of Ultrasound Ultrasound Modulation Frequency 1MHz±10% Ultrasound power control (MODE) 3 intensity levels (L , M , H ) Output power 3W (L), 4W (M), 5W (H) Pulse repetition rate 100Hz±10% Pulse width l0ms Pulse duration 3ms-5ms... - Page 21 10. SPECIFICATIONS AND TECHNICAL DATA 10.3 Technical data of CT1032 main device Service of life 2 years Safety class Class II, BF-type Dimension 209mm (L) x 53mm (W) x 89mm (H) Weight 235g 10.4 Technical data of power supply Supply voltage...
-
Page 22: Storage
1. The warranty period for CT1032 products is one years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice. -
Page 23: Description Of Symbols
Date of manufacture The name and the address of the manufacturer Serial number. The name and the address of the Authorised EC-representative in Europe Consult the instructions for use for important cautionary information such as warnings and precautions Batch code www.med-fit.store... -
Page 24: Techniques Of Application
15. TECHNIQUES OF APPLICATIONS Treatment area The skin should be clean and dry before applying the coupling gel. The treatment area should be no more than twice the size of ultrasound transducer head. Transmission media (couplant) The higher the water conductive medium, the less the ultrasound energy is absorbed by the medium and the more energy is available to produce thermal effect. -
Page 25: Ultrasound Treatment Settings
If pain occurs, please stop use. Q: Are all skin types suitable for use with the Ultrasound Device? A: Yes. Ultrasonic therapy is suitable for all people and all skin types except for peoples and body parts of contraindications. www.med-fit.store... -
Page 26: Helpful Information
18. HELPFUL INFORMATION ON USING YOUR DEVICE How Does Ultrasound Therapy Work? Ultrasound therapy is another form of treatment to help ease the pain and stiffness of sore, injured and/or overworked muscles in addition to speed up healing. Ultrasound Therapy Units produce soundwaves that emanate treatment through ultrasonic vibrations to the troublesome area. -
Page 27: Possible Treatment Areas
19. POSSIBLE TREATMENT AREAS POWER POWER TIME MODE TIME MODE Shoulder Back POWER TIME MODE Knee Elbow POWER POWER TIME MODE TIME MODE Ankle Foot www.med-fit.store... -
Page 28: Important Information Regarding
Declaration - electromagnetic emission The CT1032 device is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the CT1032 device should assure that it is used in such an environment. Emission test Compliance... - Page 29 Guidance and manufacturer’s declaration – Electromagnetic immunity The CT1032 device is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the CT1032 device should assure that it is used in such an environment. Immunity test...
- Page 30 Guidance and manufacturer’s declaration – Electromagnetic interference immunity The CT1032 device is intended for use in. the electromagnetic environment specified below. The cus- tomer or the user of the CT1032 should assure that it is used in such an environment. Immunity test...
- Page 31 Table 4: Recommended Separation Distance Between Portable and Mobile RF Communications Equipment and the CT1032 Device The CT1032 device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the CT1032 device can help prevent...
- Page 32 This manual is valid for the Med-Fit Pro Ultrasound (CT1032). This user manual is published by Med-Fit UK Ltd. Med-Fit UK Ltd reserves the right to improve and amend it at any time without prior notice. Amendments will however be...
