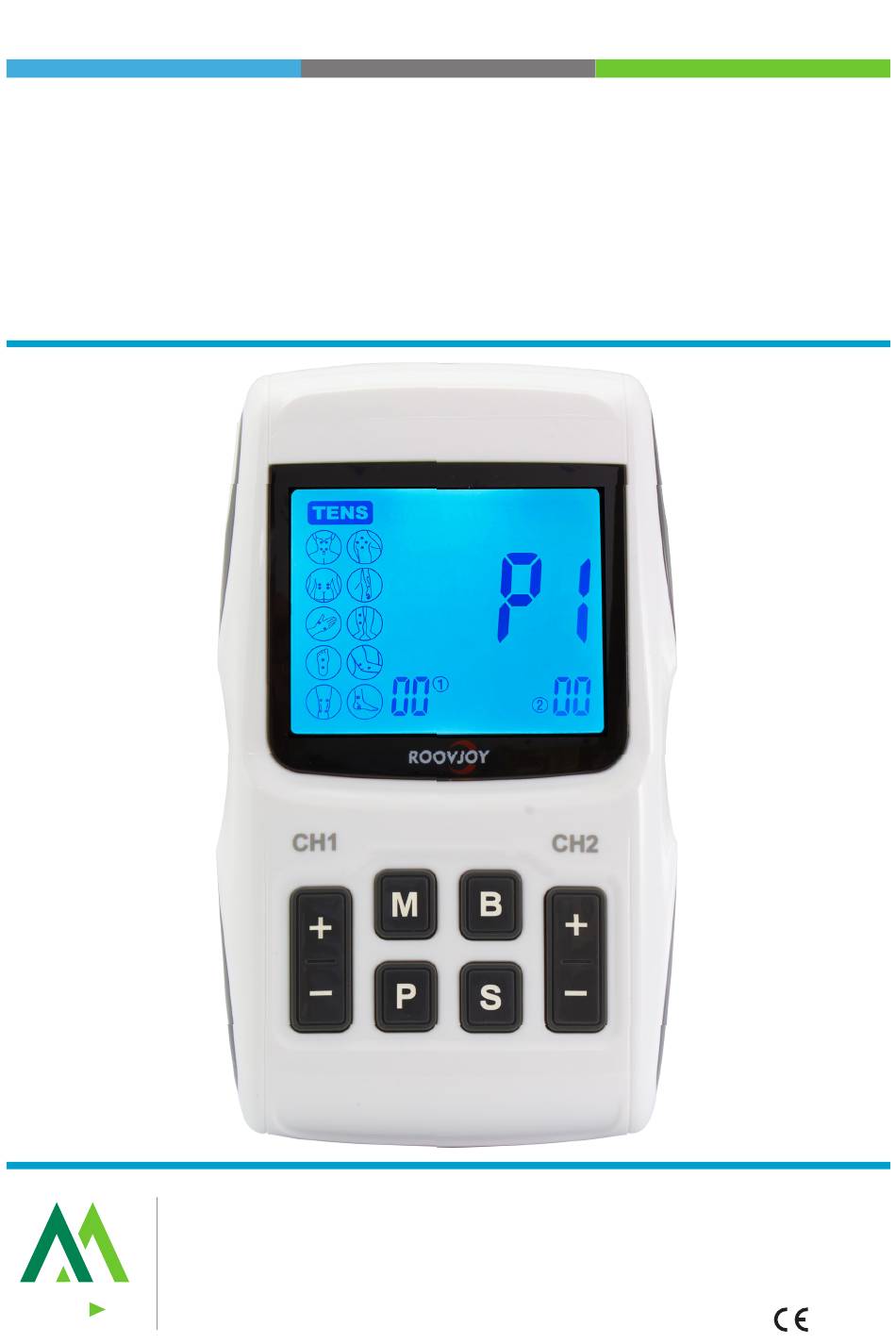

- Page 1 Med-Fit Pain Relief TENS Machine Muscle Stimulation Interferential ,TENS & EMS Interferential. Quick Start Guide Combo Electrotherapy Interferential, TENS and Muscle Stim Tel: 0161 429 7330 email sales@med-fit.co.uk 2460...
-
Page 2: Product Overview
Product Overview TENS RUSS memory 8 8 8 sec. 8 8 8 min. µs pause No Function description Treatment Mode EMS/Russ Work State Symbol Body Part Symbols EMS/RUSS Work Time Pulse Rate and Width SET Symbol Intensity Channel 1 Intensity Channel 2 Low Battery Symbol 10. - Page 3 Product Overview No Function description LCD Display Charging Port ON/OFF [M] Button - press the [M] button to select the treatment mode. [+] Button - press the [+] button to increase the intensity [-] Button - press the [-] button to decrease the intensity [P] Button - press the [P] button to select the treatment programme [S] Button - press the [-] button to enter the setting mode [B] Button - press the [B] button to select the treatment mode...
-
Page 4: Charging Your Device
Charging your device Before using your device When using your device for the first time, it is recommended that you place on charge for approximately 2 hours or until the charging light turns green. • Charging - Yellow light. • Full charge - Green light. •... - Page 5 How to Operate: Setting a preset programme (P1/P2) We recommend using these programmes before setting up a manual programme to help familiarise yourself with the device. Step 1 Press the [M] button to choose the required treatment mode. Step 2 Press the [B] button to choose a body part for treatment.
- Page 6 How to Operate: Setting a manual programme Step 1 TENS Mode: Press the [M] button to choose the required mode (TENS, EMS, RUSS or IF). Step 2 Press the [B] button to choose a body part for treatment. Step 3 Press the [P] button and select U1 (this is for manual adjustments).
- Page 7 How to Operate: TENS Manual Adjustment examples TENS TENS Follow Step 1, Step 2 and Step 3. The screen below will be as shown. 8 8 8 TENS TENS sec. 8 8 8 min. µs 8 8 8 sec. 8 8 8 min.
- Page 8 Treatment Programmes TENS Mode Mode Prog No Pulse Rate Hz Pluse Width µs Time Type 80-120 120-100 Modulation Neck 150-200 Modulation Continuous 80-100 Modulation Shoulder 220-260 Modulation Burst 10-60 Modulation Back 6-10 Modulation 100/2 150/250 Hans Continuous Burst Continuous Continuous Hand 2-10 Modulation...
- Page 9 Treatment Programmes EMS Mode Mode Prog No Pulse Rate Hz Pluse Width µs Time Type Synchronous Neck Synchronous Synchronous Synchronous Shoulder Synchronous Synchronous Synchronous Back Synchronous Synchronous Synchronous Synchronous Synchronous Synchronous Hand Synchronous Synchronous Synchronous Synchronous Synchronous Synchronous Foot Synchronous Synchronous EMC: The U1 program allows you to adjust the frequency from 20Hz to 125Hz, the pulse width from 50µs to 380µs, the treatment time from 5 minutes to 90 minutes, the ramp-up time from 1 to 9 seconds, and...
- Page 10 Treatment Programmes RUSS Mode Mode Prog No Pulse Rate Hz Pluse Width µs Time Type Synchronous Neck Synchronous Synchronous Synchronous Shoulder Synchronous Synchronous Synchronous Back Synchronous Synchronous Synchronous RUSS Synchronous Synchronous Synchronous Hand Synchronous Synchronous Synchronous Synchronous Synchronous Synchronous Foot Synchronous Synchronous RUSS: In the U1 program, the frequency can be adjusted from 20Hz to 125Hz.
- Page 11 Treatment Programmes IF Mode Mode Prog No Pulse Rate Hz Pluse Width µs Time Type 1-100 Modulation Neck 1-100 Modulation 1-100 Modulation 50-150 Modulation Shoulder 50-150 Modulation 50-150 Modulation 1-50 Modulation Back 1-50 Modulation 1-50 Modulation 1-20 Modulation 1-20 Modulation 1-20 Modulation 1-20...
- Page 12 Med-Fit UK Ltd. Unit 8 Martel Court, S. Park Business Park, Hamilton Road, Stockport, SK1 2AF Telephone: 0161 429 7330 Email: sales@med-fit.co.uk | www.tensmachineuk.com Company registration number 08758741 | Vat registration number 308286105...
