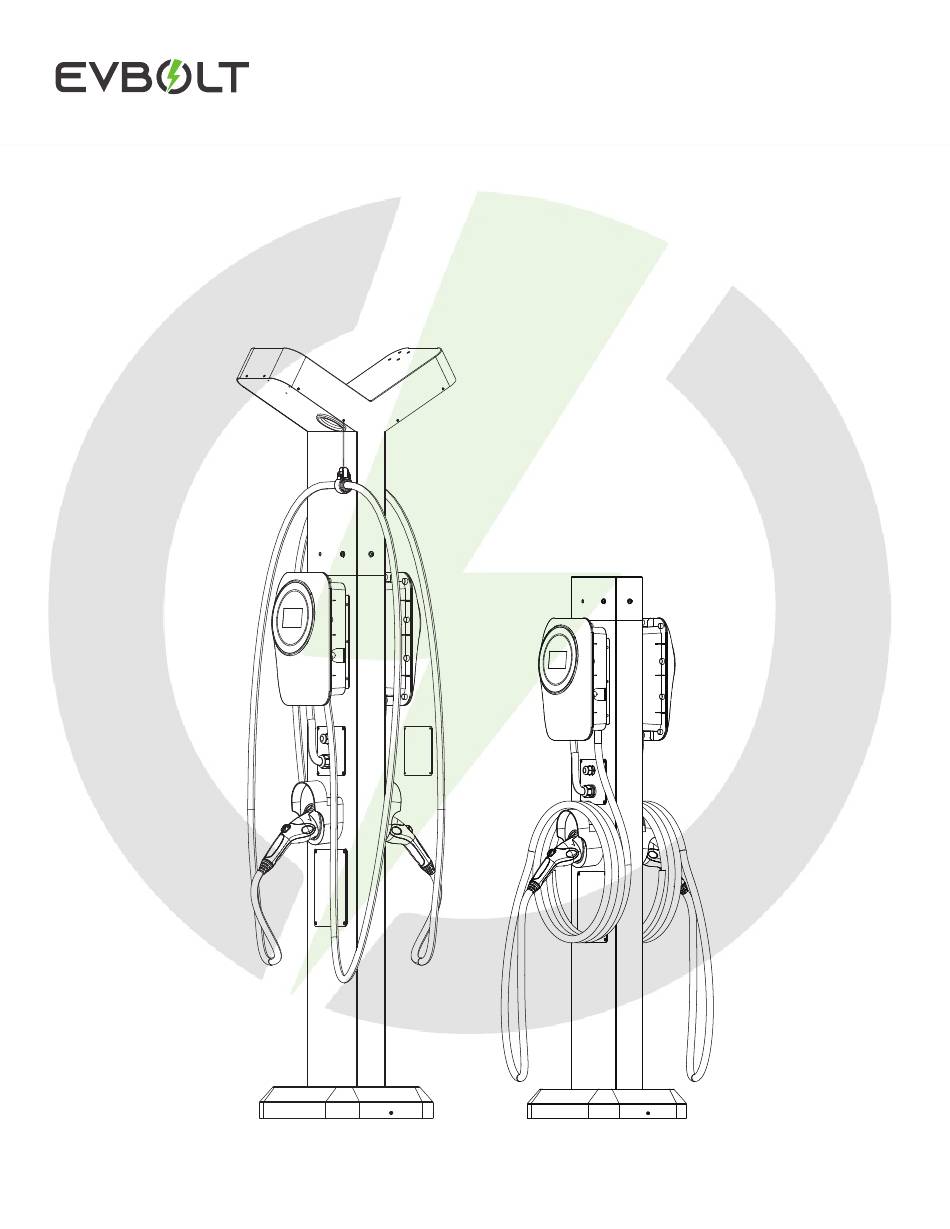

- Page 1 Electric vehicle AC Charger DYNO Pedestal Installation Manual Intellectual property of EVBOLT, Inc.
-
Page 2: Table Of Contents
Table of Contents Packing List ................................1 Dimensions ................................2 Building a Concrete Pad ............................3 Installing the Pedestal ............................... 4 Installing the Charger ............................... 5 Slinger Ring Installation ............................6 Intellectual property of EVBOLT, Inc. -
Page 3: Packing List
1. Packing List Product Name Notes Cable Management Dyno Pedestal Accessories Installation Manual Anchor Bolts M10*100 M5*12 Wrench Anti-Theft Bolt Wrench Intellectual property of EVBOLT, Inc. Page 1 of 6... -
Page 4: Dimensions
2. Dimensions Primary Unit: mm 250(9.84 ") 631.4(24.86 ") ") 456(17.95 ") 250(9.84 ") 100(3.94 Intellectual property of EVBOLT, Inc. Page 2 of 6... -
Page 5: Building A Concrete Pad
Draw one cable (two cables for dual chargers) from the center Pre-embedded Ø3.15" PVC pipe in concrete D rill 6 holes in the concrete pier (6-Ø0.55") D rive the anchor bolts into the concrete pier Intellectual property of EVBOLT, Inc. Page 3 of 6... -
Page 6: Installing The Pedestal
Align the screw holes of the pedestal with the ones in the concrete pier Tighten the bolts to ensure proper installation Place the base cover and secure with 2 screws Install Cable Management and secure using 6 screws Intellectual property of EVBOLT, Inc. Page 4 of 6... -
Page 7: Installing The Charger
Backboard Charger Assemble the backplate on the pedestal Install the charging equipment as explained Holder Pull down the slinger ring Assemble the wire in cable management, clamp clips at suitable length Intellectual property of EVBOLT, Inc. Page 5 of 6... -
Page 8: Slinger Ring Installation
6. Slinger Ring Installation 1.Disassemble and put the cable inside the ring. Intellectual property of EVBOLT, Inc. Page 6 of 6... - Page 9 © 2023 EVBOLT INC. All Rights Reserved.
