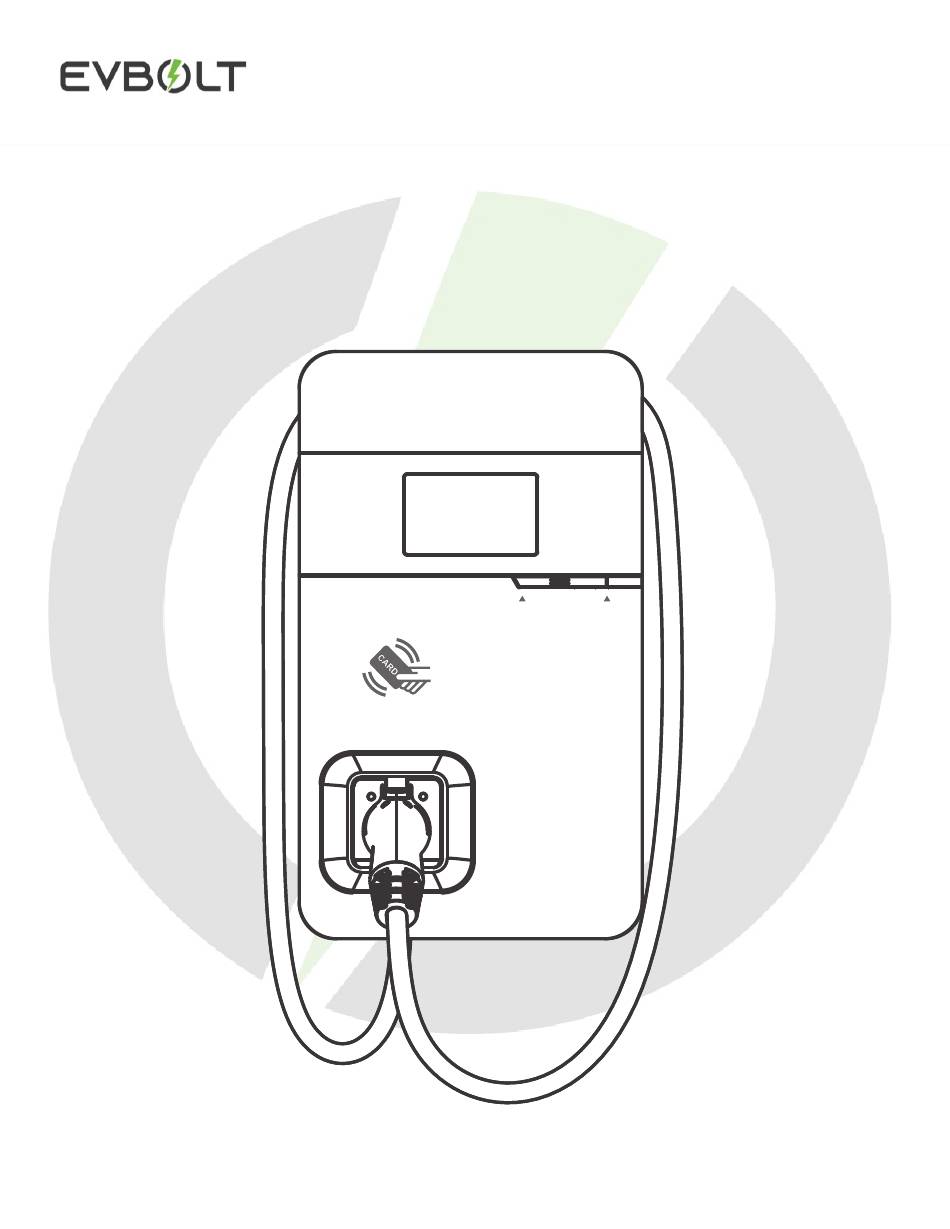

- Page 1 Electric Vehicle AC Charger PRESTIGE 11 – User Manual EVB-AC-PAX11 Push Start Intellectual property of EVBOLT, Inc...
-
Page 2: Table Of Contents
Wall-Mount Bracket Installation Requirements ....................21 PRESTIGE Installation Requirements ........................22 Installation Steps ..............................22 Operating Instructions ............................... 28 Operating Steps (ONLINE) ..........................28 10.1 EVBOLT iOS/Android Application ......................28 10.1.1 EVBOLT WebApp ............................28 10.1.2 Operating Steps (OFFLINE) ..........................29 10.2 Error and Warning Message .......................... -
Page 3: Important Safety Instructions
• Risk of electric shock. Do not remove the cover or attempt to open the enclosure of this device. There are no user-serviceable parts inside. Contact a qualified service company if you require any service repairs. Intellectual property of EVBOLT, Inc Page 1 of 34... - Page 4 • This device should be supervised when used around children. • Do not put fingers into the electric vehicle connector. • The device is not to be lifted or carried by either the flexible cord or the EV cable. Intellectual property of EVBOLT, Inc Page 2 of 34...
-
Page 5: Federal Communication Commission Interference Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Intellectual property of EVBOLT, Inc Page 3 of 34... -
Page 6: Industry Canada Statement
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas Intellectual property of EVBOLT, Inc Page 4 of 34... - Page 7 IC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada. Intellectual property of EVBOLT, Inc Page 5 of 34...
-
Page 8: Interface
Interface Faceplate 5” LCD Screen LED Light Indication Push Start SAE J1772 AC Charging Connector Wall-Mount Bracket with Power Box AC Power Inlet Charging Cable Inlet Intellectual property of EVBOLT, Inc Page 6 of 34... -
Page 9: Bottom Case And Wire Box
Bottom Case and Wire Box Blade Male connector Power and Grounding Setting For 4G SIM Card Network and setting Port Ethernet Inlet AC Inlet Blade Female Connector AC Inlet Hole Ethernet Inlet Hole Intellectual property of EVBOLT, Inc Page 7 of 34... -
Page 10: Dimensions
Dimensions Main Size of Charger 11.6" 6.2" Push Start Wall-Mount Bracket 10.4" 1.96" 3.4" 14.56" 13.29" 10.15" 7.79" 6.45" 1.65" Intellectual property of EVBOLT, Inc Page 8 of 34... -
Page 11: Specifications
Wall Mount, Pedestal Mount ≤ 6562 ft (≤ 2000 meters) Altitude Weight <15.43lbs (7kg) with Socket; <22lbs (10kg) With Cable Dimensions 11.61in x 6.22in x 19.88in (295mm x 158mm x 505mm) *1 4G Version Intellectual property of EVBOLT, Inc Page 9 of 34... -
Page 12: Status Description Of The Charger Indication Lights
Authorize RFID authorization Pass Flicker (3 Sec) Authorize RFID authorization Fail Flicker (3 Sec) Handshaking Constantly Bright Charging Flicker Terminate Constantly Bright Complete Constantly Bright Maintenance Upgrade Flicker (Yellow) Reservation Flicker Intellectual property of EVBOLT, Inc Page 10 of 34... -
Page 13: Screen Instructions
011010 output relay driving fault 011021 Wi-Fi module broken 011036 Rotary switch fault 012200 System input OVP 012203 System input UVP 012212 System input drop 012216 System output OCP Intellectual property of EVBOLT, Inc Page 11 of 34... - Page 14 Meter IC communication timeout 012345 Pilot negative error 013607 CSU firmware update fail 013622 Disconnected from Internet through Ethernet 013623 Disconnected from Internet through Wi-Fi 013625 Disconnected from AP through Wi-Fi 023703 Pilot fault Intellectual property of EVBOLT, Inc Page 12 of 34...
-
Page 15: Installation Instructions
Report unsafe activities immediately to supervisors or the responsible person in control of the workplace, and o Report all accidents and dangerous occurrences to the supervisor immediately after they happen Intellectual property of EVBOLT, Inc Page 13 of 34... - Page 16 • Set up cooling equipment, such as exhaust fans • Make water dispensers available • Provide suitable protective clothing such as hat, sunglasses and long sleeves to protect workers from heat stroke and UV rays Intellectual property of EVBOLT, Inc Page 14 of 34...
- Page 17 • Fully open stepladders when in use • Do not overreach when working on a ladder • Beware of overload restrictions Country Standards ANSI A 14.1, ANSI A 14.2, ANSI A 14.5 Canada CSA Z11 M81 Intellectual property of EVBOLT, Inc Page 15 of 34...
- Page 18 • Live electrical work permit (input terminals with HV after door open) • Use personal protective equipment (PPE) • Safe workplace conditions and space • Adhere to other occupational health, safety and security codes, such as those published by OSHA Intellectual property of EVBOLT, Inc Page 16 of 34...
-
Page 19: Safety Requirements
In residential power supplies, check the bond between ground and neutral at the main panel. If connected to a step- down transformer, contact the transformer's manufacturer for direction on how to bond the ground connection. Dip switch Rotary switch Intellectual property of EVBOLT, Inc Page 17 of 34... -
Page 20: Power Grid Connection And Grounding Type
*Note 1: The default value in North America is (LL / TT-TN). *Note 2: If it is not the above standard grid type, please contact our technical staff for assistance and confirmation. Intellectual property of EVBOLT, Inc Page 18 of 34... - Page 21 Use a non-conductive object to set the rotary switch. Switch Setting Number Maximum Output Test Current Mode Switch Setting Number Maximum Output Invalid Invalid Slave Current Setting Setting Mode * Note 1: The default is 48A. Intellectual property of EVBOLT, Inc Page 19 of 34...
-
Page 22: Packing List
Packing List Electric Vehicle AC Charger PRESTIGE 11 – User Manual Product Certification EVB-AC-PAX11 Date of inspection Inspector Push Start Intellectual property of EVBOLT, Inc Product Name Notes AC Charger (With Charging Cable) Wall-Mount Bracket & Inlet Box User Manual... -
Page 23: Tools And Materials Required
When installing on a wooden wall, you can directly use the included M5 self-tapping screws to install the wall- mount bracket and use the wall- mount backplane to lock and install on the wall directly. Intellectual property of EVBOLT, Inc Page 21 of 34... -
Page 24: Prestige Installation Requirements
-65dBm. If it is lower than this value, it may result in a weak Wi-Fi or 4G connection or disconnection due to external interference in the area. Intellectual property of EVBOLT, Inc Page 22 of 34... - Page 25 4 sets of expansion bolts (M5X40mm) into the wall, as shown in the figure. Install the wall-mounted metal plate on the cement wall. Intellectual property of EVBOLT, Inc Page 23 of 34...
- Page 26 40kg-cm. Please refer to label on the wire box for the correct positions, where the positions are L1/L, GND/PE, and L2/N, respectively, from the left to the right. L/L1 G/PE N/L2 Intellectual property of EVBOLT, Inc Page 24 of 34...
- Page 27 Setting of the power supply type and grounding type There are different settings depending on the LAN and the country where the machine is installed. Please refer to Section 9.3 "Power Grid Connection and Grounding Type" for details. Intellectual property of EVBOLT, Inc Page 25 of 34...
- Page 28 SIM cards with passwords. STEP 7 Installation of the charger First, connect the network cable to the charger. NOTE! The network cable needs to be connected to the correct socket. Intellectual property of EVBOLT, Inc Page 26 of 34...
- Page 29 Finally, tighten with the M6 plum screws in the order left - right - bottom, with a tightening torque of 30 kg-cm. Intellectual property of EVBOLT, Inc Page 27 of 34...
-
Page 30: Operating Instructions
Operating Steps (ONLINE) For commercial purposes, this product can be connected to internet via Wi-Fi or 4G LTE. This is the case for Public and Semi-Public chargers. The chargers can be accessed using EVBOLT Application or WebApp. 10.1.1 EVBOLT iOS/Android Application... -
Page 31: Operating Steps (Offline)
SLEEP YELLOW when the machine enters sleep mode. Press the button to wake up the charger. Push Start RFID Authorization (Internet Edition)- Green Light Flashing The green light flashes after RFID is authorized. Push Start Intellectual property of EVBOLT, Inc Page 29 of 34... - Page 32 The CHARGE light flashes while charging. Fault - Red Light The red light is lit when a fault occurs. Please refer to "10.3 Error and Warning Messages" for detailed information Push Start Intellectual property of EVBOLT, Inc Page 30 of 34...
-
Page 33: Error And Warning Message
Relay Self-Test Fail Constantly Bright Contact Customer Service RCD Abnormal Constantly Bright Contact Customer Service*3 Stop Charging*2 Output OCP Constantly Bright Contact Customer Service*3 Stop Charging*2 Constantly Bright Contact Customer Service Stop Charging Intellectual property of EVBOLT, Inc Page 31 of 34... - Page 34 *2 Withdrawing and plugging back in the charging gun can exit this stop-charging mode. *3 If this stop-charging mode is frequently triggered, please contact customer service for technical solutions. Intellectual property of EVBOLT, Inc Page 32 of 34...
-
Page 35: Maintenance And Repair
• Do not place external objects or heavy objects on the charger, in order to avoid danger. 11.2 Maintenance Spares • This product is covered by a two-year parts warranty. If you have a technical issue, contact our technical support representative at our helpline. Intellectual property of EVBOLT, Inc Page 33 of 34... -
Page 36: Warranty And Maintenance
Malfunction and damage caused by improper use of the equipment, such as water or other solutions entering into the equipment. o Malfunction and damage caused by the mains power supply and voltage which is not specified for use with the charger equipment. Intellectual property of EVBOLT, Inc Page 34 of 34... - Page 37 © 2022 EVBOLT INC. All Rights Reserved. Intellectual property of EVBOLT, Inc...
