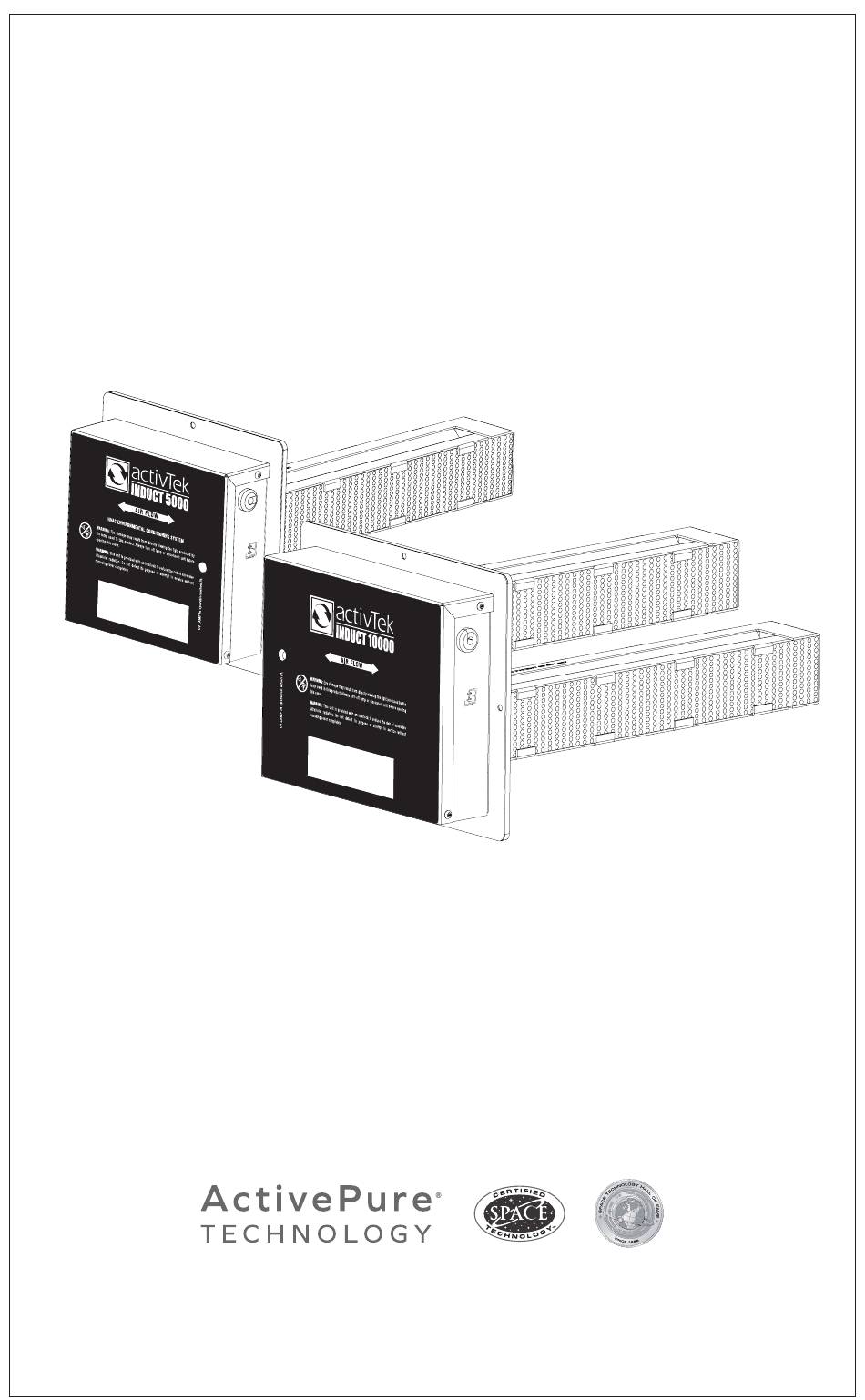

- Page 1 INDUCT 5000 & INDUCT 10000 Duct Mounted Surface & Air Purification System READ MANUAL CAREFULLY FOR PROPER USE AND OPERATION...
-
Page 2: Table Of Contents
Changing the ActivePure® Cell . . . . . . . . . . . . . . . . . . -
Page 3: Important Safety Instructions
• Do not use this unit with an extension cord PRODUCT CONTENTS CAUTION: When the unit is installed in a roof mounted HVAC system, the unit must be protected from the elements . Removable Ballast Cover ActivePure® Cell Relay Port Ballast Plate ActivePure® Removable Ballast Cover Cell... -
Page 4: Installation Hardware
(4) Thumb Nuts Item #36-00213 Item #36-00214 REPLACEMENT PARTS activTek INDUCT 5000 activTek INDUCT 10000 INDUCT 5000/10000 Ballast Plate Ozone free ActivePure® Cell Ballast Item # US71089 Removable Cover Ozone ActivePure® Cell ActivePure® Item # US70955 Cell (Not available in California) -
Page 5: Installation Requirements
AC unit through three full heating cycles assuring that the temperature never exceeds 200º F (93º C) . The ActivePure® Cell must not exceed 200º F (93º C) . Unit should be installed after the air handler in the HVAC system . -
Page 6: Fiberglass Ductwork Installation
INSTALLING THE UNIT Find the optimal position downstream from the air handler . Ensure location in duct has enough room for the mounting plate . NOTE: The illustrations are shown installing an activTek INDUCT 10000 . The procedures shown in this manual apply to both units, unless otherwise indicated . -
Page 7: Maintenance/Uv Lamp Indicator
MAINTENANCE/UV LAMP INDICATOR Your activTek INDUCT 5000/10000 unit requires no periodic maintenance beyond normal replacement of the ActivePure® Cell every year . UV bulb has an effective life of 9,000 hours . NOTE: For optimal performance, we recommend the replacement of the ActivePure®... -
Page 8: Changing The Activepure® Cell
Remove the activTek INDUCT ballast assembly by removing the four (4) thumb screws and sliding the unit out . Remove the thumb screws on either side of the ActivePure ® Cell to remove the cell from the ballast assembly . -
Page 9: Replacing The Ballast
Disconnect power at the breaker or fuse panel before servicing unit . CAUTION: Never attempt to check operation of the ActivePure® Cell(s) by direct observation . Severe eye damage can result . Use the indicator lamps on the bottom of the ballast only . - Page 10 REPLACING THE BALLAST (continued) UPPER (3 terminals) To reconnect wiring, insert wire into the • Black power wire in BLACK corresponding color connector . Gently pull back after • White power wire in WHITE inserting wire to ensure the wire is properly locked •...
-
Page 11: Warranty Information
LIMITATION OF LIABILITY FOR SPECIAL, INCIDENTAL, date of purchase . OR CONSEQUENTIAL DAMAGES • ActivePure Cell and Lamp within one (1) year of date WE SHALL NOT IN ANY CASE BE LIABLE FOR SPECIAL, of purchase if the INDUCT 5000 or INDUCT 10000 is... - Page 12 FCC DECLARATION OF This equipment has been tested and found CONFORMITY to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Name: activTek INDUCT 5000/10000 Rules . These limits are designed to provide Model: Induct 5000 - A1024E reasonable protection against harmful...
