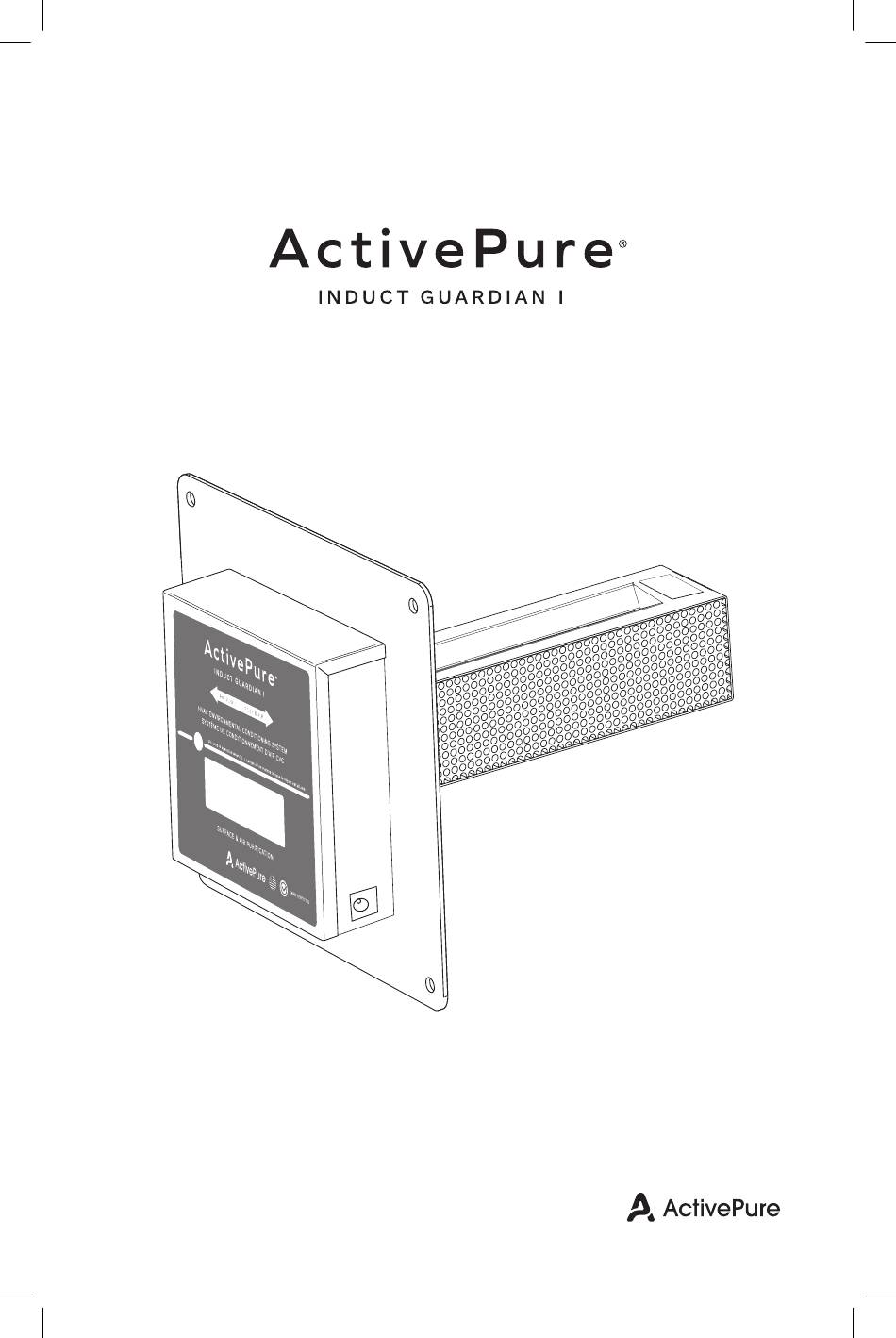

  • Page 1 READ MANUAL CAREFULLY FOR PROPER USE AND OPTIMAL OPERATION.

  • Page 2: Table Of Contents

    GENERAL INFORMATION PRODUCT OVERVIEW Congratulations on your purchase of the ActivePure Induct Guardian I! The unit is easily mounted into ® the supply side of air conditioning and heating system air ducts by an electrician or HVAC professional, where it will provide continuous and automated, surface and air disinfection. Please read and follow all service procedures outlined in this manual before installing or performing maintenance.

  • Page 3: Important Safety Instructions

    Item #US70680 (4) #6 - 32 Toggle bolt wall anchors (2) Thumb screws (2) Thumb nuts Item # US70682 Item #36-00213 Item #36-00214 REPLACEMENT PARTS • Ozone-Free ActivePure Cell ® (Includes UV Bulb) ActivePure Cell ® Item # 9950231 • Ballast...

  • Page 4: Recommended Installation Tools

    15 ft. When installing near a furnace or heating coils, run Fiberglass Ductwork the heating system through five (5) full heating cycles to ensure the temperature of the ActivePure Induct ® Air Handle Guardian I unit does not exceed 200˚F.

  • Page 5: Metal Ductwork Installation

    8. Insert unit into opening. 9. Secure the unit to the Be sure the air will pass mounting plate with (4) thumb though the ActivePure ® nuts. Cell honeycomb matrix. NOTE: Unit requires continuous power. Do not install where power to the unit will be cycled on and off.

  • Page 6: Fiberglass Ductwork Installation

    FIBERGLASS DUCTWORK INSTALLATION Power Connection Requirements: This device is designed to operate using a 24 VAC, 40Va transformer. Transformers supplied with a straight cooling or HVAC system may be used to power the device but must be verified it’s capable of handling the additional device load before installation. If the system transformer is not capable of handing the extra load, a separate 24 VAC, 40Va WARNING transformer MUST be used.
  • Page 7 Tighten toggle bolts - DO NOT OVERTIGHTEN. 9. Insert unit into opening. Be sure the air 10. Secure the unit to the mounting plate will pass through the ActivePure Cell with four (4) thumb nuts. ®...

  • Page 8: Maintenance/Uv Lamp Indicator

    MAINTENANCE/UV LAMP INDICATOR Your ActivePure Induct Guardian I unit requires no periodic UV Lamp Operation Indicator ® maintenance beyond normal replacement of the ActivePure Cell ® every one (1) year. The UV lamp operation indicator on the face of the unit will glow when the UV lamp is in use.

  • Page 9: Replacing The Ballast

    REPLACING THE BALLAST • UV Light in operation; disconnect unit from power cord before servicing; failure to follow warnings may result in severe eye damage • Disconnect power at the breaker or fuse panel before servicing unit; always follow OSHA lockout procedures to prevent accidental exposure to electrical energy WARNING Power...
  • Page 10 REPLACING THE BALLAST (CONTINUED) 6. To reconnect wiring, insert wire into wire pocket in ballast until bottomed. Gently pull wire to ensure it is properly locked into place. LED INDICATOR 7. Replace cover and secure with the original 8. Re-install unit if removed from duct. Reconnect four (4) screws.

  • Page 11: Troubleshooting Guide

    • Multimeter • Small Flat Head Screwdriver • Flashlight 1. Check the incoming voltage by unplugging the power cord from the side of the ActivePure Induct ® Guardian I and placing one probe on the outside of the plug and the other on the inside of the plug.
  • Page 12 UV lamp pins that are closest to each other. The Multimeter should beep if the filaments are not broken. Resistance can also be checked if continuity is not available on the Multimeter. Resistance should be between 3-5 ohms. If continuity or resistance check is bad, replace the ActivePure Cell.
  • Page 13 (Includes UV Bulb) Item # 9950231 • Ballast Item # 9950102 Base Unit • Power Cord Item # 9950103 To order replacement parts, contact your sales representative or ActivePure ® Customer Service for further assistance at 800.572.1446 or email customerservice@ActivePure.com.

  • Page 14: Warranty Information

    FROM BREACH OF EXPRESSED OR IMPLIED WARRANTIES, of the time. CONDITIONS, GUARANTEES OR REPRESENTATIONS, • If the Induct Guardian I is connected to the fan circuit BREACH OF CONTRACT, NEGLIGENCE OR ANY OTHER where the ActivePure Cell cycles “ON and OFF” with LEGAL THEORY.

  • Page 15: Fcc Declaration Of Conformity

    FCC DECLARATION OF CONFORMITY This equipment has been tested and found to comply with a Class B digital device, Name: ActivePure Induct Guardian I ® pursuant of Part 15 of the FCC Rules These limits are designed to provide reasonable...
  • Page 16 For information regarding the use of this product please call Customer Service. 1.800.572.1446 or email at customerservice@ActivePure.com www.activepure.com ActivePure Manufacturing, LLC Bristol, VA 24201 800.572.1446 © ActivePure Manufacturing. All Rights Reserved.
