samet smart slide single Quick Installation Instructions page 3

- DO -
9

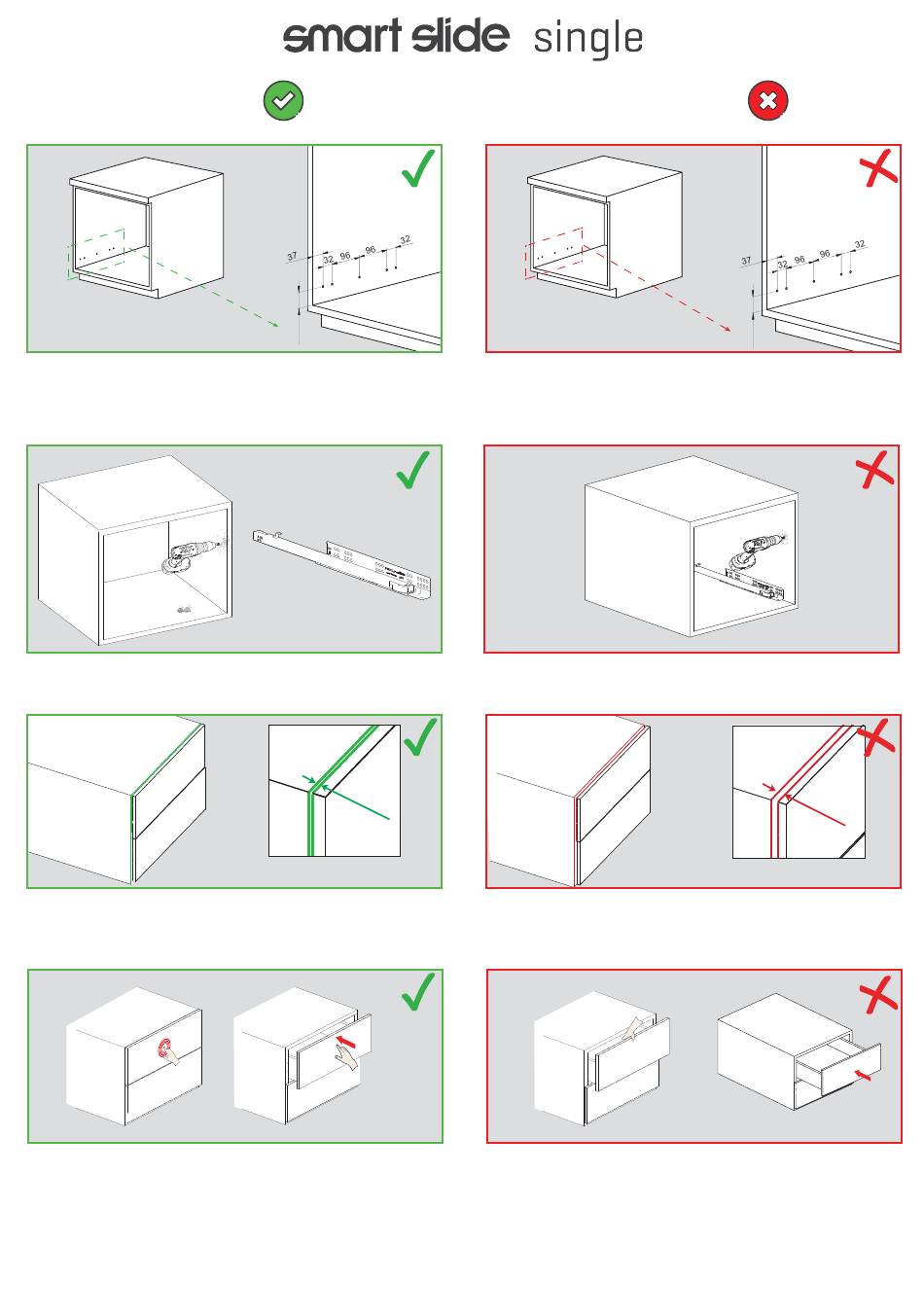

The lower drawer should be installed a minimum of
34 mm (1-20/32") up from the cabinet bottom panel
for soft close version.
10
Make sure there is no sawdust or wood chips inside
the slides.
11
Drawer front gap should be a minimum of 2.5 mm on
Smart Slide Single push-open models to ensure proper
functionality.
1.
12
1. Push on the drawer front panel of the drawer to open it.
2. To close the drawer, gently push the drawer front panel of
the drawer all the way to lock the push – open mechanism.
X ≥ 34
X
≥
2,5 mm
X
2.
The lower drawer should not be installed lower than
34 mm (1-20/32") up from the cabinet bottom panel
for soft close version.
There should not be any sawdust or wood chips inside
the slides.
X
Drawer front gap should not be less than 2.5 mm on
Smart Slide Single push-open drawer models to ensure
proper functionality.
1.
Push-Open
1. Do not pull out the drawer without activating the
push – open mechanism.
2. Do not slam the drawer to close by itself.
- DON'T -
X < 34
X
X < 2,5 mm
2.
X
Push-Open
